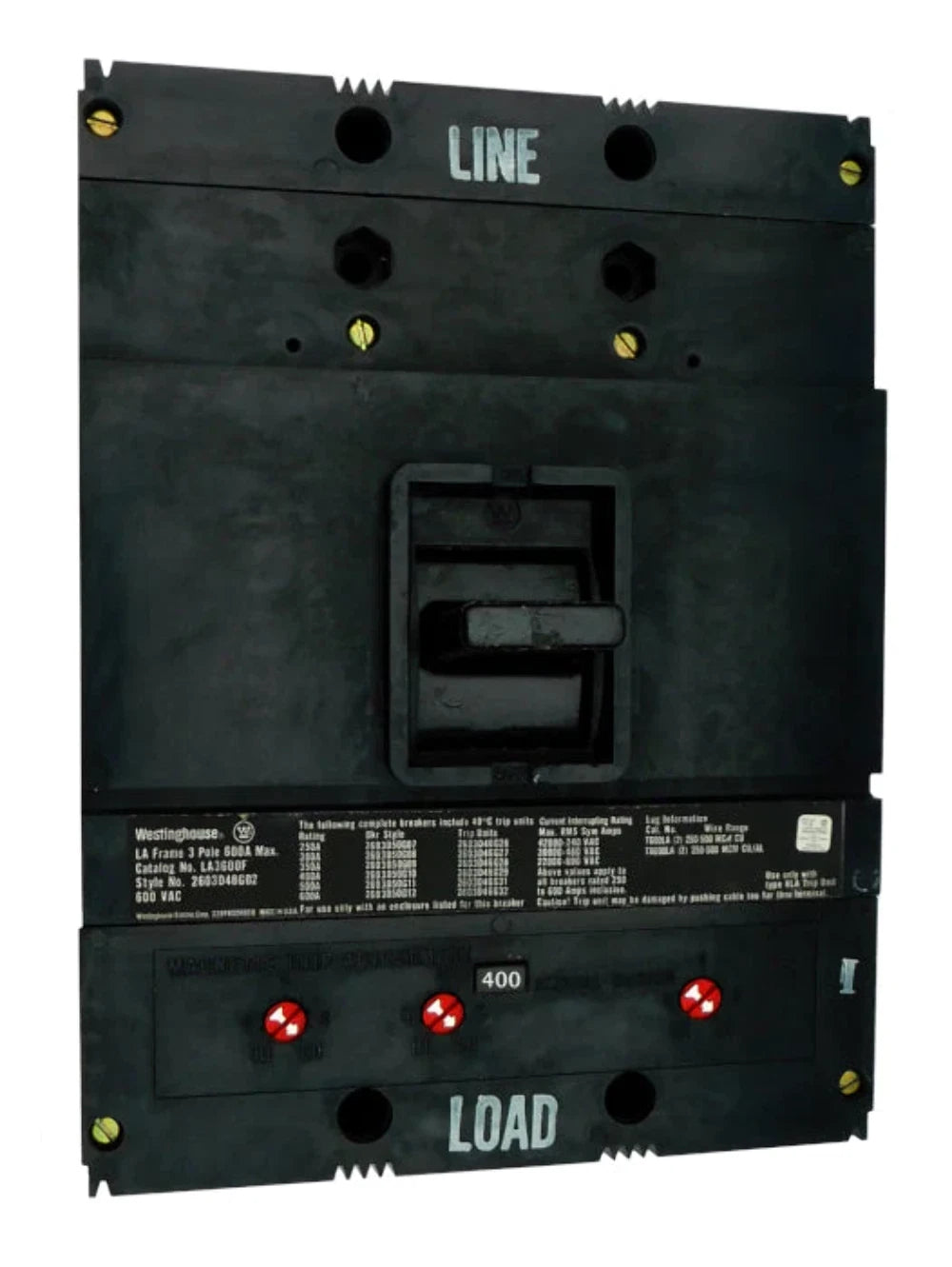

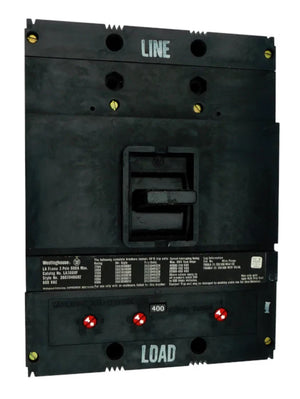

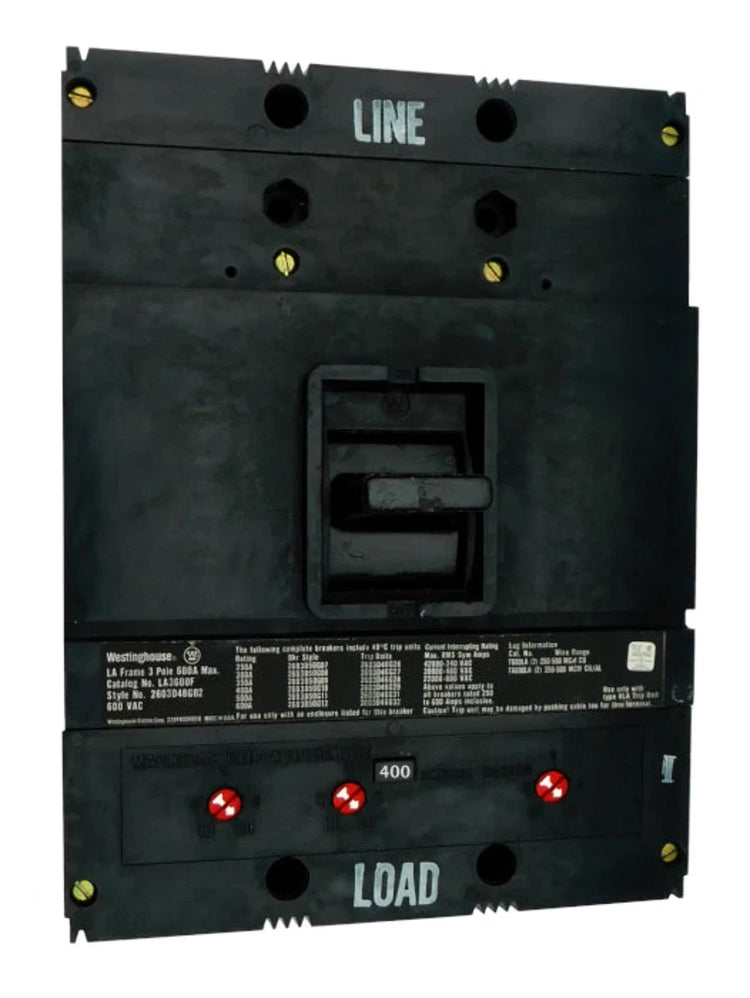

Westinghouse LA3600F Molded Case Circuit Breaker Frame 600 Ampere 3 Pole 600 Volt AC
- Regular price
- $3,468.00
- Sale price
- $3,468.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LA3600F
Description
The Westinghouse LA3600F is a molded case circuit breaker frame designed for high-capacity protection in industrial electrical distribution systems. Rated for 600 ampere continuous current and 600 volts alternating current, it provides a durable platform for magnetic trip configurations. This breaker frame is used in applications requiring reliable overcurrent protection with flexible trip unit integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Westinghouse |
| Category | Circuit Breaker |
| Part Number | LA3600F |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded Case Circuit Breaker Frame |
| Rated Current | 600 Ampere Continuous |
| Voltage Rating | 600 VAC |
| Poles | 3 |
| Phase | 3 Phase |
| Trip Type | Magnetic Trip |
| Magnetic Trip Range | 3000 to 6000 Ampere |
| Configuration | Frame Only |
| Mounting Type | Panel Mount |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 22.00 lbs |
Information About LA3600F
The LA3600F is a Westinghouse molded case circuit breaker from the LA series, engineered for heavy-duty industrial and commercial power systems. It features a three-pole configuration and is designed as a frame-only unit, allowing users to install compatible trip components based on system requirements. With a magnetic trip range of 3000 to 6000 amperes, it provides fast response to short circuit conditions while supporting high continuous load currents. Although discontinued by the manufacturer, it remains widely used in legacy systems and retrofit installations where dependable circuit protection is required.
Key Features:
- High Current Capacity: Rated for 600 ampere continuous operation in demanding power systems.
- Three-Pole Configuration: Designed for three-phase electrical distribution applications.
- Magnetic Trip Range: Instantaneous trip range from 3000 to 6000 amperes for fault protection.
- Frame-Only Design: Supplied without internal trip unit, allowing customized configuration.
- 600 Volt Rating: Suitable for high-voltage alternating current systems up to 600 volts.
- Molded Case Construction: Provides durable insulation and protection in industrial environments.
- Discontinued Model Support: Commonly used in maintenance and retrofit applications for legacy equipment.
- Panel Mount Compatibility: Designed for integration into switchboards and distribution panels.
The LA3600F delivers the reliability and precision required for high-capacity circuit protection in industrial and commercial power distribution systems.
