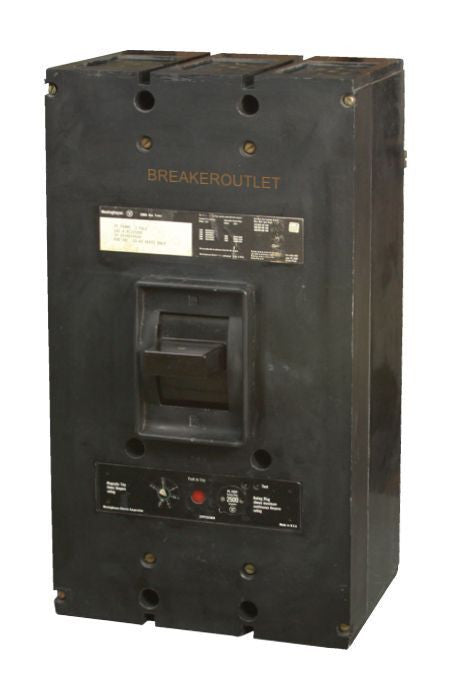

Westinghouse PC32000F 2000A 3 Pole Molded Case Circuit Breaker Frame Only 600VAC 100kAIC
- Regular price
- $8,522.00
- Sale price
- $8,522.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PC32000F
Description
The Westinghouse PC32000F is a high-capacity molded case circuit breaker frame designed for industrial power distribution systems. This 2000 amp, 3-pole unit provides robust circuit protection and is engineered for use in high-voltage applications up to 600 VAC. Built as a frame-only configuration, the Westinghouse PC32000F supports customizable trip components for flexible system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Westinghouse |
| Category | Circuit Breaker |
| Part Number | PC32000F |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded Case Circuit Breaker Frame |
| Series | Type PC |
| Current Rating | 2000 Amp |
| Poles | 3 Pole |
| Voltage Rating | 600 VAC Max |
| Interrupting Capacity | 100kAIC @ 600V |
| Mounting Type | Panel Mount |
| Design | Frame Only (No Trip Unit) |
| Status | Discontinued by Manufacturer |
| Application | Industrial power distribution systems |
| Weight | 116.00 lbs |
Information About PC32000F
The PC32000F is part of Westinghouse’s Type PC series of molded case circuit breakers, designed for heavy-duty electrical protection in large-scale industrial environments. It features a frame-only designation, meaning it does not include a trip unit or rating plug, allowing users to configure protection settings based on specific system requirements. Rated for 2000 amperes and capable of handling up to 100kA interrupting capacity at 600 VAC, it is suited for high fault-current applications. The breaker is typically panel-mounted and integrates into switchgear or distribution systems requiring reliable, high-performance protection. Its durable construction and compatibility with OEM components make it suitable for both new installations and system upgrades.
Key Features:
- High Ampere Capacity: Rated for 2000 amps to support large industrial power distribution systems
- 3-Pole Configuration: Provides protection across three phases in commercial and industrial applications
- High Interrupting Rating: 100kAIC at 600 VAC for handling high fault current conditions
- Frame Only Design: Allows installation of compatible trip units and rating plugs for customized protection
- Type PC Series Construction: Built for heavy-duty performance in demanding electrical environments
- Panel Mount Compatibility: Designed for integration into switchboards and distribution panels
- Discontinued Model: Available through surplus channels for maintenance and legacy system support
The PC32000F delivers the reliability and precision required for high-capacity circuit protection in industrial electrical distribution systems.
