WGVL+AVKX24-MFT | Belimo Warren Globe Valve Linkage With Electronic Fail Safe Actuator
- Regular price
- $1,380.00
- Sale price
- $1,380.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WGVL+AVKX24-MFT
Description

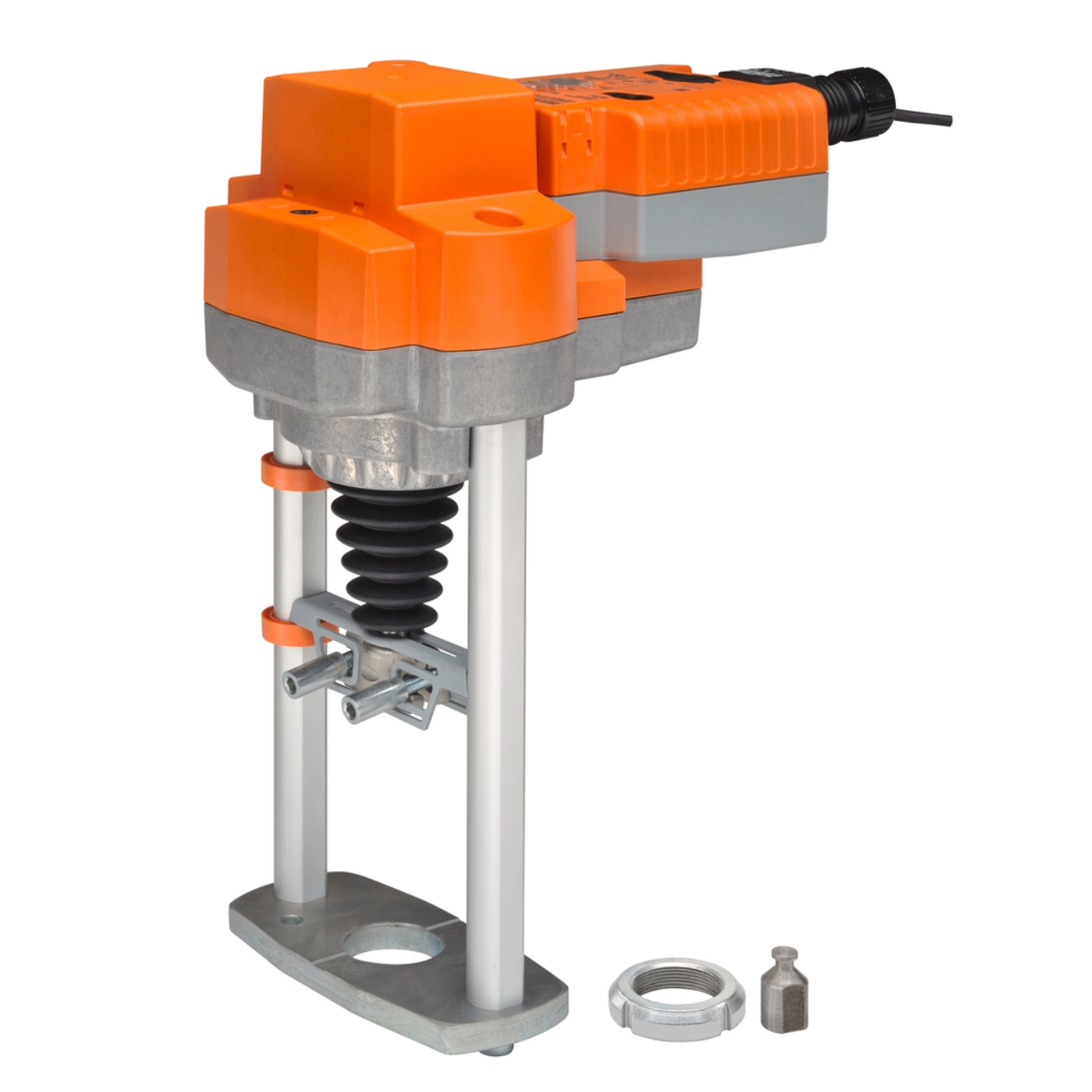

The Belimo WGVL+AVKX24-MFT is a configurable Warren globe valve linkage assembly with an integrated electronic fail-safe MFT programmable actuator. It delivers up to 450 lbf of linear force for precise modulation of globe valves in hydronic and steam HVAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | WGVL+AVKX24-MFT |
| Subcategory | Valve Actuators |
| Assembly Type | Warren globe valve linkage with actuator |
| Applicable Valve Size | 2…6 in (DN 50…150) |
| Actuating Force | 2000 N (450 lbf) |
| Stroke | 1.25 in (32 mm) |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Power Consumption (Running) | 5 W |
| Power Consumption (Rest) | 2 W |
| Transformer Sizing | 9.5 VA (Class 2) |
| Control Signals | 2…10 V, 4…20 mA, PWM, On/Off, Floating Point |
| Actuator Type | Electronic fail-safe, MFT programmable |
| Running Time | 90 s (adjustable 90…150 s) |
| Fail-Safe Running Time | <35 s |
| Position Feedback | 2…10 V, variable |
| Mounting Position | 360° |
| Degree of Protection | IP54 / NEMA 2 |
| Weight | 11.95 lb |
Information About WGVL+AVKX24-MFT
The WGVL+AVKX24-MFT is part of Belimo’s globe valve linkage solutions specifically designed for Warren Type 20, 22, 23, 30, and 32 globe valves as well as Belimo G6 and G7 configurations. The linkage frame accommodates valve bonnet diameters up to 2.3 inches and provides broad retrofit compatibility in existing mechanical systems. Its AVKX24-MFT electronic fail-safe actuator uses stored energy to drive the valve to a predefined safety position during power loss. Engineered for maintenance-free operation, the assembly combines corrosion-resistant materials with advanced programmable control electronics.
Key Features
- Warren Globe Valve Compatibility: Designed to fit Warren Type 20, 22, 23, 30, and 32 valves as well as Belimo G6/G7 assemblies for retrofit and replacement projects.
- Electronic Fail-Safe Operation: Integrated energy storage ensures the valve moves to a defined safety position during power interruption.
- High Linear Actuating Force: Delivers up to 450 lbf (2000 N) of force for reliable control of globe valves under high differential pressures.
- MFT Programmable Control Platform: Supports 2…10 V, 4…20 mA, PWM, on/off, and floating point control from a single configurable actuator.
- Flexible Installation Orientation: 360-degree mounting capability simplifies installation in confined or complex mechanical layouts.
- Configurable Performance Parameters: Adjustable runtime, control ranges, and feedback signals allow precise system tuning.
- Durable Mechanical Construction: Stainless steel stem components and reinforced linkage materials support long-term operation in hydronic and steam environments.
The WGVL+AVKX24-MFT delivers the reliability and precision required for electronically fail-safe globe valve control in commercial and industrial HVAC systems.
Description
The Belimo WGVL+AVKX24-MFT is a configurable Warren globe valve linkage assembly with an integrated electronic fail-safe MFT programmable actuator. It delivers up to 450 lbf of linear force for precise modulation of globe valves in hydronic and steam HVAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | WGVL+AVKX24-MFT |
| Subcategory | Valve Actuators |
| Assembly Type | Warren globe valve linkage with actuator |
| Applicable Valve Size | 2…6 in (DN 50…150) |
| Actuating Force | 2000 N (450 lbf) |
| Stroke | 1.25 in (32 mm) |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Power Consumption (Running) | 5 W |
| Power Consumption (Rest) | 2 W |
| Transformer Sizing | 9.5 VA (Class 2) |
| Control Signals | 2…10 V, 4…20 mA, PWM, On/Off, Floating Point |
| Actuator Type | Electronic fail-safe, MFT programmable |
| Running Time | 90 s (adjustable 90…150 s) |
| Fail-Safe Running Time | <35 s |
| Position Feedback | 2…10 V, variable |
| Mounting Position | 360° |
| Degree of Protection | IP54 / NEMA 2 |
| Weight | 11.95 lb |
Information About WGVL+AVKX24-MFT
The WGVL+AVKX24-MFT is part of Belimo’s globe valve linkage solutions specifically designed for Warren Type 20, 22, 23, 30, and 32 globe valves as well as Belimo G6 and G7 configurations. The linkage frame accommodates valve bonnet diameters up to 2.3 inches and provides broad retrofit compatibility in existing mechanical systems. Its AVKX24-MFT electronic fail-safe actuator uses stored energy to drive the valve to a predefined safety position during power loss. Engineered for maintenance-free operation, the assembly combines corrosion-resistant materials with advanced programmable control electronics.
Key Features
- Warren Globe Valve Compatibility: Designed to fit Warren Type 20, 22, 23, 30, and 32 valves as well as Belimo G6/G7 assemblies for retrofit and replacement projects.
- Electronic Fail-Safe Operation: Integrated energy storage ensures the valve moves to a defined safety position during power interruption.
- High Linear Actuating Force: Delivers up to 450 lbf (2000 N) of force for reliable control of globe valves under high differential pressures.
- MFT Programmable Control Platform: Supports 2…10 V, 4…20 mA, PWM, on/off, and floating point control from a single configurable actuator.
- Flexible Installation Orientation: 360-degree mounting capability simplifies installation in confined or complex mechanical layouts.
- Configurable Performance Parameters: Adjustable runtime, control ranges, and feedback signals allow precise system tuning.
- Durable Mechanical Construction: Stainless steel stem components and reinforced linkage materials support long-term operation in hydronic and steam environments.
The WGVL+AVKX24-MFT delivers the reliability and precision required for electronically fail-safe globe valve control in commercial and industrial HVAC systems.
