WGVL+EVB24-SR | Belimo Warren Globe Valve Linkage With Modulating Actuator 24 V
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability

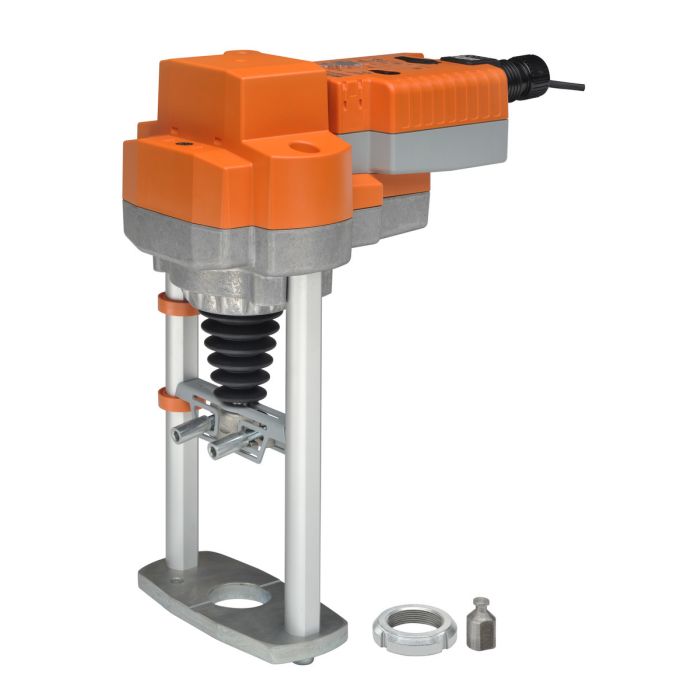

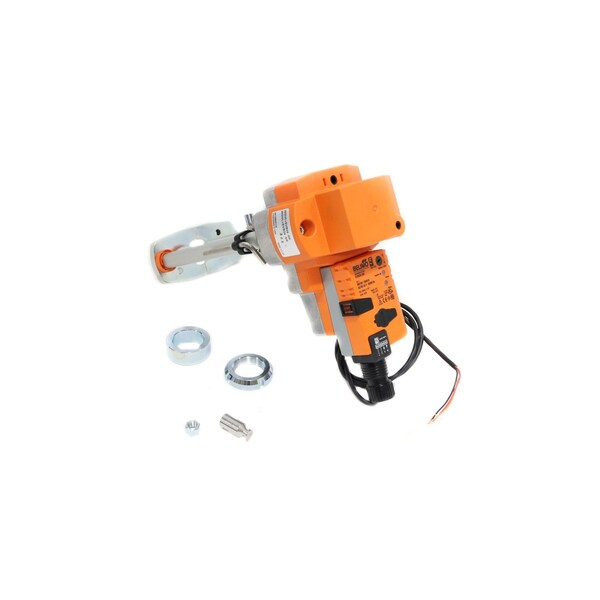

Product Description P/N: WGVL+EVB24-SR
Description
The Belimo WGVL+EVB24-SR is a Warren globe valve linkage assembly with a factory-fitted modulating actuator designed for precise linear flow control in HVAC and steam applications. Operating on AC/DC 24 V with a 2–10 V control signal, it delivers high actuating force for stable and accurate valve positioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Control Components |
| Part Number | WGVL+EVB24-SR |
| Subcategory | Globe Valve Linkage Assemblies |
| Assembly Type | Warren Globe Valve Linkage with Actuator |
| Actuator Type | Electric, Non-Fail-Safe, Modulating |
| Nominal Voltage | AC/DC 24 V |
| Frequency | 50/60 Hz |
| Power Consumption (Operation) | 5 W |
| Power Consumption (Rest) | 1.5 W |
| Transformer Sizing | 7.5 VA (Class 2) |
| Control Signal | 2–10 V (4–20 mA with resistor) |
| Input Impedance | 100 kΩ (2–10 V), 500 Ω (4–20 mA) |
| Position Feedback | 2–10 V, max. 0.5 mA |
| Actuating Force | 2500 N (562 lbf) |
| Stroke Length | 2 in (50 mm) |
| Running Time | 90 s (constant, load-independent) |
| Manual Override | 5 mm hex crank (included) |
| Electrical Connection | 18 GA cable, 1 m, 1/2 in conduit |
| Degree of Protection | IP54 / NEMA 2 |
| Applicable Valve Size | 2 in to 6 in (DN 50–150) |
| Mounting Position | 360° |
| Fluid Compatibility | Chilled water, hot water, steam |
| Weight | 12 lb |
Information About WGVL+EVB24-SR
The WGVL+EVB24-SR is a Belimo globe valve linkage assembly developed to adapt EV, RV, and AVK actuators to Warren globe valves used in hydronic and steam systems. It supports a wide range of valve sizes and provides smooth, proportional control through a standard 2–10 VDC signal. The assembly is engineered with robust stainless steel and aluminum components to withstand continuous operation in demanding HVAC environments. Its universal mechanical design simplifies retrofit and replacement scenarios across multiple Warren valve series.
Key Features
- High actuating force output: Delivers 2500 N (562 lbf) of linear force to ensure stable control of large globe valves under varying pressure conditions.
- Proportional modulating control: Accepts a 2–10 VDC control signal with optional 4–20 mA support for flexible system integration.
- Wide valve compatibility: Designed to mount on Warren globe valves ranging from 2 inches to 6 inches in size.
- Robust mechanical construction: Uses stainless steel, aluminum, and nickel-plated steel components for long-term durability.
- 360-degree mounting flexibility: Allows installation in any orientation to accommodate space and piping constraints.
- Integrated position feedback: Provides a 2–10 V feedback signal for accurate position monitoring and closed-loop control.
- Manual override capability: Includes a hex crank for manual positioning during commissioning or maintenance.
The WGVL+EVB24-SR delivers the reliability and precision required for accurate globe valve modulation in commercial HVAC and steam control systems.
Description
The Belimo WGVL+EVB24-SR is a Warren globe valve linkage assembly with a factory-fitted modulating actuator designed for precise linear flow control in HVAC and steam applications. Operating on AC/DC 24 V with a 2–10 V control signal, it delivers high actuating force for stable and accurate valve positioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Control Components |
| Part Number | WGVL+EVB24-SR |
| Subcategory | Globe Valve Linkage Assemblies |
| Assembly Type | Warren Globe Valve Linkage with Actuator |
| Actuator Type | Electric, Non-Fail-Safe, Modulating |
| Nominal Voltage | AC/DC 24 V |
| Frequency | 50/60 Hz |
| Power Consumption (Operation) | 5 W |
| Power Consumption (Rest) | 1.5 W |
| Transformer Sizing | 7.5 VA (Class 2) |
| Control Signal | 2–10 V (4–20 mA with resistor) |
| Input Impedance | 100 kΩ (2–10 V), 500 Ω (4–20 mA) |
| Position Feedback | 2–10 V, max. 0.5 mA |
| Actuating Force | 2500 N (562 lbf) |
| Stroke Length | 2 in (50 mm) |
| Running Time | 90 s (constant, load-independent) |
| Manual Override | 5 mm hex crank (included) |
| Electrical Connection | 18 GA cable, 1 m, 1/2 in conduit |
| Degree of Protection | IP54 / NEMA 2 |
| Applicable Valve Size | 2 in to 6 in (DN 50–150) |
| Mounting Position | 360° |
| Fluid Compatibility | Chilled water, hot water, steam |
| Weight | 12 lb |
Information About WGVL+EVB24-SR
The WGVL+EVB24-SR is a Belimo globe valve linkage assembly developed to adapt EV, RV, and AVK actuators to Warren globe valves used in hydronic and steam systems. It supports a wide range of valve sizes and provides smooth, proportional control through a standard 2–10 VDC signal. The assembly is engineered with robust stainless steel and aluminum components to withstand continuous operation in demanding HVAC environments. Its universal mechanical design simplifies retrofit and replacement scenarios across multiple Warren valve series.
Key Features
- High actuating force output: Delivers 2500 N (562 lbf) of linear force to ensure stable control of large globe valves under varying pressure conditions.
- Proportional modulating control: Accepts a 2–10 VDC control signal with optional 4–20 mA support for flexible system integration.
- Wide valve compatibility: Designed to mount on Warren globe valves ranging from 2 inches to 6 inches in size.
- Robust mechanical construction: Uses stainless steel, aluminum, and nickel-plated steel components for long-term durability.
- 360-degree mounting flexibility: Allows installation in any orientation to accommodate space and piping constraints.
- Integrated position feedback: Provides a 2–10 V feedback signal for accurate position monitoring and closed-loop control.
- Manual override capability: Includes a hex crank for manual positioning during commissioning or maintenance.
The WGVL+EVB24-SR delivers the reliability and precision required for accurate globe valve modulation in commercial HVAC and steam control systems.
