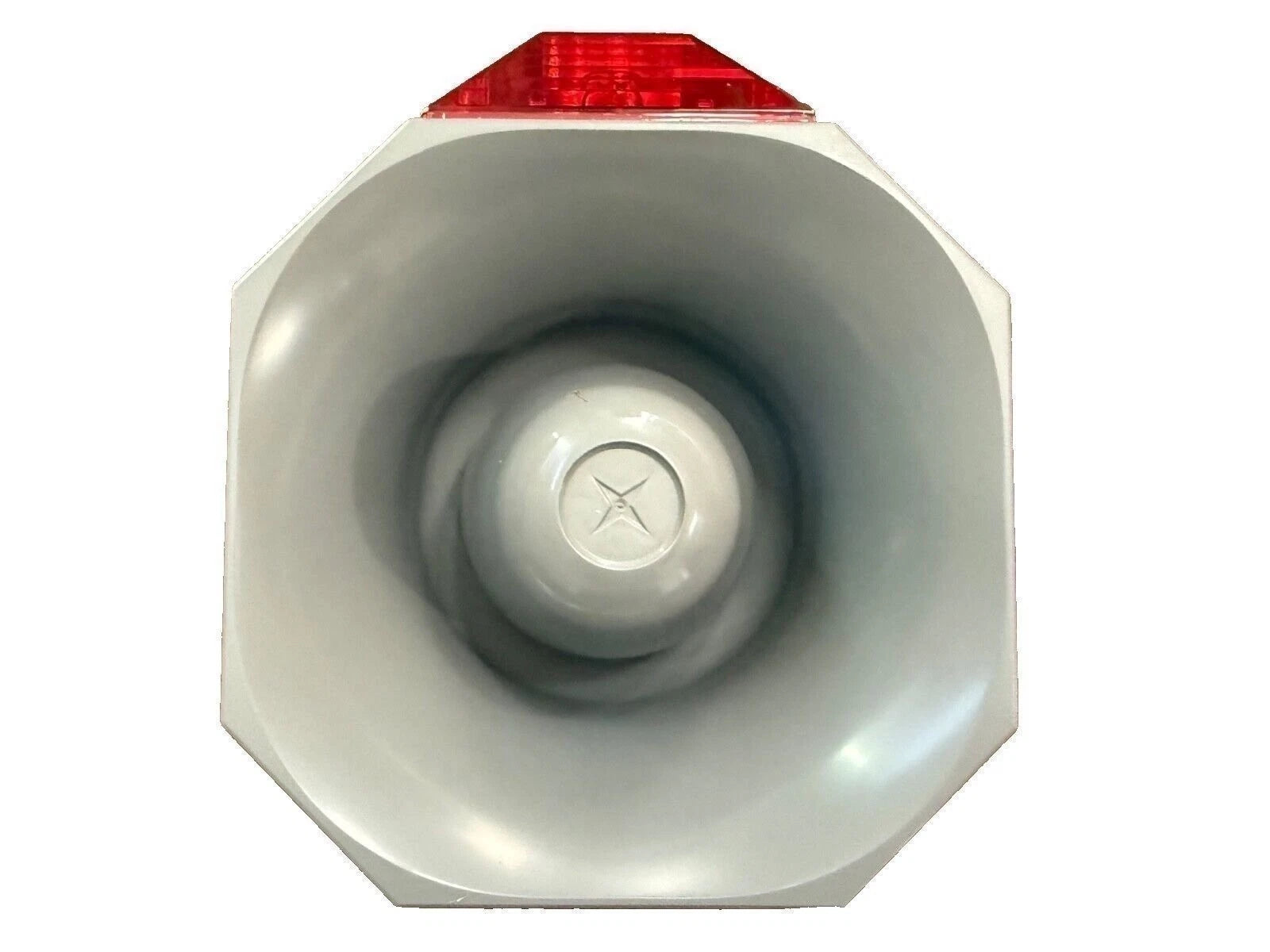

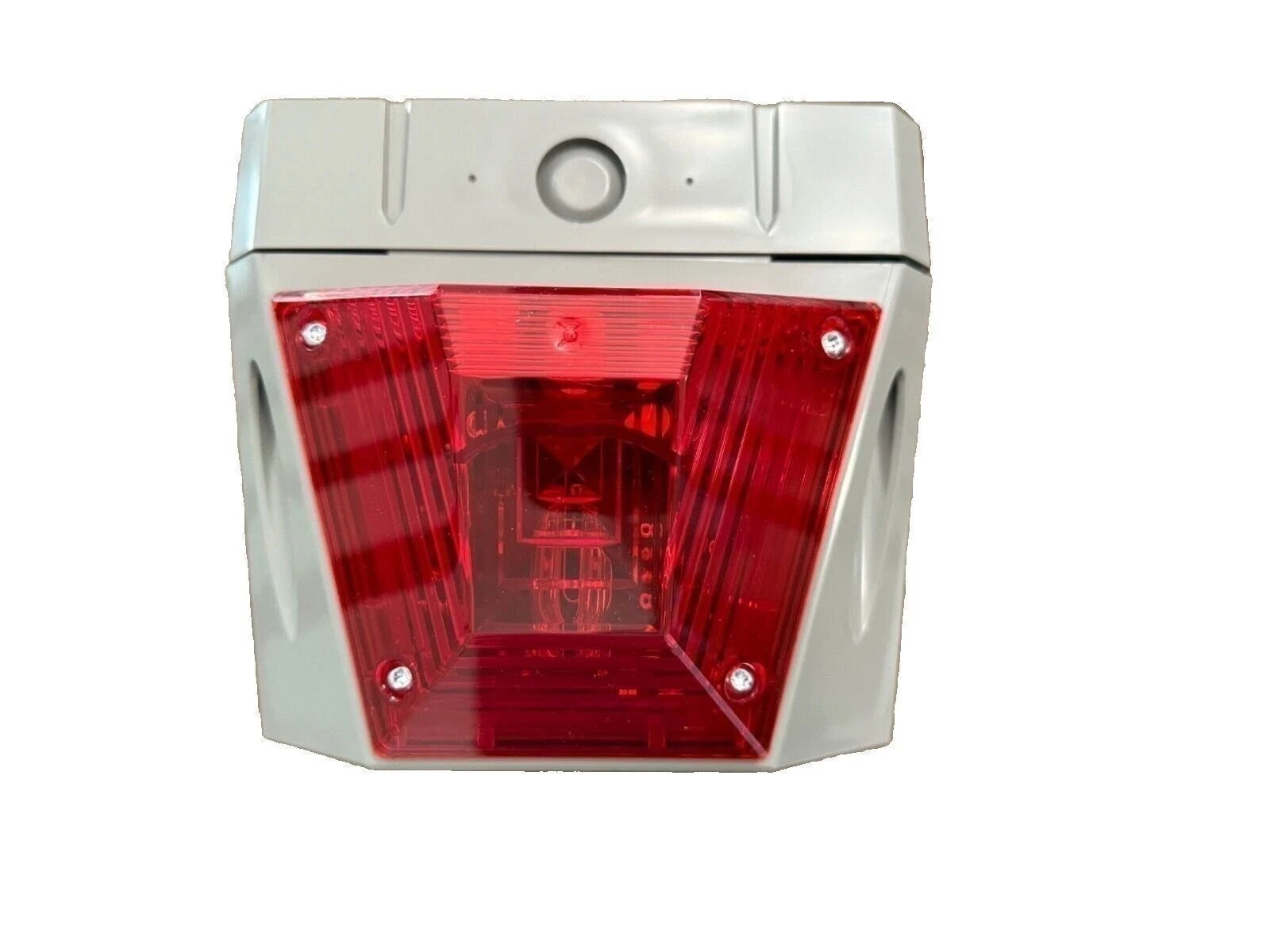

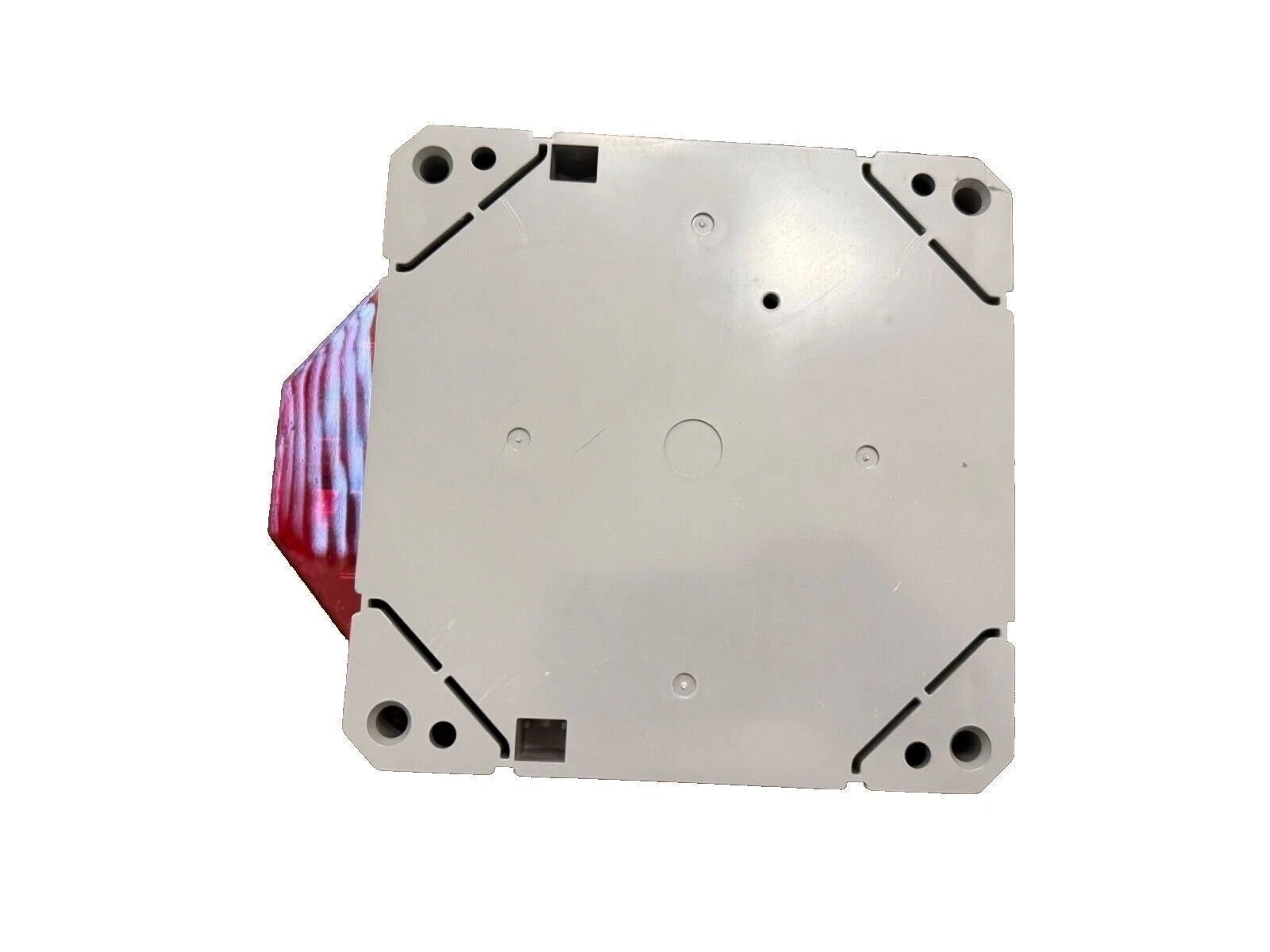

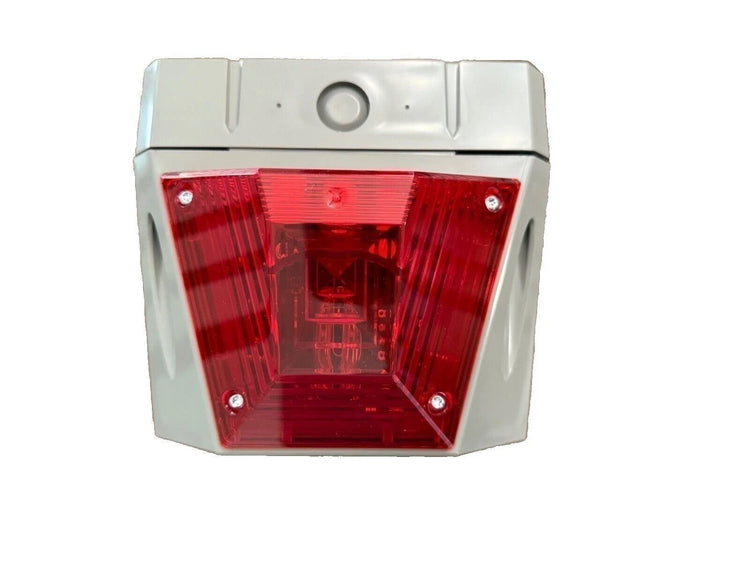

Wheelock 104075 ASRS-R-DC 24VDC Audible Strobe with Red Lens
- Regular price
- $589.00
- Sale price
- $589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 104075
Description
The Wheelock 104075, model ASRS-R-DC, is a 24 VDC audible strobe designed to provide combined high-output audible and visual emergency signaling. It combines a multi-tone sounder with a red-lens strobe in an IP66 weatherproof enclosure suitable for demanding indoor and outdoor notification applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wheelock |
| Category | Notification Appliances |
| Part Number | 104075 |
| Subcategory | Audible Strobes |
| Model | ASRS-R-DC |
| Product Type | Audible Strobe / Signaling Beacon |
| Nominal Voltage | 24 VDC |
| Operating Voltage | 18–30 VDC |
| Alarm Tones | Up to 42 |
| Lens Color | Red |
| Flash Rate | 1 Hz (60 Flashes per Minute) |
| Sound Output | Up to 120 dB(A) |
| Volume Adjustment | 0 to -10 dB |
| Environmental Rating | IP66 |
| Operating Temperature | -13°F to 158°F (-25°C to 70°C) |
| Mounting | Wall |
| Weight | 1 lb (0.45 kg) |
Information About 104075
The 104075 is a Wheelock ASRS-R-DC audible signaling beacon developed for emergency, fire alarm, and industrial notification applications. The unit operates from an 18–30 VDC supply and provides up to 42 selectable alarm tones together with a red visual strobe. Its weatherproof enclosure carries an IP66 rating and supports wall-mounted operation in indoor, outdoor, wet, and high-noise environments. Adjustable sound output, a 1 Hz flash rate, polarized DC inputs, and supervised-circuit compatibility provide flexible integration with applicable alarm and emergency signaling systems.
Key Features:
- Audible and Visual Signaling: Combines a high-output audible alarm with an integrated red-lens visual strobe.
- 42 Alarm Tones: Provides multiple selectable tones for different emergency and notification requirements.
- 24 VDC Operation: Designed for nominal 24 VDC systems with an operating range of 18–30 VDC.
- High Sound Output: Provides sound pressure levels reaching approximately 120 dB(A), depending on the selected tone and configuration.
- Red Strobe Lens: Uses a red lens for distinct visual emergency signaling.
- Weatherproof Housing: IP66 enclosure supports applicable indoor and outdoor installations.
- Adjustable Volume: Provides sound level adjustment from 0 to -10 dB.
- Wide Temperature Range: Designed for operation from -25°C to 70°C (-13°F to 158°F).
The 104075 delivers the reliability and precision required for high-output audible and visual emergency notification in industrial, commercial, and fire safety applications.
