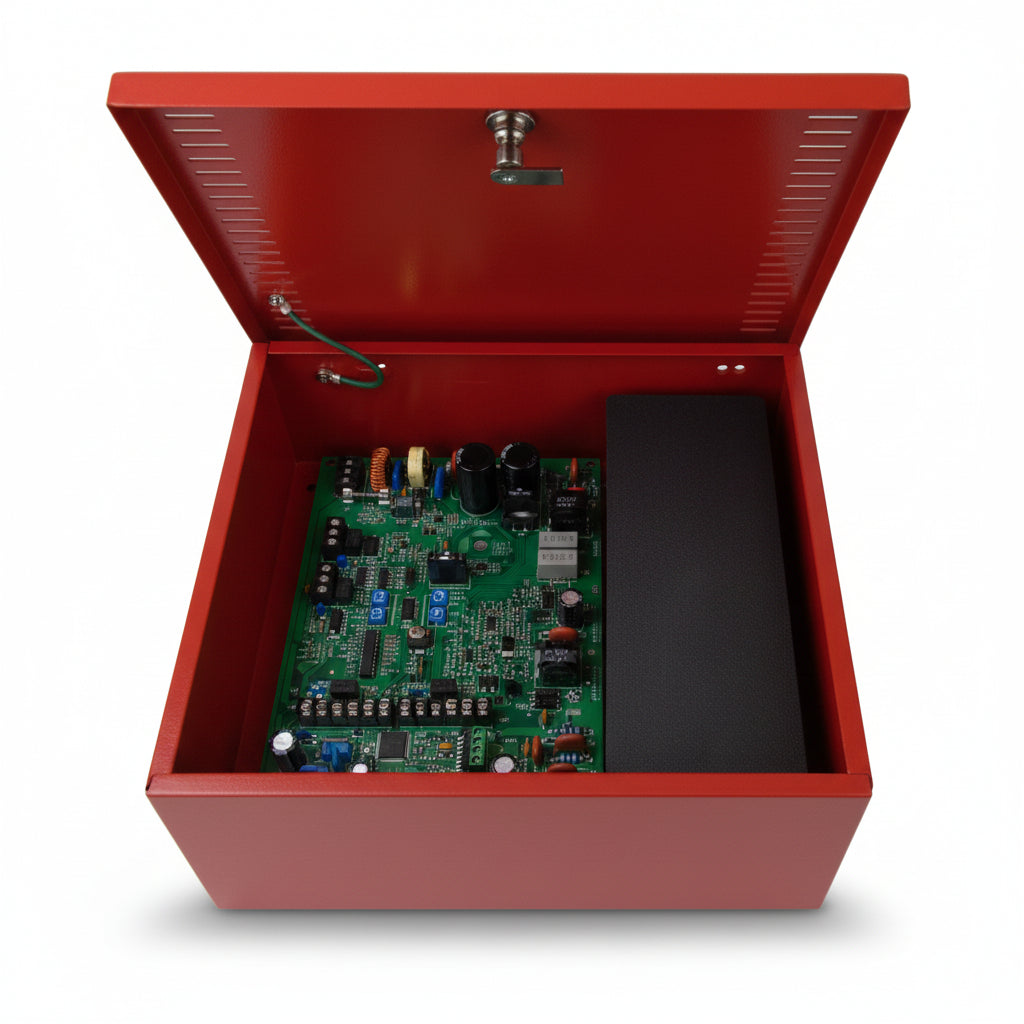

Wheelock PS-24-8MC POWERPATH 24 VDC 8 A Supervised NAC Power Supply
- Regular price
- $865.00
- Sale price
- $865.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PS-24-8MC
Description
The Wheelock PS-24-8MC is an 8 A, 24 VDC supervised remote power supply and battery charger designed to provide expanded power for fire alarm Notification Appliance Circuits (NACs). It accepts NAC or dry-contact initiating inputs and provides regulated, filtered power for compatible notification appliances in fire alarm installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wheelock |
| Category | Fire Alarm System Components |
| Part Number | PS-24-8MC |
| Subcategory | NAC Power Supplies |
| Product Series | POWERPATH |
| Component Type | Supervised Remote Power Supply / Charger |
| Input Voltage | 120/220 VAC, 50/60 Hz |
| Maximum Input Current | 5.0 A |
| Output Voltage | 24 VDC |
| Total NAC Current | 8 A maximum |
| NAC Output Rating | 3 A per circuit |
| NAC Outputs | Four Class B or two Class A; four Class A with optional PS-4CA |
| Battery Connection | 24 VDC battery backup |
| Battery Charger | Supports sealed lead-acid or gel batteries up to 20 Ah |
| Initiating Inputs | Two NAC or two dry-contact initiating circuits |
| Operating Modes | Normal, Temporal, IN>OUT Sync, Wheelock Sync |
| Auxiliary Output | 3.5 A or 200 mA, depending on configuration |
| Approvals | UL Listed 864; FM, MEA, CSFM and BFP listed/pending per specification documentation |
| Weight | 13.00 lbs |
Information About PS-24-8MC
The PS-24-8MC belongs to the Wheelock POWERPATH series of remote power supply and charger units for fire alarm notification applications. The unit accepts 120/220 VAC input and includes a 24 VDC battery-backup connection with an integrated charger for sealed lead-acid or gel batteries up to 20 Ah. Its four programmable outputs can operate as Class B or Class A circuits, with an optional PS-4CA module providing four Class A outputs. The POWERPATH platform supports constant 24 VDC, Code 3 temporal, IN>OUT synchronization, and Wheelock synchronization modes for compatible horns, strobes, bells, and chimes.
Key Features:
- 24 VDC Power Supply: Provides regulated and filtered 24 VDC output for fire alarm notification circuits.
- 8 A Total NAC Capacity: Supports a maximum combined NAC alarm load of 8 A.
- Four NAC Outputs: Provides four outputs rated at up to 3 A each for compatible notification circuits.
- Class A/B Operation: Supports four Class B circuits or two Class A circuits, with additional configurations available.
- Battery Charger: Includes an integrated charger for sealed lead-acid or gel batteries up to 20 Ah.
- Multiple Operating Modes: Supports normal, Code 3 temporal, IN>OUT sync, and Wheelock sync operation.
- Supervised Inputs: Accepts two NAC initiating circuits or two dry-contact initiating circuits for control and supervision.
- Auxiliary Power: Provides selectable auxiliary power options of 3.5 A or 200 mA depending on operating configuration.
The PS-24-8MC delivers the reliability and precision required for fire alarm notification power distribution, NAC expansion, and supervised emergency signaling systems.
