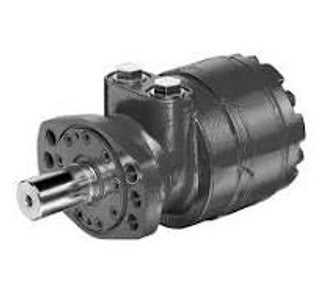

White 505300A5120ZAAAAP RE Series Orbital Hydraulic Motor With SAE A Mount and Straight Shaft
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 505300A5120ZAAAAP
Description

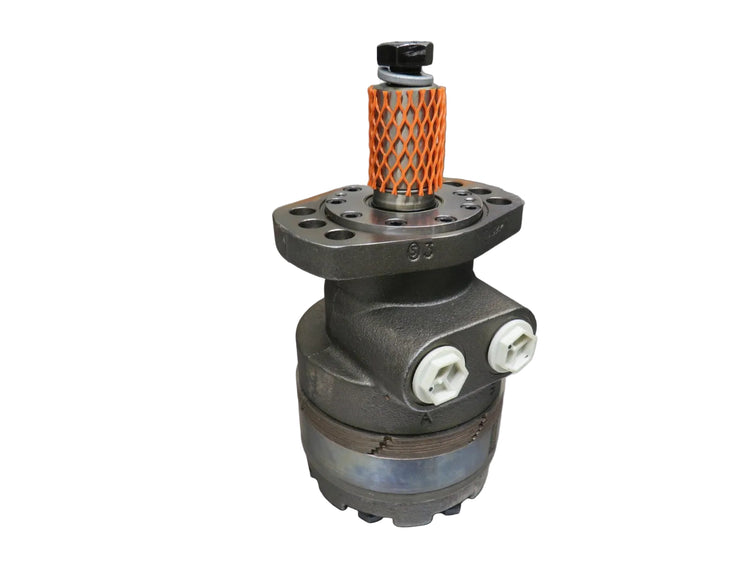

The White 505300A5120ZAAAAP is an RE Series orbital hydraulic motor designed to convert hydraulic flow into rotary motion for machinery drives. Its 300 cm³/revolution displacement suits low-speed, high-torque applications such as feed rollers, augers, and broom drives.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | White |
| Category | Hydraulics |
| Part Number | 505300A5120ZAAAAP |
| Subcategory | Hydraulic Motor |
| Series | RE 505 |
| Motor Type | Fixed-displacement orbital hydraulic motor |
| Displacement | 300 cm³/revolution / 18.3 cubic inches/revolution |
| Mounting Configuration | A51: six-hole SAE A flange |
| Working Port Connections | 7/8-14 UNF |
| Port Arrangement | Aligned side ports |
| Output Shaft | Code 20: 1-1/4-inch straight shaft |
| Rotation Configuration | Standard 505 port-to-rotation relationship; bidirectional operation |
| Exterior Finish | Code Z: unpainted |
| Maximum Continuous Speed | 250 revolutions/minute, RE 300 reference rating |
| Maximum Continuous Flow | 83 liters/minute / 22 US gallons/minute, RE 300 reference rating |
| Maximum Continuous Torque | 825 Nm / 7300 in-lb, RE 300 reference rating |
| Maximum Continuous Pressure Differential | 207 bar / 3000 psi, RE 300 reference rating |
| Final Suffix | P: configuration meaning not independently verified |
| Weight | Approximately 25.8 lbs |
Information About 505300A5120ZAAAAP
The 505300A5120ZAAAAP is identified by its base ordering code as a White RE 505 Series motor. The RE design incorporates a pressure-compensated balance plate and a lubricated drive link to transmit torque to the output shaft. The A51 mounting code specifies a six-hole SAE A flange with aligned 7/8-14 UNF hydraulic ports. The shaft and finish codes indicate a 1-1/4-inch straight shaft and an unpainted exterior, while the final P suffix remains unverified in the available ordering documentation.
Key Features:
- Orbital Motor Design: Produces rotary output for low-speed hydraulic drive applications.
- Fixed Displacement: Uses a nominal displacement of 300 cm³ per revolution.
- Pressure Compensation: A flexible balance plate supports volumetric efficiency during startup and loaded operation.
- Valve-in-Rotor Distribution: Integrates hydraulic distribution into the rotor assembly.
- Standard Mounting: The A51 configuration provides a six-hole SAE A mounting flange.
- Straight Output Shaft: Shaft code 20 identifies a 1-1/4-inch straight shaft.
- Aligned Hydraulic Ports: Uses 7/8-14 UNF connections for the working ports.
The 505300A5120ZAAAAP delivers the reliability and precision required for controlled rotary drive in compatible hydraulic machinery.
