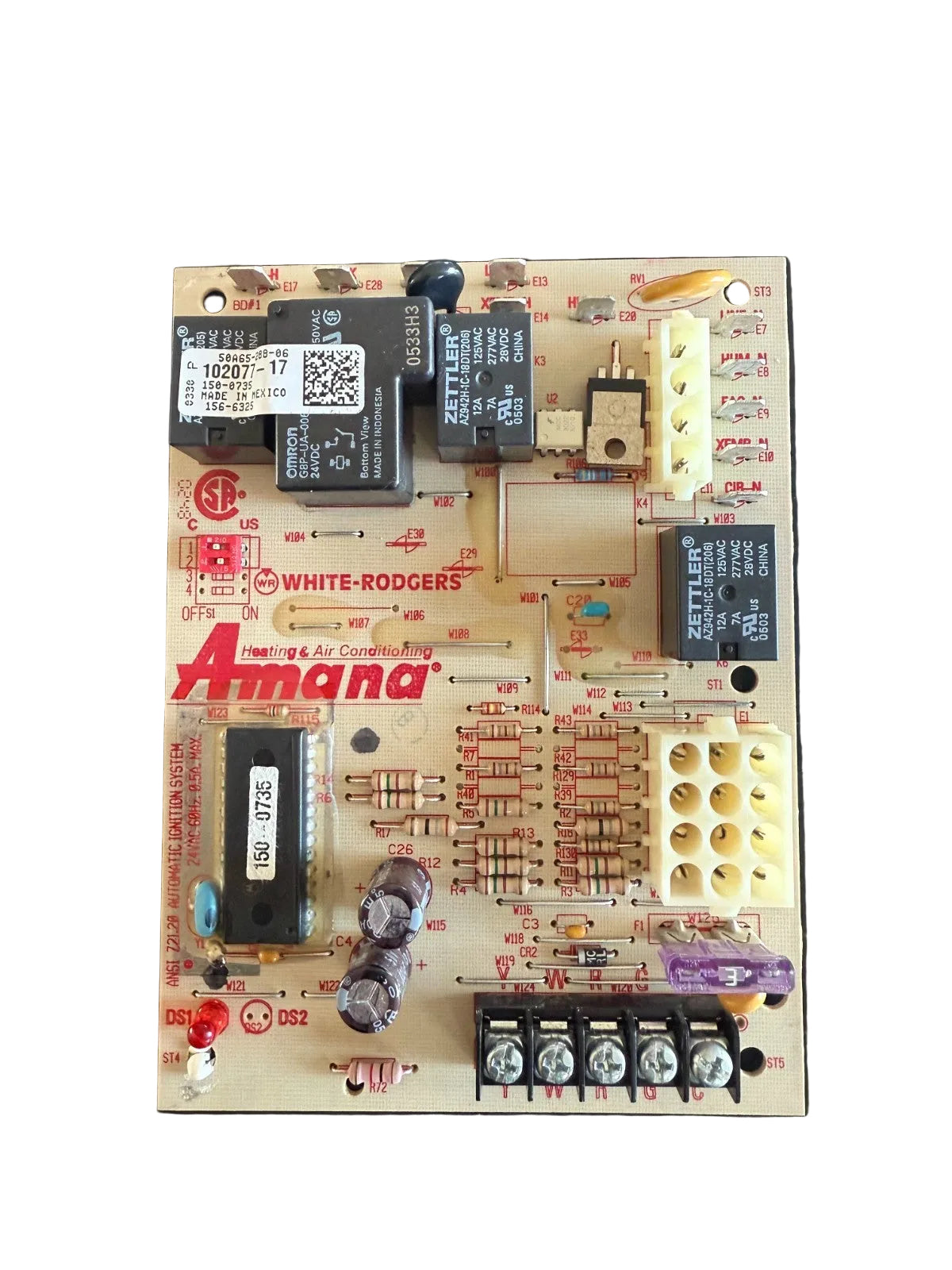

White-Rodgers 50A65-288-06 Integrated Furnace Ignition Control Board for Gas Furnaces
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 50A65-288-06
Description
The White-Rodgers 50A65-288-06 is an integrated furnace control board designed to manage key functions in compatible gas furnace systems. It coordinates the ignition sequence and related heating components, supporting reliable furnace operation. Verify the original control number and furnace model before ordering.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | White-Rodgers |
| Category | HVAC Controls |
| Part Number | 50A65-288-06 |
| Subcategory | Furnace Ignition Control Board |
| Control Type | Integrated hot-surface ignition control |
| Application | Gas furnace |
| Ignition Technology | Hot-surface ignition (HSI) |
| Ignitor Compatibility | Silicon nitride ignition systems; verify furnace requirements |
| System Voltage | 120 VAC line-voltage application; confirm model specifications |
| Control Circuit | 24 VAC thermostat/control circuit |
| Diagnostic Feature | LED fault indication on the 50A65 control family |
| Related OEM Reference | 102077-17 is associated with the 50A65-288 family; verify exact revision |
| Weight | 2 lb |
Information About 50A65-288-06
The 50A65-288-06 is a White-Rodgers integrated hot-surface ignition control module used in compatible gas furnaces. It helps coordinate the ignitor, gas valve, inducer, and circulating blower during heating cycles. The 50A65 control family supports silicon nitride hot-surface ignition and provides diagnostic indication for troubleshooting. Exact wiring and compatibility depend on the furnace application and control revision.
-
Integrated Furnace Control: Coordinates key electrical and ignition functions in compatible gas furnaces.
-
Hot-Surface Ignition: Designed for furnace systems using hot-surface ignition technology.
-
Heating Cycle Management: Helps sequence ignition and related furnace operations.
-
Gas Valve Control: Supports controlled gas-valve operation as part of the ignition sequence.
-
Blower Coordination: Works with the furnace blower control circuit.
-
Diagnostic Indication: The control family uses LED flash codes to assist with troubleshooting.
-
Replacement Application: Listed as a White-Rodgers 50A65-series control; confirm the exact suffix and OEM cross-reference before installation.
The 50A65-288-06 delivers the control functions required for compatible furnace ignition and heating-system operation.
