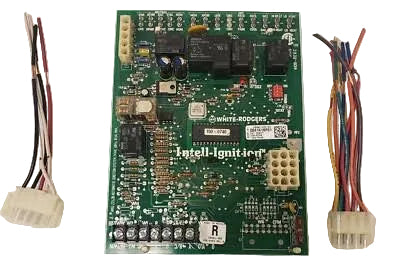

White-Rodgers 50M61-495-02 Integrated Furnace Control Board
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 50M61-495-02
Description
The White-Rodgers 50M61-495-02 is an integrated furnace control board designed to manage ignition, blower operation, and safety functions in compatible gas furnaces. It supports two-stage heating and variable-speed blower applications while providing diagnostic functions for furnace troubleshooting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | White-Rodgers |
| Category | Furnace Controls |
| Part Number | 50M61-495-02 |
| Subcategory | Control Boards |
| Control Type | Integrated Furnace Control (IFC) |
| Heating Stages | Two-stage |
| Blower Type | Variable-speed compatible |
| Furnace Efficiency | 80% and 90% efficient configurations |
| Furnace Configuration | Upflow and horizontal |
| Control Functions | Ignition, blower, sensor, and safety monitoring |
| Diagnostic Functions | Furnace troubleshooting diagnostics |
| Related Part Numbers | D341418P01, D341418P02 |
| Replaces | 50M51-495, 50M61-495 |
| Weight | 1.00 lb |
Information About 50M61-495-02
The 50M61-495-02 is an OEM replacement control board associated with D341418P01 and D341418P02 furnace control assemblies. It is designed for compatible 80% and 90% efficient upflow and horizontal furnace configurations. The board interfaces with furnace sensors and safety switches while coordinating the ignition sequence and blower motor operation. It replaces earlier White-Rodgers control models including the 50M51-495 and 50M61-495 in specified furnace applications.
Key Features:
- Integrated Furnace Control: Combines ignition, blower, and safety control functions on one furnace control board.
- Two-Stage Heating: Supports two-stage heating operation for controlled furnace performance.
- Variable-Speed Blower Control: Provides control of compatible variable-speed blower motors for regulated airflow.
- Ignition Management: Coordinates the ignition sequence during the furnace heating cycle.
- Blower Operation: Controls blower motor startup and shutdown according to the operating sequence.
- Safety Monitoring: Monitors connected sensors and safety switches during furnace operation.
- Diagnostic Functions: Provides diagnostic capabilities for identifying furnace operating faults.
- Replacement Compatibility: Replaces specified earlier White-Rodgers 50M51-495 and 50M61-495 control boards.
The 50M61-495-02 delivers the reliability and precision required for furnace ignition, blower control, safety monitoring, and diagnostic operation.
