WIC-1ADSL | Cisco Router WAN Interface Card
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WIC-1ADSL
Description

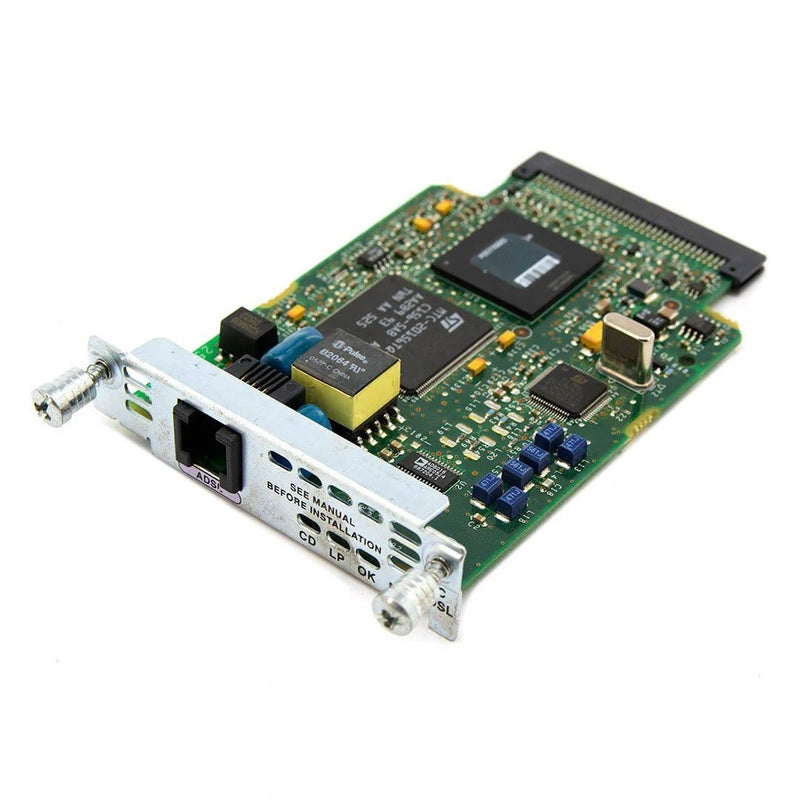

The Cisco WIC-1ADSL is a single-port WAN interface card that enables ADSL connectivity over POTS for Cisco 1700, 2600, and 3600 series routers. It supports downstream speeds of up to 8 Mbps and upstream speeds of up to 1 Mbps, enabling broadband access through existing telephone infrastructure.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
WAN Interface Modules
|
| Part Number | WIC-1ADSL |
| Subcatecory |
ADSL WAN Cards
|
| Form Factor | Internal Module |
| Interface Type | ADSL over POTS |
| Connector Type | RJ-11 |
| Downstream Speed | Up to 8 Mbps |
| Upstream Speed | Up to 1 Mbps |
| Protocols Supported | PPPoA (RFC 2364), PPPoE (RFC 2516) |
| Compliance Standards | ITU-T G.992.1 (G.dmt), G.992.2 (G.lite) |
| Power Consumption | 5.5 W |
| MTBF | 380,000 hours |
| Dimensions (W x D x H) | 5.43 x 0.79 x 3.23 in |
| Weight | 2 lb |
Information About WIC-1ADSL
The WIC-1ADSL provides reliable, high-speed ADSL connectivity using an RJ-11 interface, delivering both performance and flexibility for small and branch office environments. It complies with key ITU-T standards including G.dmt (G.992.1) and G.lite (G.992.2), ensuring interoperability with a wide range of DSLAMs. With protocol support for PPP over ATM and PPP over Ethernet, it enables versatile WAN deployments with dynamic IP address assignment and encapsulation. This internal card is SNMP-manageable and features a compact, low-power design with a mean time between failures (MTBF) of 380,000 hours.
Key Features:
- ADSL over POTS: enables broadband connectivity over traditional analog telephone lines.
- Downstream/Upstream Speeds: supports up to 8 Mbps downstream and 1 Mbps upstream.
- Standards Compliance: adheres to ITU-T G.dmt (G.992.1) and G.lite (G.992.2) specifications.
- Wide Compatibility: works with Cisco 1700, 2600, and 3600 Series modular routers.
- Compact Internal Form Factor: installs easily within compatible Cisco router chassis.
- Protocol Support: supports PPP over ATM (RFC 2364) and PPP over Ethernet (RFC 2516).
- Low Power Consumption: operates at just 5.5 watts, optimizing energy use in network equipment.
- Environmental Durability: functions in 0 to 40°C and 10%–90% humidity ranges.
- High Reliability: MTBF rated at 380,000 hours for long operational life.
The WIC-1ADSL delivers secure and efficient ADSL WAN connectivity for Cisco modular routers using proven broadband standards and flexible encapsulation support.
