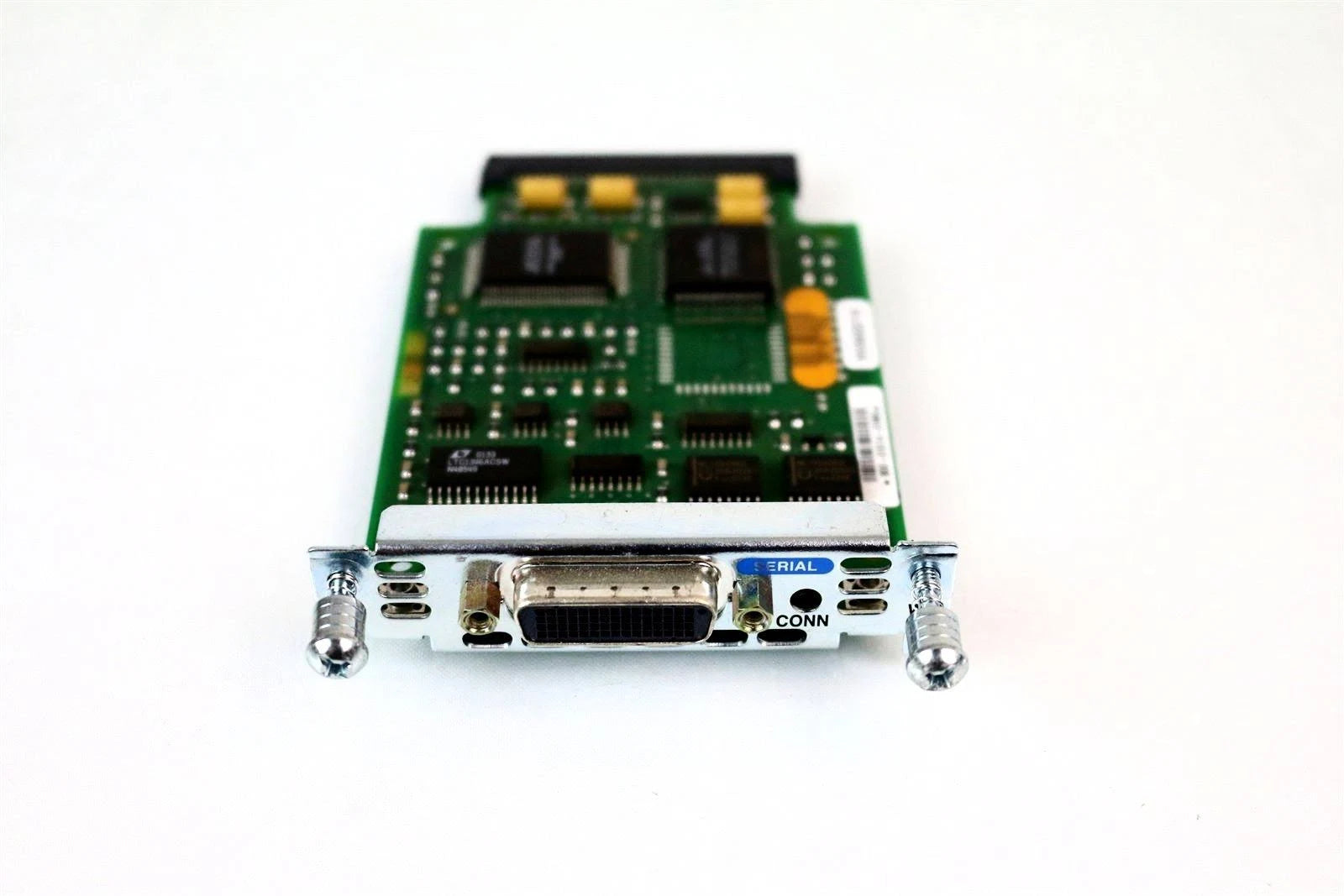

WIC-1T | Cisco Router WAN Interface Card
- Regular price
- $61.00
- Sale price
- $61.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WIC-1T
Description
The Cisco WIC-1T is a 1-port serial WAN interface card for Cisco routers, enabling synchronous serial connections using a DB-60 connector.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | Computer |
| Part Number | WIC-1T |
| Subcategory | Communication Card |
|
Interface Type
|
Serial |
| Port Count | 1 |
| Connector Type | DB60 |
| Data Link Protocol | HDLC, PPP |
| Network Protocols | Frame Relay, X.25, SNA |
| Max Data Rate | 2.048 Mbps |
| Compatibility | Cisco 1700, 2600, 3600 Series |
| Form Factor | Plug-in module |
| Dimensions (H x W x D) | 1 in. x 3.5 in. x 7.5 in. |
| Input Voltage | 3.3 V |
| Power Consumption | 1.5 Watts |
| Memory | 64 KB (Packet Buffers) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -20 to 65°C (-4 to 149°F) |
| Relative Humidity | 5% to 95% non-condensing |
| MTBF | 500,000 hours |
| Compliance | FCC Part 15 Class A |
| Weight | 0.11 lbs |
Information About WIC-1T
The Cisco WIC-1T is a single-port serial WAN interface card designed for Cisco routers to support synchronous WAN connectivity. Ideal for low-speed leased line connections and legacy network integration, it provides flexible deployment using various serial standards via a DB-60 interface.
Key Features:
-
Port Count: 1 synchronous serial port
-
Connector Type: DB-60
-
Supported Speeds: Up to 2.048 Mbps (depending on cable and interface)
-
Interface Compatibility: V.35, RS-232, RS-449, X.21, EIA-530 (via optional adapter cables)
-
Protocols Supported: HDLC, PPP, Frame Relay, X.25, Cisco proprietary
-
Router Compatibility: Cisco 1700, 1800, 2600, 2800, 3600, 3700, and 3800 Series
-
Form Factor: Fits in a single WIC slot
-
Encapsulation: Supports multiple WAN encapsulation methods
-
Power Requirement: Low power consumption, powered by router chassis
-
Hot Swappable: No
This WAN interface card is ideal for branch office routers, lab environments, and networks requiring legacy serial connections. Its modular design and broad protocol support make it a cost-effective solution for extending synchronous WAN services in Cisco router deployments.
