WL12G-P530 | SICK Retro-Reflective Photoelectric Sensor for Clear Materials, PNP
- Regular price
- $227.00
- Sale price
- $227.00
- Regular price
-
Couldn't load pickup availability

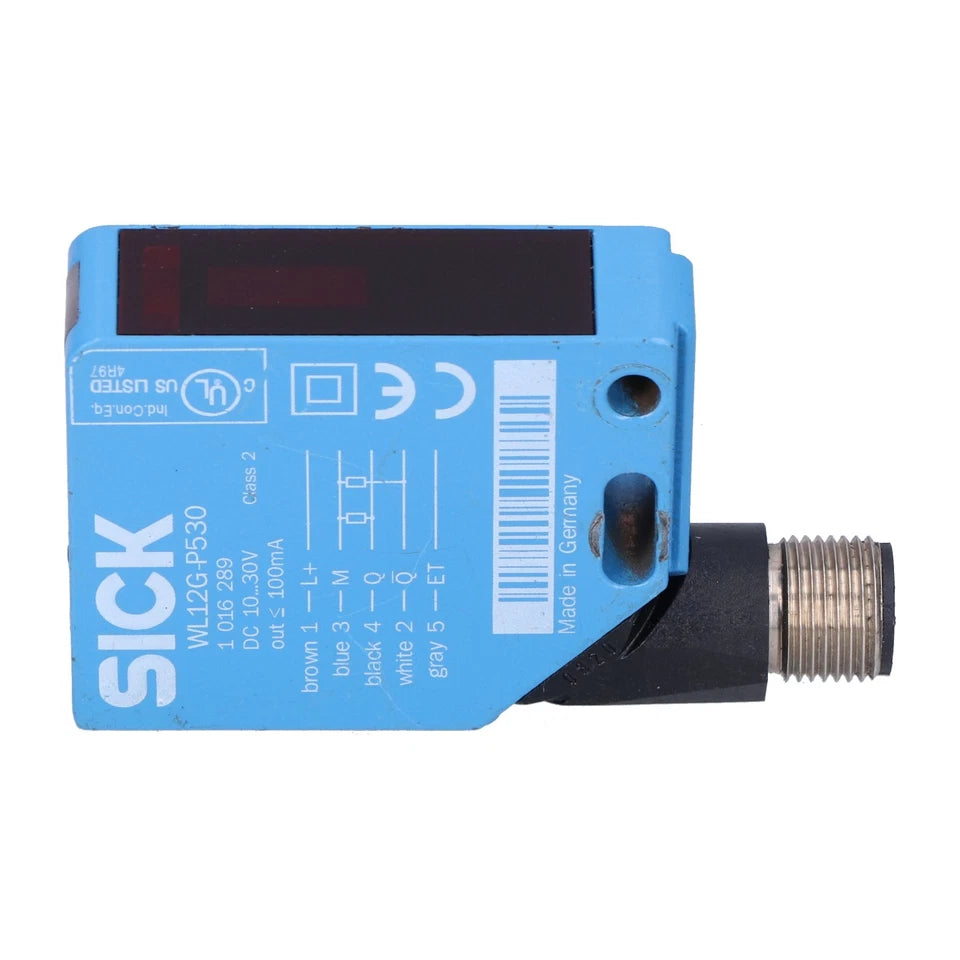

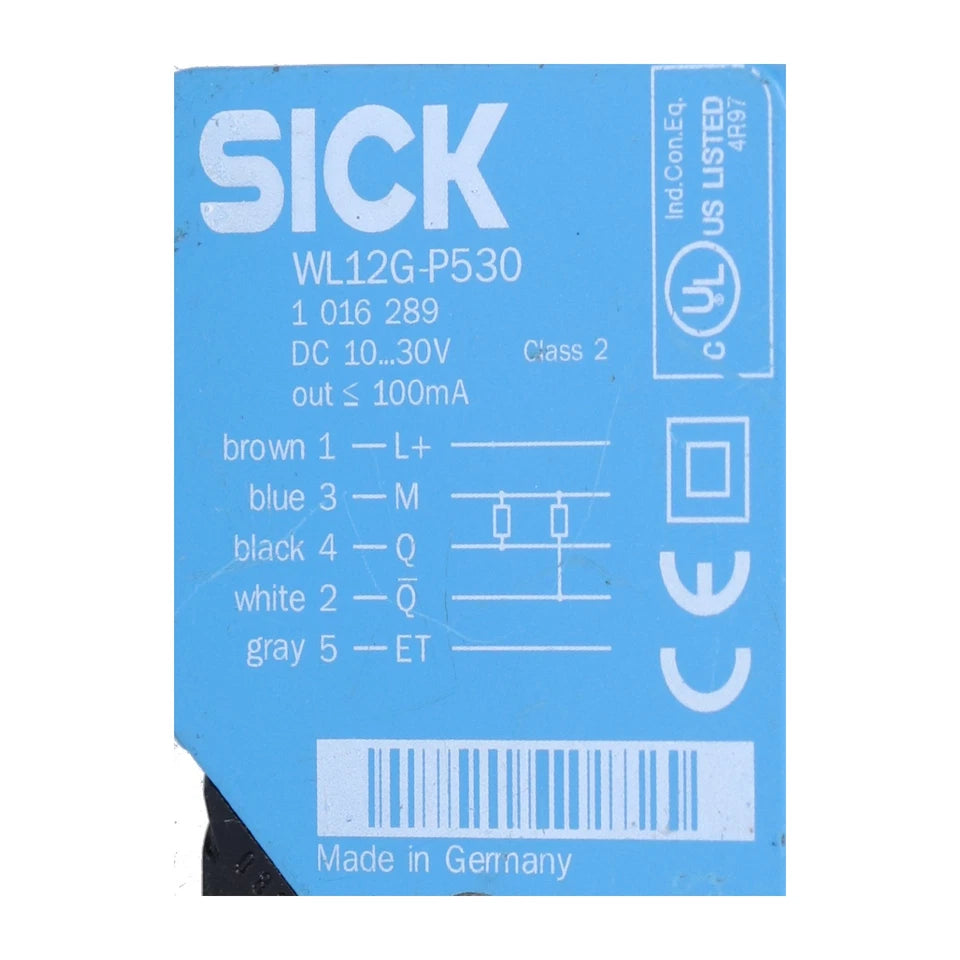

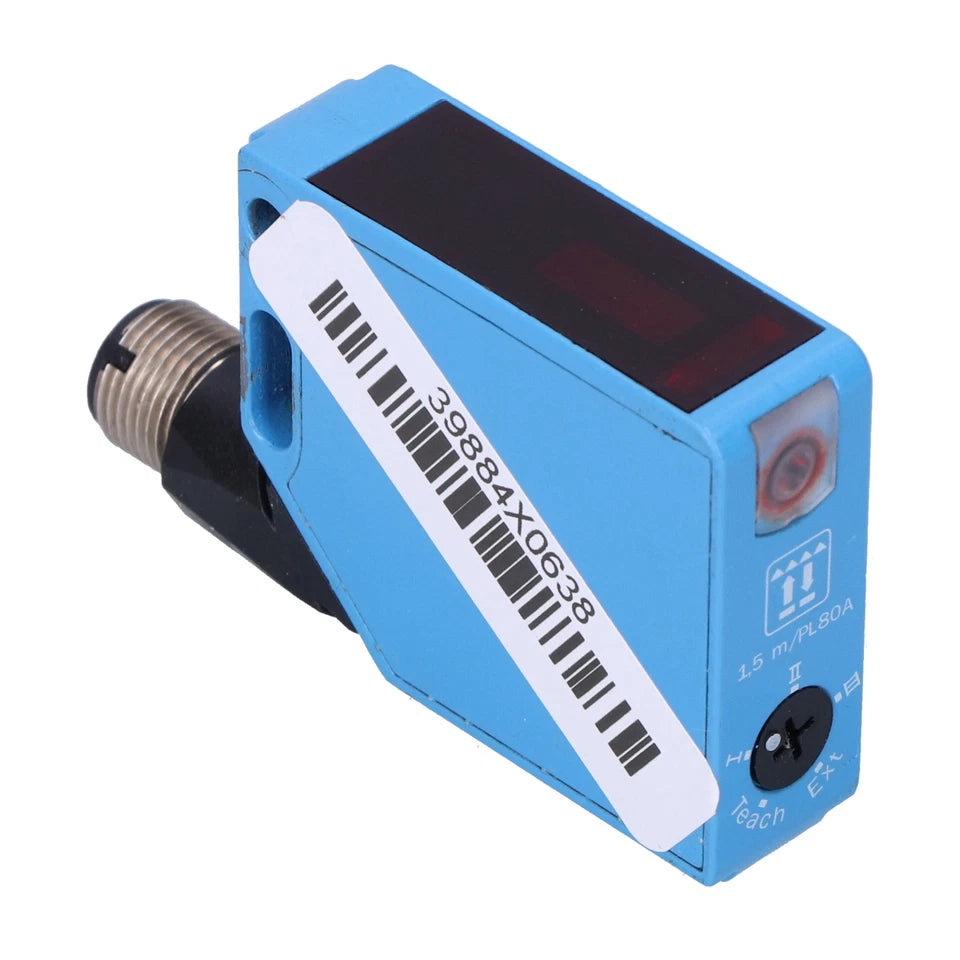

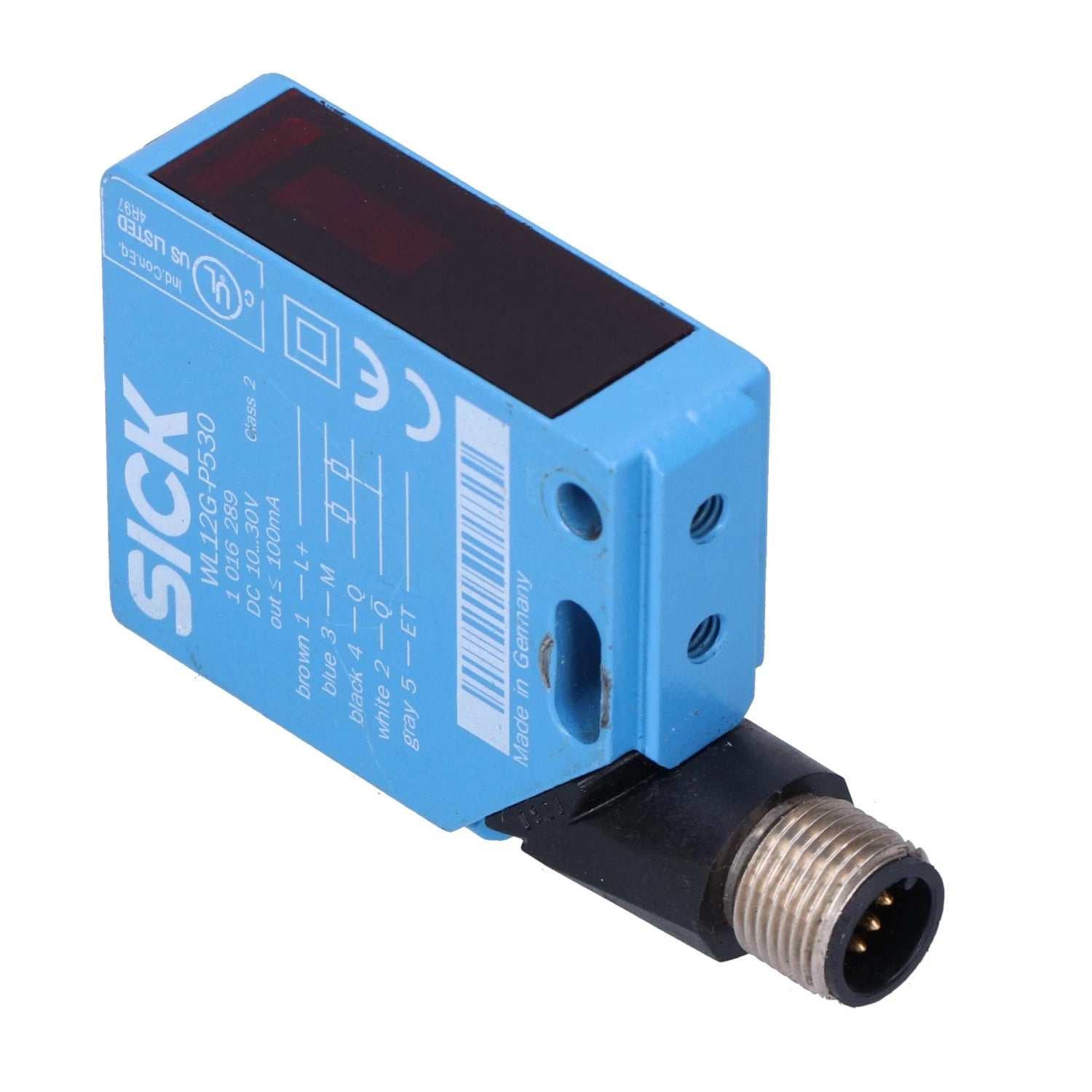

Product Description P/N: WL12G-P530
Description
The SICK WL12G-P530 is a retro-reflective photoelectric sensor designed for reliable detection of clear and transparent materials in industrial automation systems. This sensor uses polarized visible red light and provides PNP switching outputs for accurate signal control. It is engineered for stable performance in packaging, conveying, and material handling applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Sensors |
| Part Number | WL12G-P530 |
| Subcategory | Photoelectric Sensors |
| Sensor Type | Retro-Reflective Photoelectric Sensor |
| Detection Principle | Retro-Reflective, Polarized |
| Light Source | LED, Visible Red Light |
| Sensing Range | 0 to 2.7 m |
| Maximum Sensing Range | 0 to 3 m |
| Output Type | PNP (Q and QNOT) |
| Switching Mode | Light Switching |
| Supply Voltage | 10–30 VDC |
| Power Consumption | 65 mA |
| Response Time | 0.5 ms |
| Adjustment Method | Potentiometer |
| Connection Type | M12 Male Connector |
| Connector Pins | 5-pin |
| Operating Temperature | –25 °C to +60 °C |
| Storage Temperature | –40 °C to +75 °C |
| Dimensions (W × H × D) | 15 × 49 × 41.5 mm |
| Weight | 0.15 lbs (approx.) |
Information About WL12G-P530
The WL12G-P530 is part of SICK’s WL12G photoelectric sensor series, developed specifically for clear material detection using retro-reflective sensing principles. It incorporates polarization filtering to reliably detect transparent objects while suppressing reflections from the reflector. The sensor supports PNP outputs with complementary switching signals and features adjustable sensitivity via a potentiometer. Designed for industrial environments, it operates on a wide DC voltage range and connects using a standardized 5-pin M12 connector.
Key Features:
- Retro-Reflective Sensing Principle: Detects objects by interruption of a reflected light beam.
- Clear Material Detection Capability: Optimized for transparent and semi-transparent objects.
- Polarized Visible Red Light: Improves detection reliability by reducing false reflections.
- PNP Output with Complementary Signals: Provides Q and QNOT outputs for flexible control logic.
- Adjustable Sensitivity Control: Integrated potentiometer allows fine tuning for application needs.
- Fast Response Time: 0.5 ms switching speed supports high-speed automation processes.
- Compact Sensor Housing: Designed for space-efficient industrial installations.
The WL12G-P530 delivers the reliability and precision required for clear material detection in industrial photoelectric sensing applications.
