WL260-S230 | SICK Retro-Reflective Photoelectric Sensor, Relay Output
- Regular price
- $839.00
- Sale price
- $839.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WL260-S230
Description

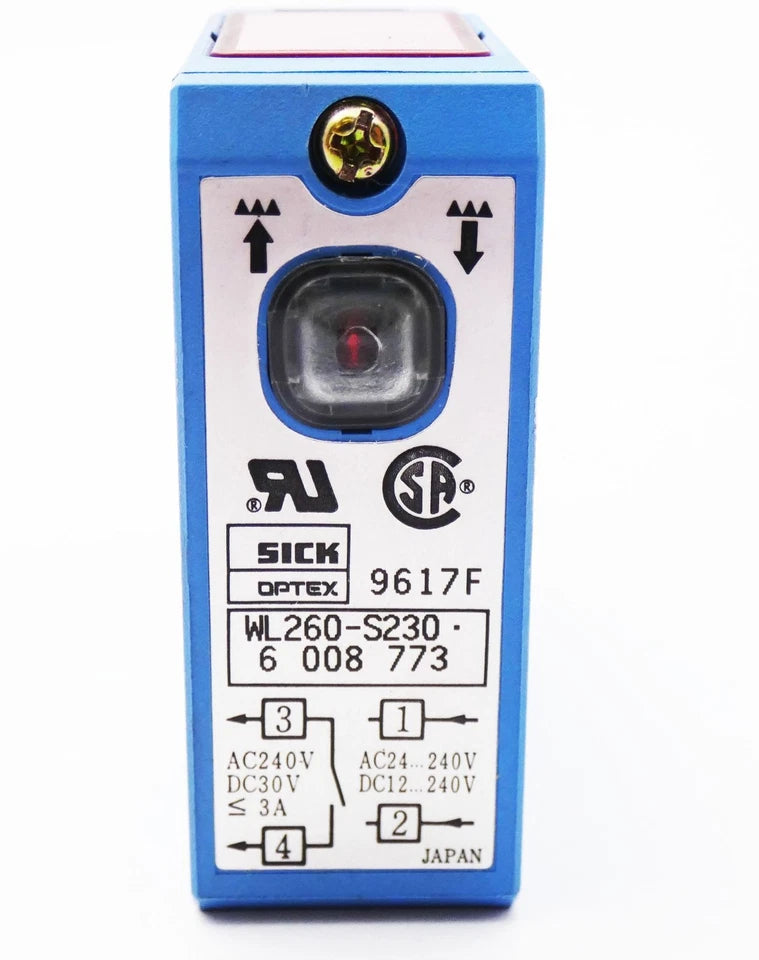

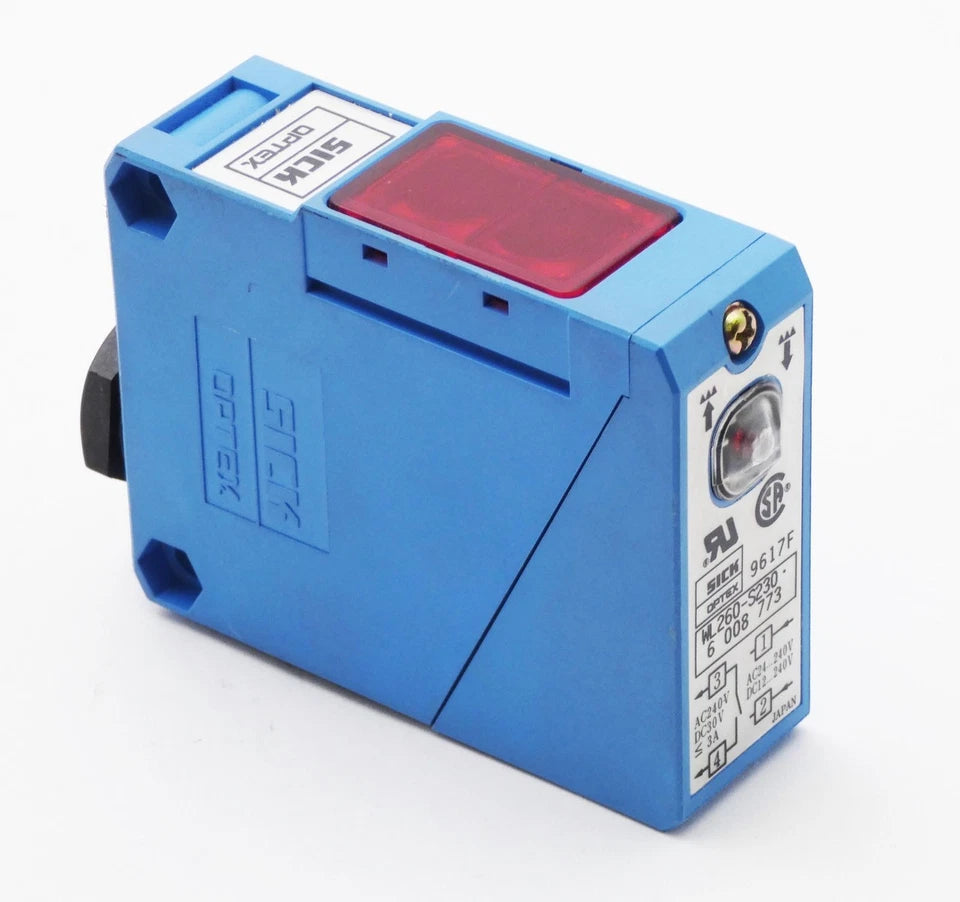

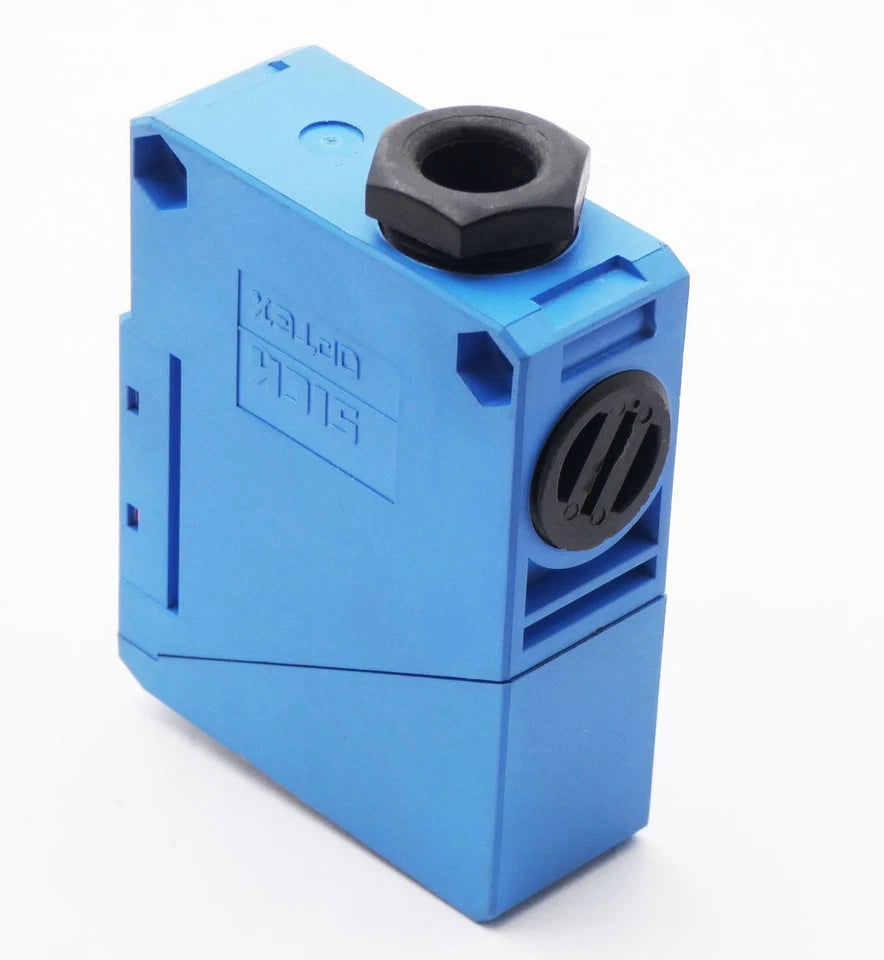

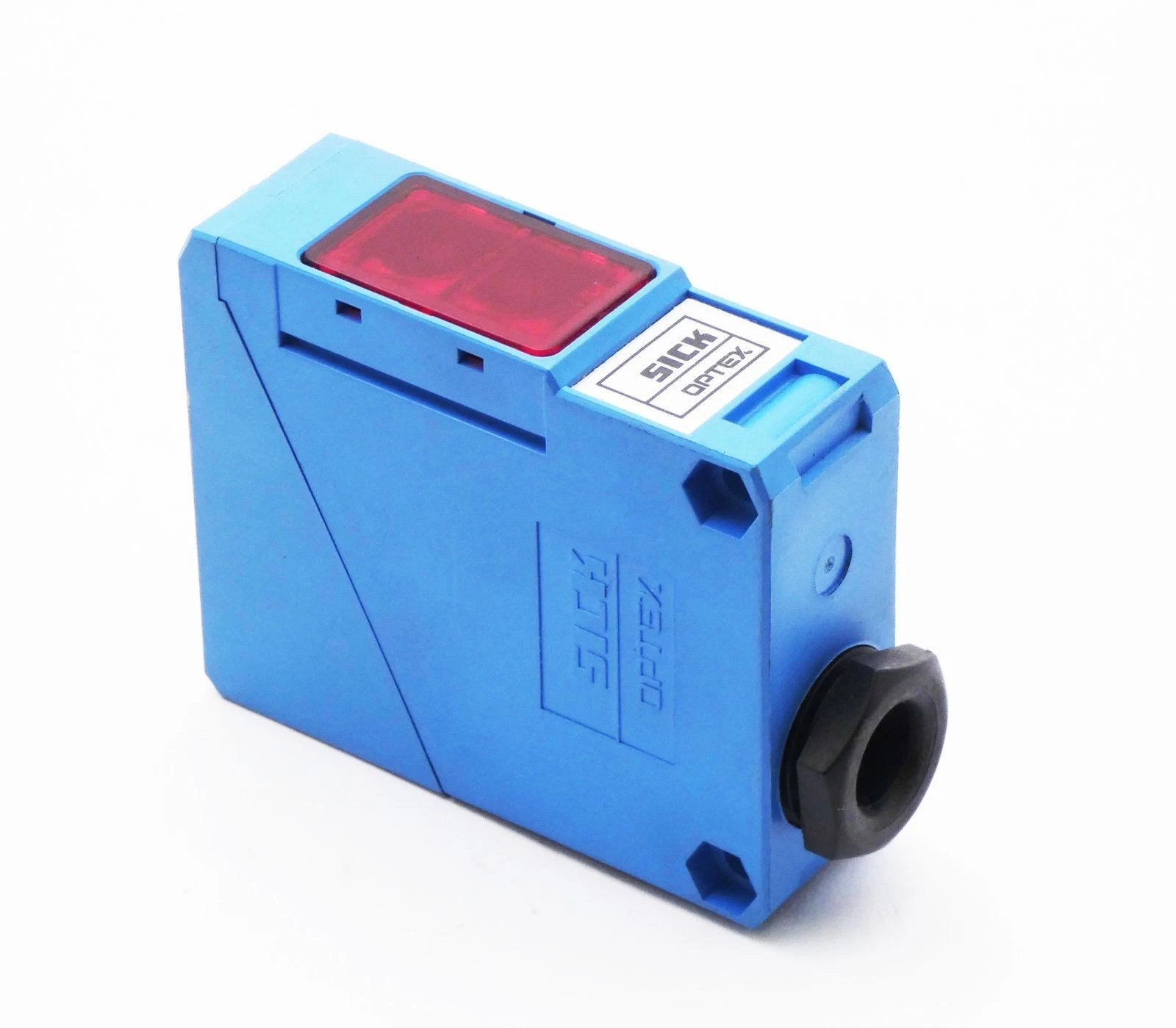

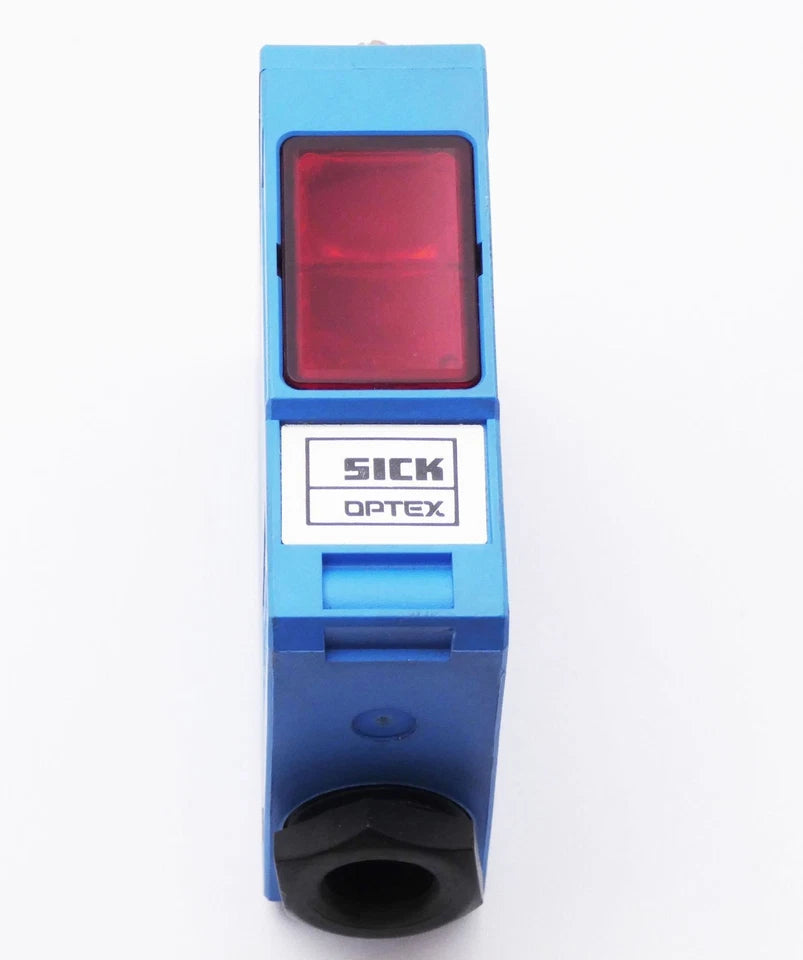

The SICK WL260-S230 is a retro-reflective photoelectric sensor designed for long-range object detection in industrial automation environments. This sensor uses a reflective operating principle and provides a relay-based output for flexible control integration. It is engineered for dependable switching performance across a wide supply voltage range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Sensors |
| Part Number | WL260-S230 |
| Subcategory | Photoelectric Sensors |
| Sensor Type | Retro-Reflective Photoelectric Sensor |
| Operating Principle | Optical, Retro-Reflective |
| Sensing Range (Max) | 11 m |
| Sensor Output | SPDT Relay |
| Switching Current | 3 A |
| Response Time | 20 ms |
| Supply Voltage (DC) | 12–240 V |
| Supply Voltage (AC) | Up to 240 VAC |
| Output Load Type | AC / DC |
| Application | Object Detection |
| Series | WL260 Series |
| Weight | 1.1 lbs (approx.) |
Information About WL260-S230
The WL260-S230 is part of SICK’s WL260 photoelectric sensor series, developed for robust detection tasks requiring extended sensing distances. It operates as a retro-reflective photoelectric switch, detecting objects by interrupting a reflected light beam from a reflector. The sensor features an SPDT relay output, allowing direct switching of higher-load circuits without additional interface components. Designed for industrial use, it supports both AC and DC supply voltages and maintains consistent performance under varying electrical conditions.
Key Features:
- Retro-Reflective Sensing Principle: Detects objects reliably using a reflector-based optical path.
- Long Sensing Range: Supports detection distances up to 11 meters.
- SPDT Relay Output: Enables direct control of AC or DC loads without external relays.
- Wide Supply Voltage Range: Operates from 12 VDC up to 240 VAC for flexible system integration.
- High Switching Capacity: Rated for loads up to 3 A.
- Industrial Response Speed: 20 ms response time supports standard automation processes.
- Rugged Sensor Design: Built for continuous operation in industrial environments.
The WL260-S230 delivers the reliability and precision required for long-range retro-reflective object detection in industrial automation systems.
