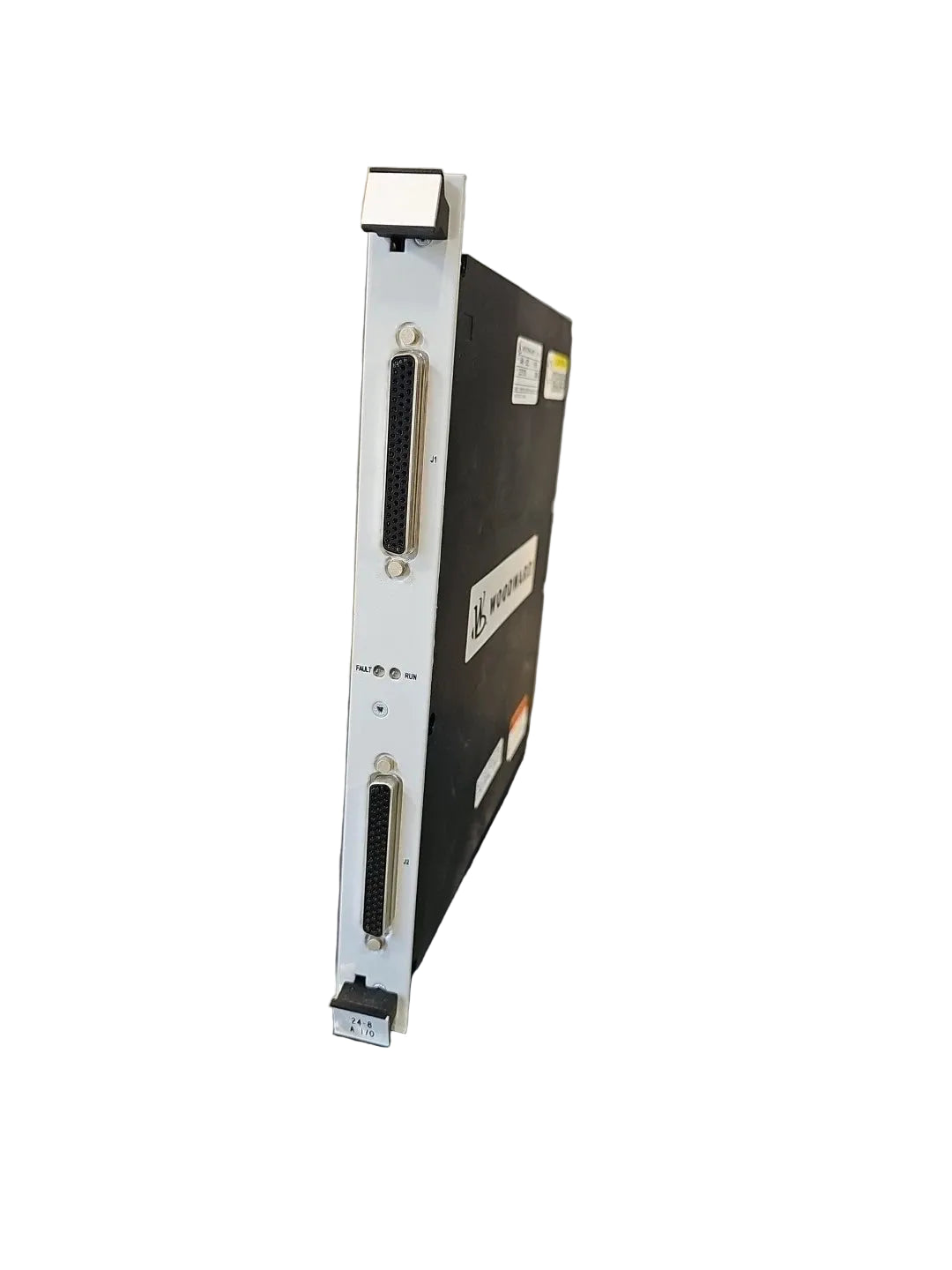

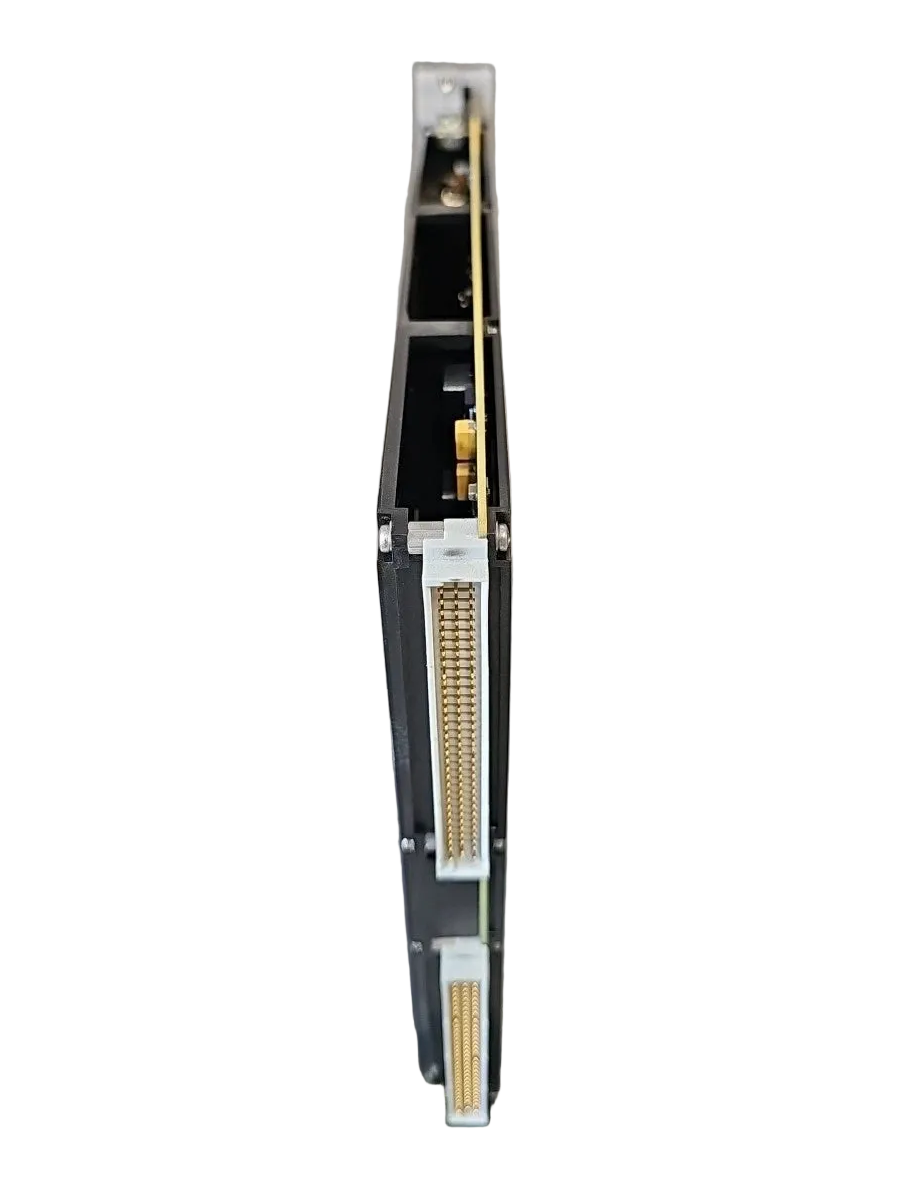

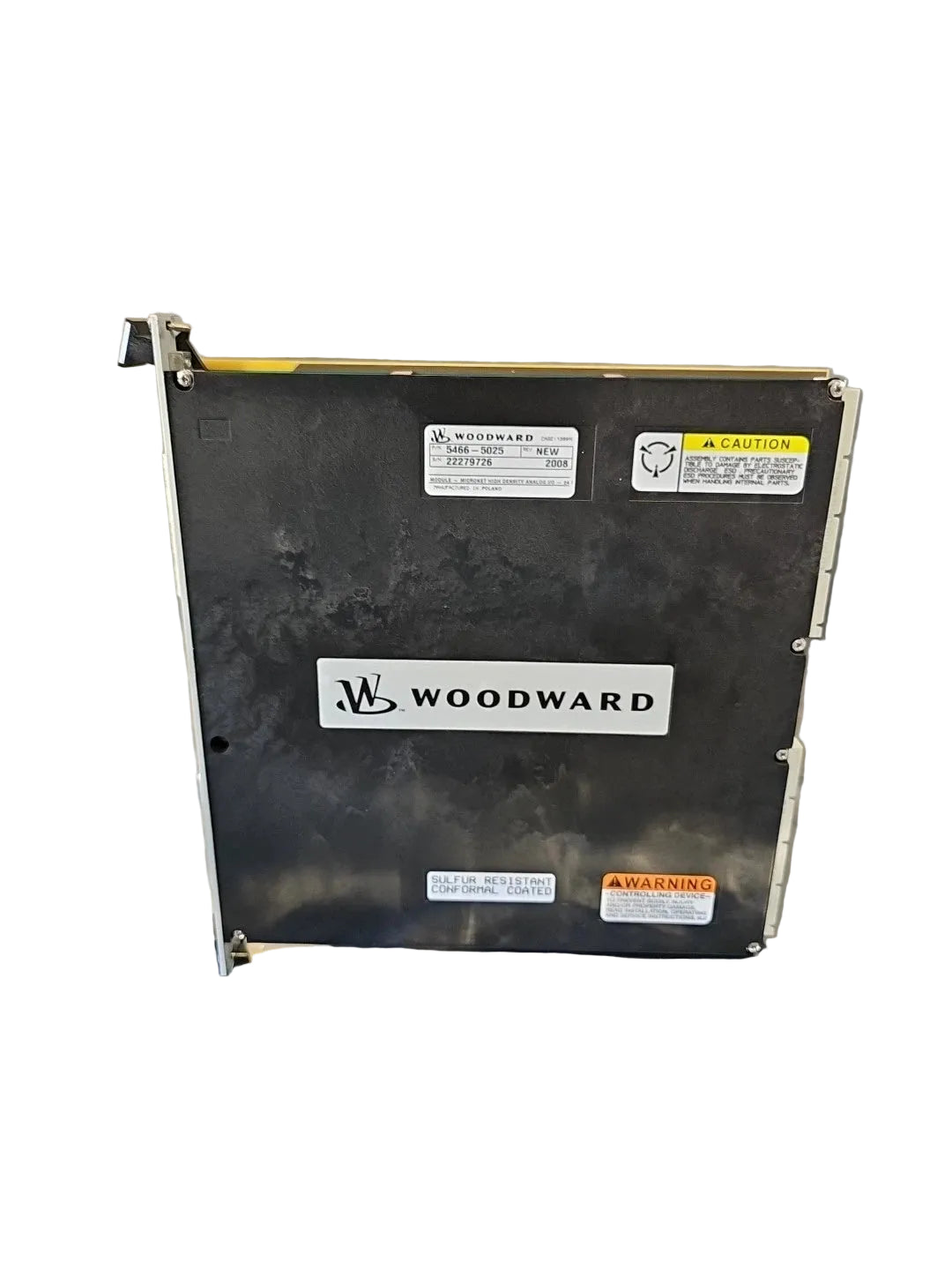

Woodward 5466-5025 MicroNet High-Density 24-Channel Analog I/O Module
- Regular price
- $5,599.00
- Sale price
- $5,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5466-5025
Description
The Woodward 5466-5025 is a MicroNet high-density analog I/O module designed for signal acquisition and control in industrial automation and turbine management systems. It provides 24 selectable analog input channels for processing 0–5 V or 4–20 mA field signals and supports integration with RTD plug-in modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Woodward |
| Category | Industrial Automation |
| Part Number | 5466-5025 |
| Subcategory | Analog I/O Modules |
| Product Series | MicroNet |
| Module Type | High-Density Analog I/O Module |
| System Architecture | Simplex |
| Analog Input Channels | 24 |
| Input Signal Range | 0–5 V or 4–20 mA |
| Input Configuration | Selectable |
| RTD Support | Yes, with Compatible RTD Plug-Ins |
| Primary Function | Analog Signal Acquisition and Processing |
| Field Signals | Voltage, Current, and RTD-Based Measurements |
| Application | Industrial and Process Control Systems |
| Typical Industries | Power Generation, Turbine Control, Process Automation |
| Software Requirement | Coder Version 5.08 or Later |
| Weight | 1.6 lbs |
Information About 5466-5025
The 5466-5025 is a high-density analog I/O module from the Woodward MicroNet control platform, primarily configured for simplex control systems. Its architecture provides 24 analog input channels that can be individually configured for 0–5 V or 4–20 mA signals, allowing multiple field instruments to interface with a centralized control system. The module supports RTD plug-ins for temperature measurement applications and interfaces with field devices through the applicable termination hardware. It is intended for demanding industrial control environments such as power generation, turbine control, process automation, and related equipment monitoring systems.
Key Features:
- High-Density Analog Inputs: Provides 24 analog input channels for centralized field signal acquisition.
- Selectable Input Signals: Supports configurable 0–5 V and 4–20 mA analog input ranges.
- RTD Support: Compatible with RTD plug-in modules for temperature measurement applications.
- MicroNet Integration: Designed for installation and operation within Woodward MicroNet control systems.
- Simplex System Application: Primarily intended for simplex control architecture configurations.
- Industrial Signal Processing: Processes analog signals from transmitters, sensors, and other field instrumentation.
- Field Interface Capability: Connects control-system electronics with external instrumentation through compatible termination hardware.
- Industrial Control Application: Suitable for turbine, power generation, process control, and industrial automation systems.
The 5466-5025 delivers the reliability and precision required for high-density analog signal acquisition and processing in industrial control systems.
