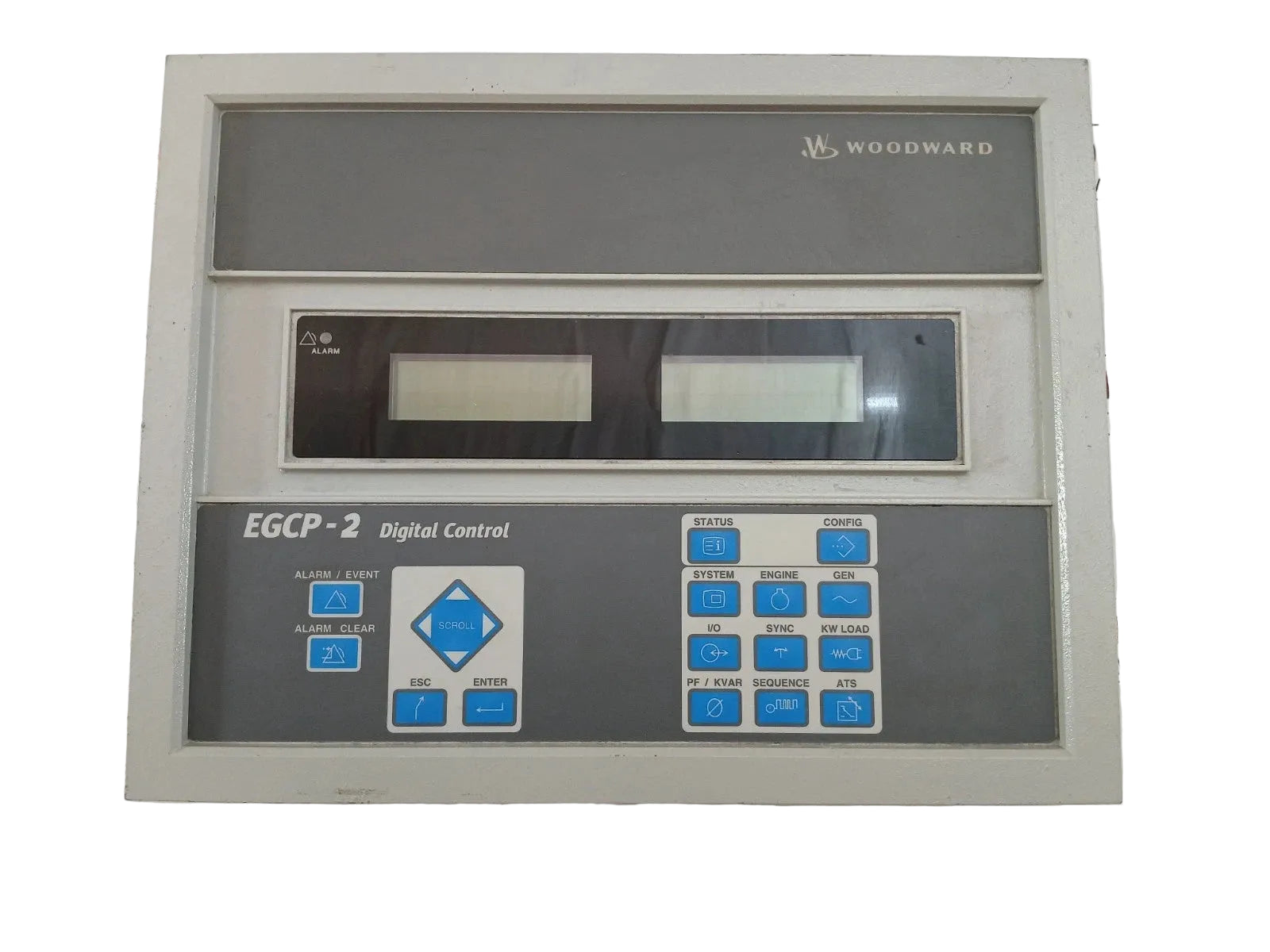

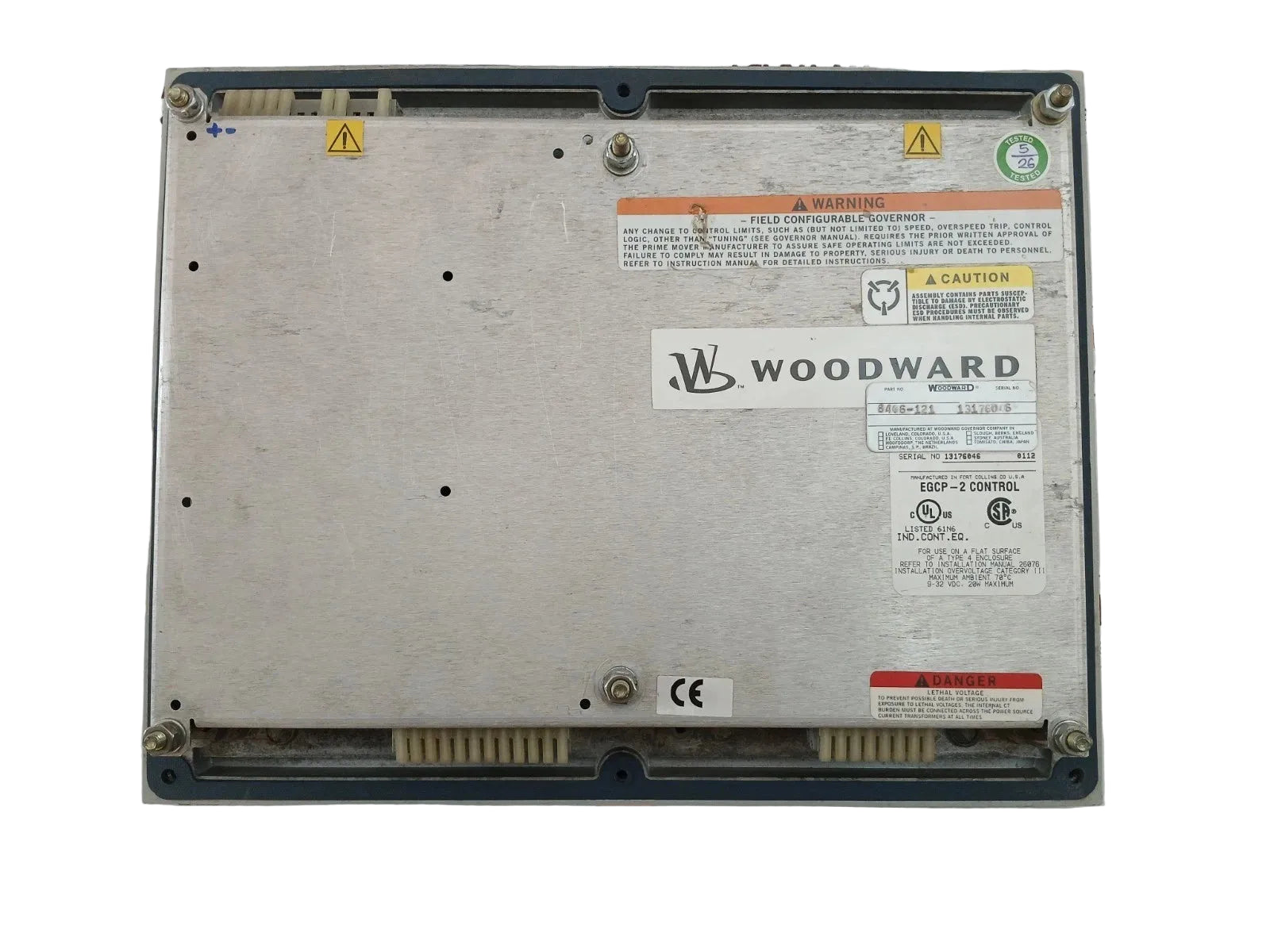

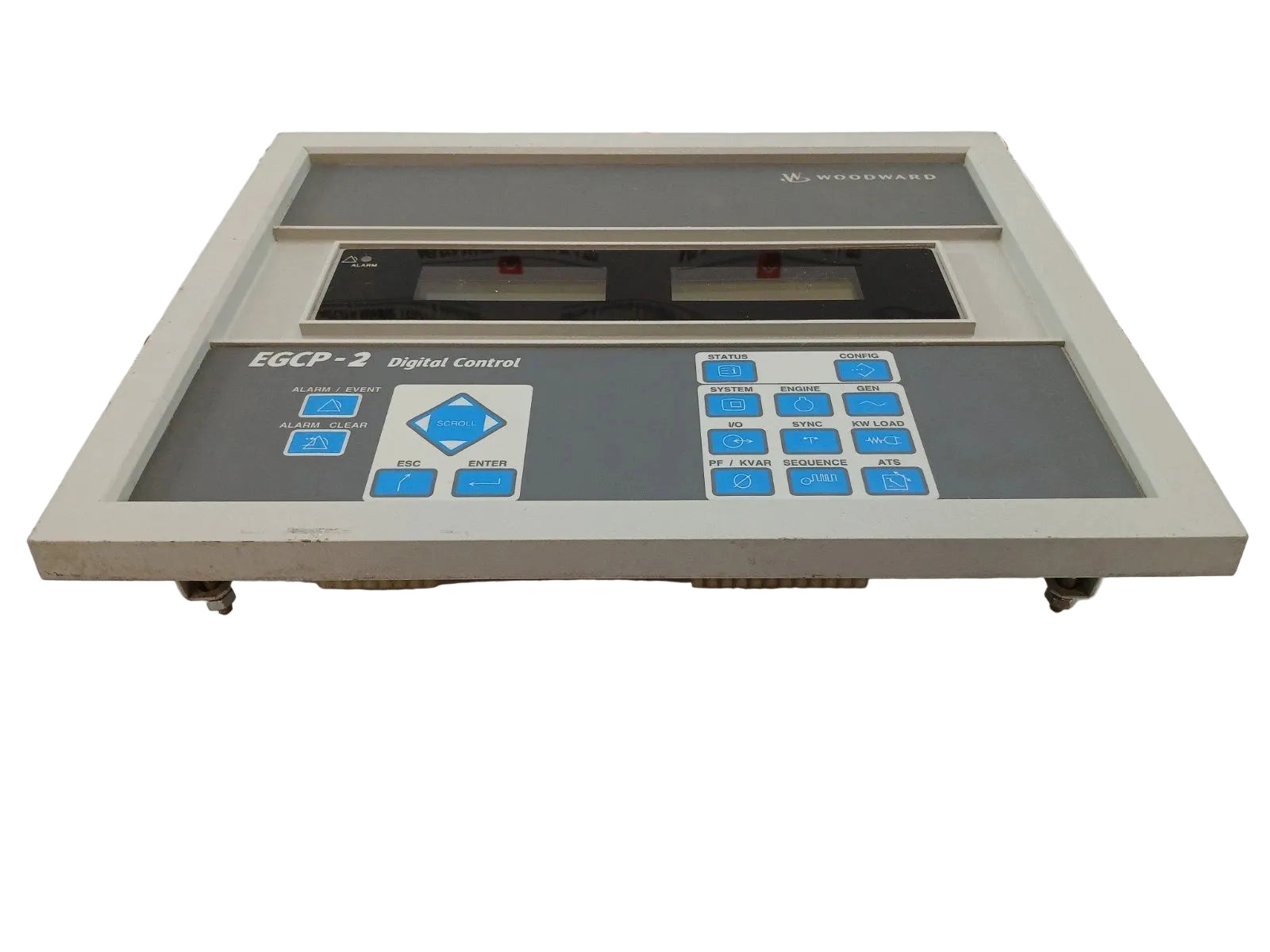

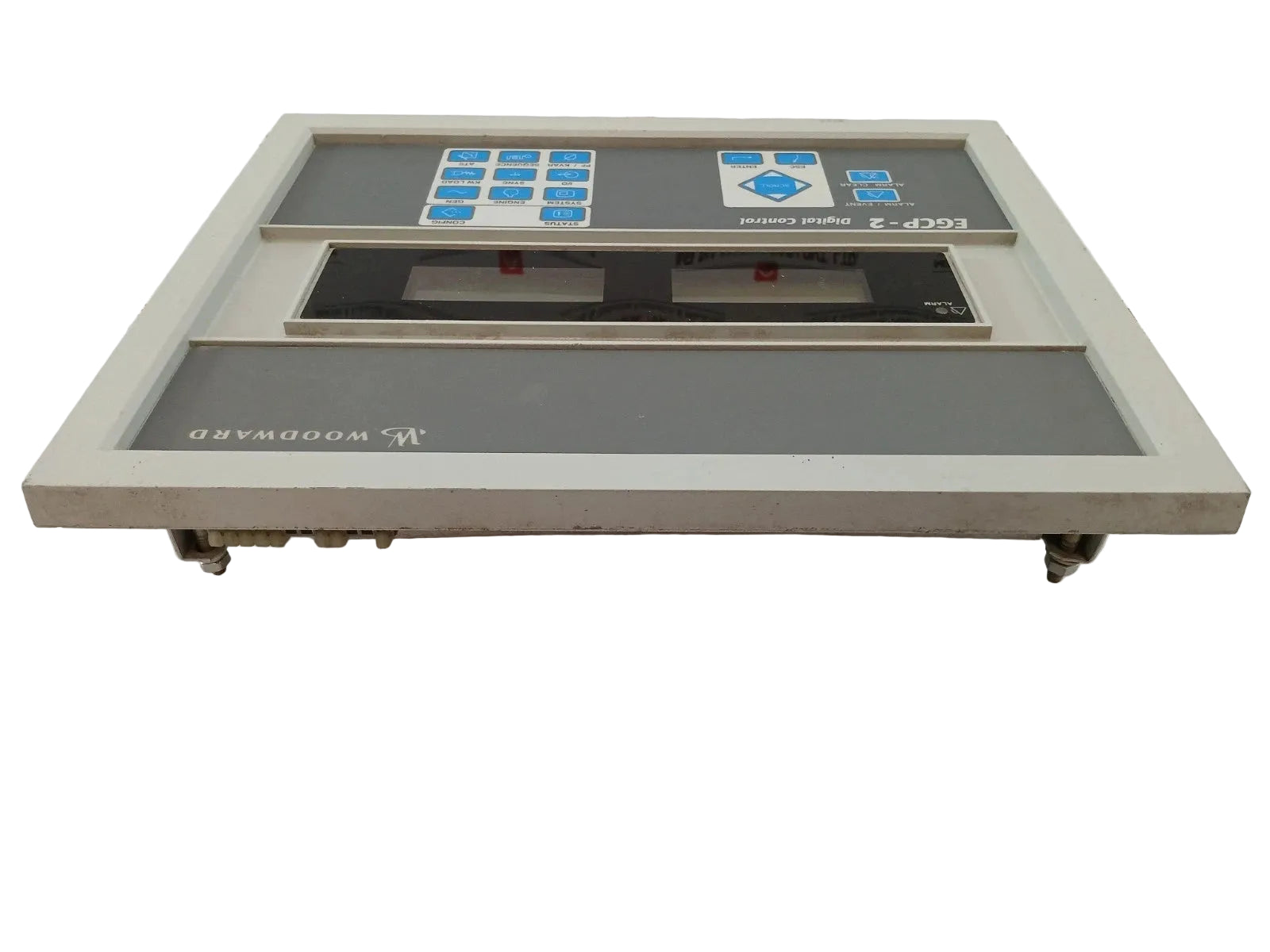

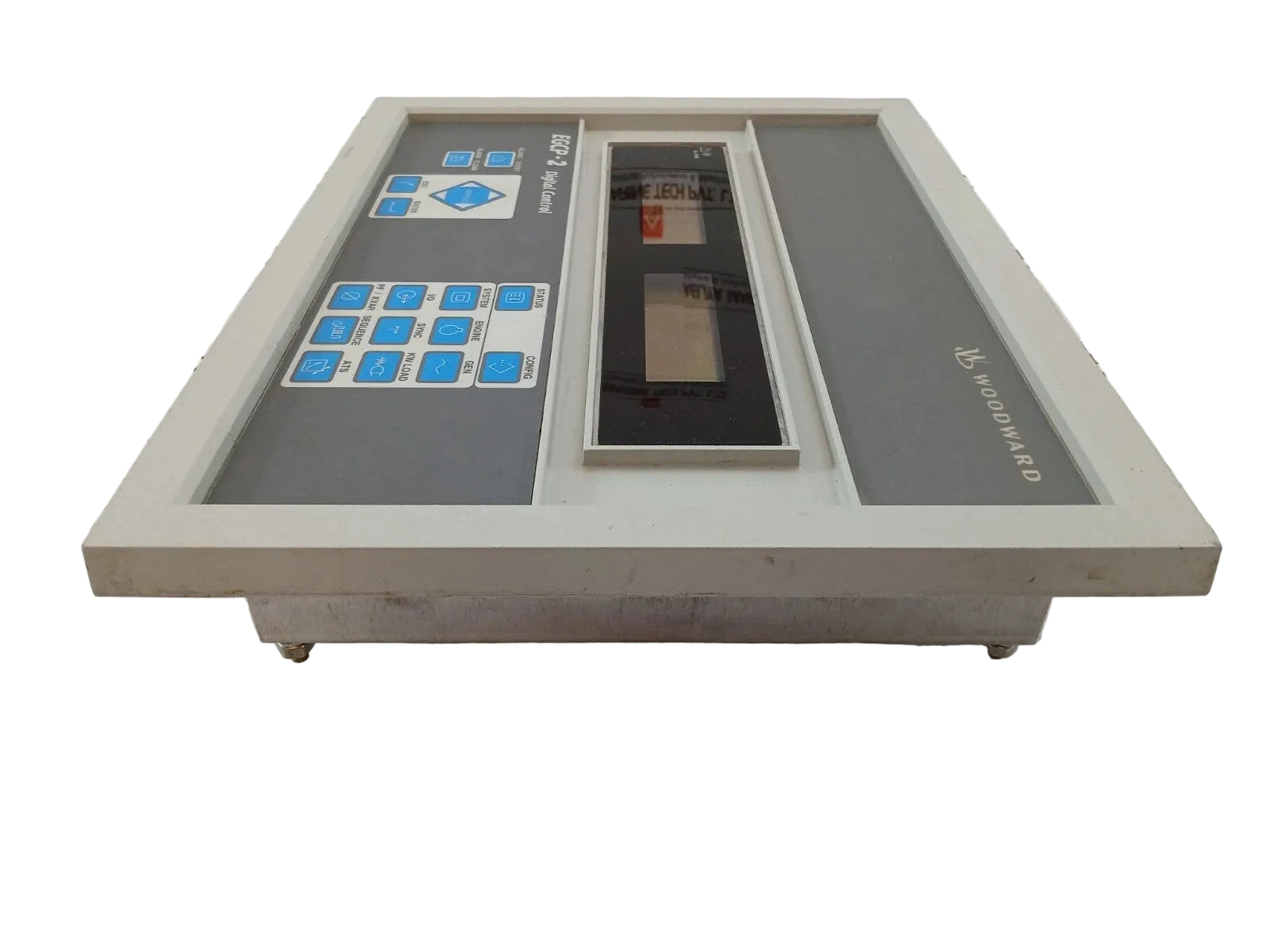

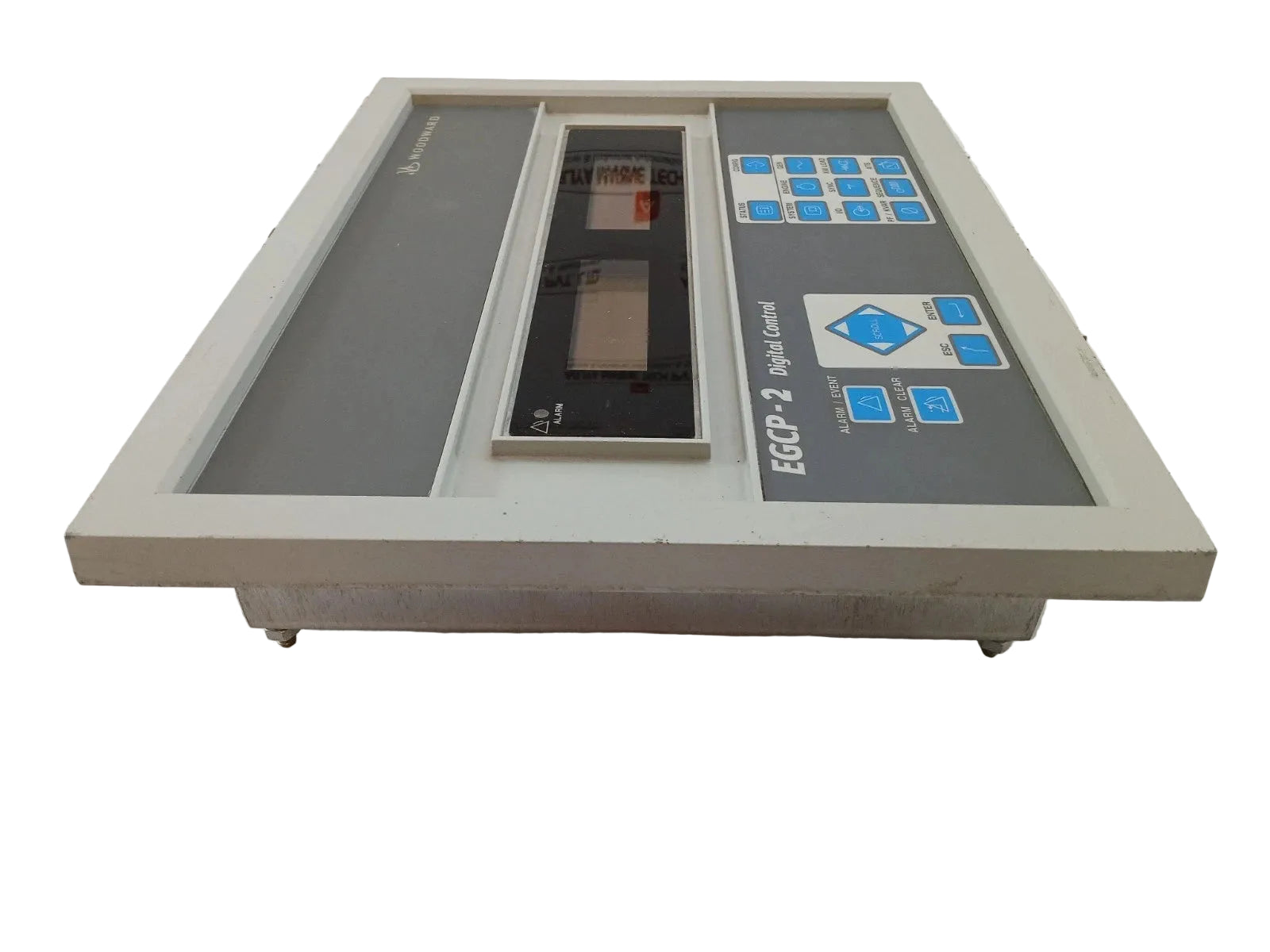

Woodward 8406-121 EGCP-2 Engine Generator Controller Operator Interface
- Regular price
- $5,999.00
- Sale price
- $5,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8406-121
Description
The Woodward 8406-121 is an EGCP-2 microprocessor-based generator controller designed to automate, synchronize, monitor, and protect diesel or gas engine generator sets. It integrates engine control, real and reactive load management, generator sequencing, and protective functions for stand-alone or utility-paralleled power generation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Woodward |
| Category | HMI / MMI / OIT |
| Part Number | 8406-121 |
| Subcategory | Operator Interface |
| Series | EGCP-2 |
| Product Type | Engine Generator Controller |
| Power Supply Rating | 9–32 VDC, 24 VDC Nominal |
| Potential Transformer Input | 50–150 VAC, 150 VAC Maximum |
| Current Transformer Input | 0–5 A RMS |
| Analog Input | 0–5 VDC or 4–20 mA DC |
| Discrete Inputs | 16 Inputs, 5 mA Each |
| Display Type | Two Backlit LCD Displays |
| Communication | Modbus / PC Interface |
| Operating Temperature | –20 to +70 °C (–4 to +158 °F) |
| Storage Temperature | –40 to +105 °C (–40 to +221 °F) |
| Dimensions | 282 × 358 × 69 mm |
| Weight | 6.39 lbs |
Information About 8406-121
The 8406-121 is a Woodward EGCP-2 Engine Generator Control Package developed for small- to medium-sized generator installations. Its microprocessor-based architecture combines generator synchronization, automatic start/stop sequencing, kW load control, kVAR control, and engine protection within a single control platform. The unit provides two backlit LCD displays with keypad operation for viewing generator data, operating status, alarms, and configurable setpoints. It can operate with automatic voltage regulators and speed controls in stand-alone applications or within networks of up to eight generator sets for base-load, peak-shaving, and backup power configurations.
Key Features:
- EGCP-2 Control Platform: Integrates generator automation, engine management, synchronization, and protection functions.
- Dual LCD Interface: Two backlit displays provide operating data, system status, alarms, and configuration information.
- Generator Synchronization: Coordinates generator frequency, phase, and voltage conditions for controlled connection to the electrical system.
- Load Management: Provides real kW and reactive kVAR control for generator load regulation.
- Automatic Sequencing: Supports coordinated start, stop, and sequencing of multiple generator sets.
- Flexible Analog Input: Accepts 0–5 VDC or 4–20 mA DC analog input signals.
- Discrete Input Interface: Provides 16 discrete inputs rated at 5 mA each when closed to switch common.
- Modbus Communications: Supports communication and system integration for remote monitoring and control applications.
The 8406-121 delivers the reliability and precision required for generator synchronization, load management, sequencing, and engine protection applications.
