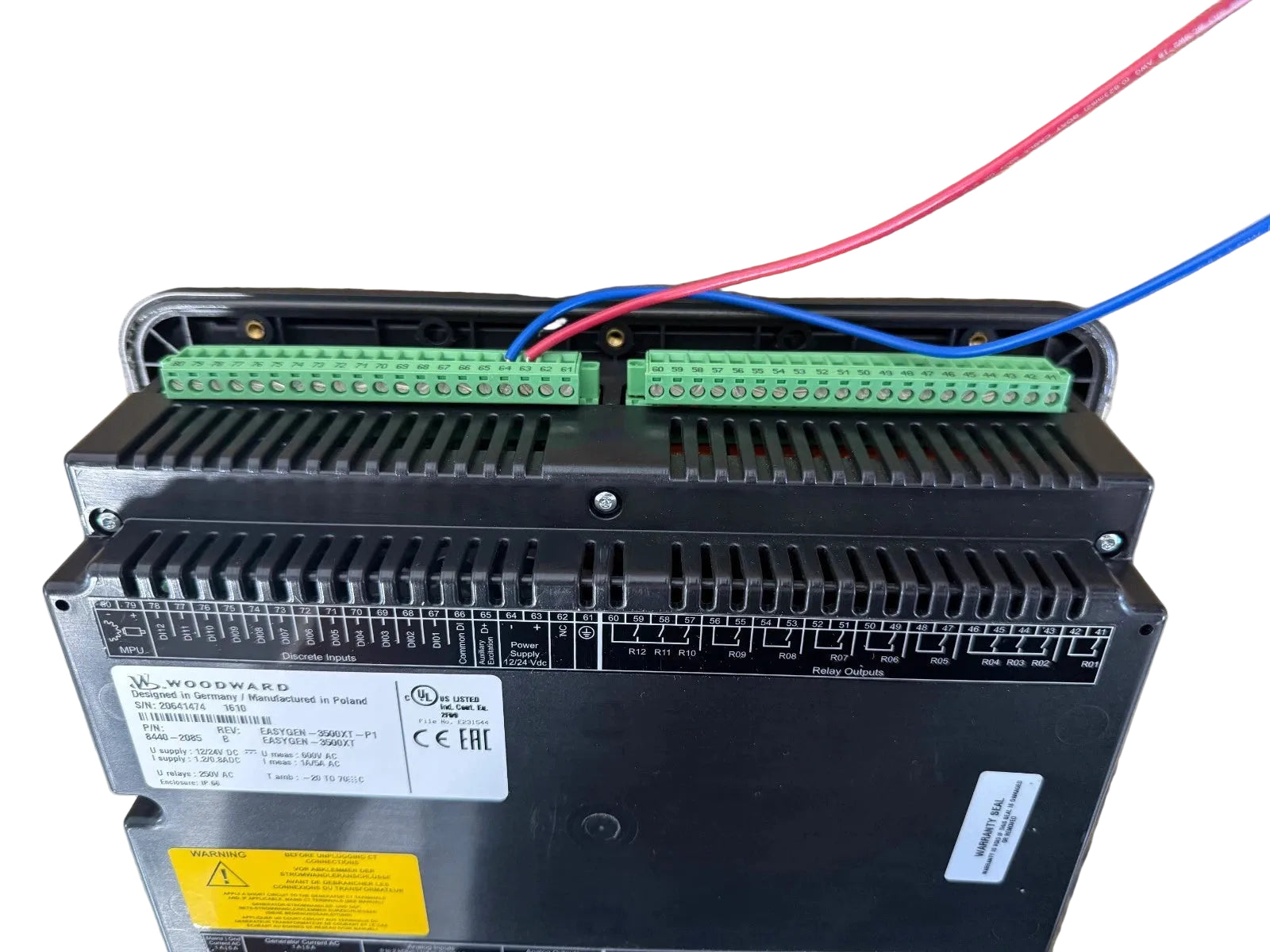

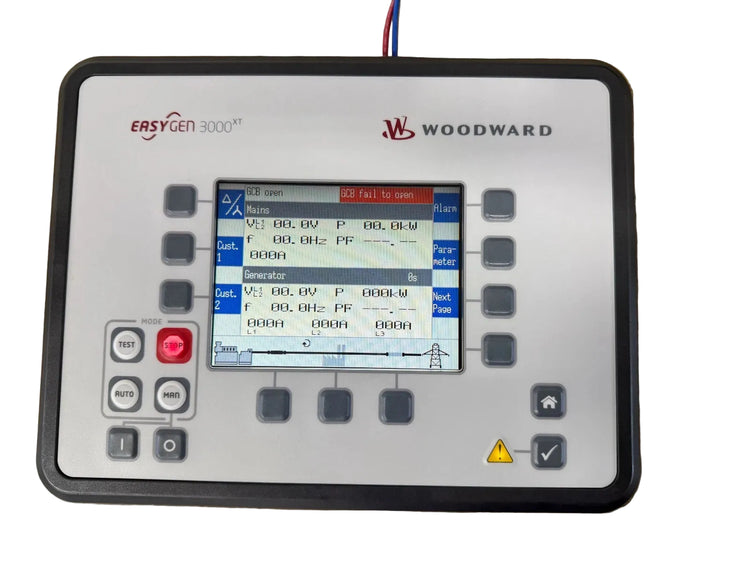

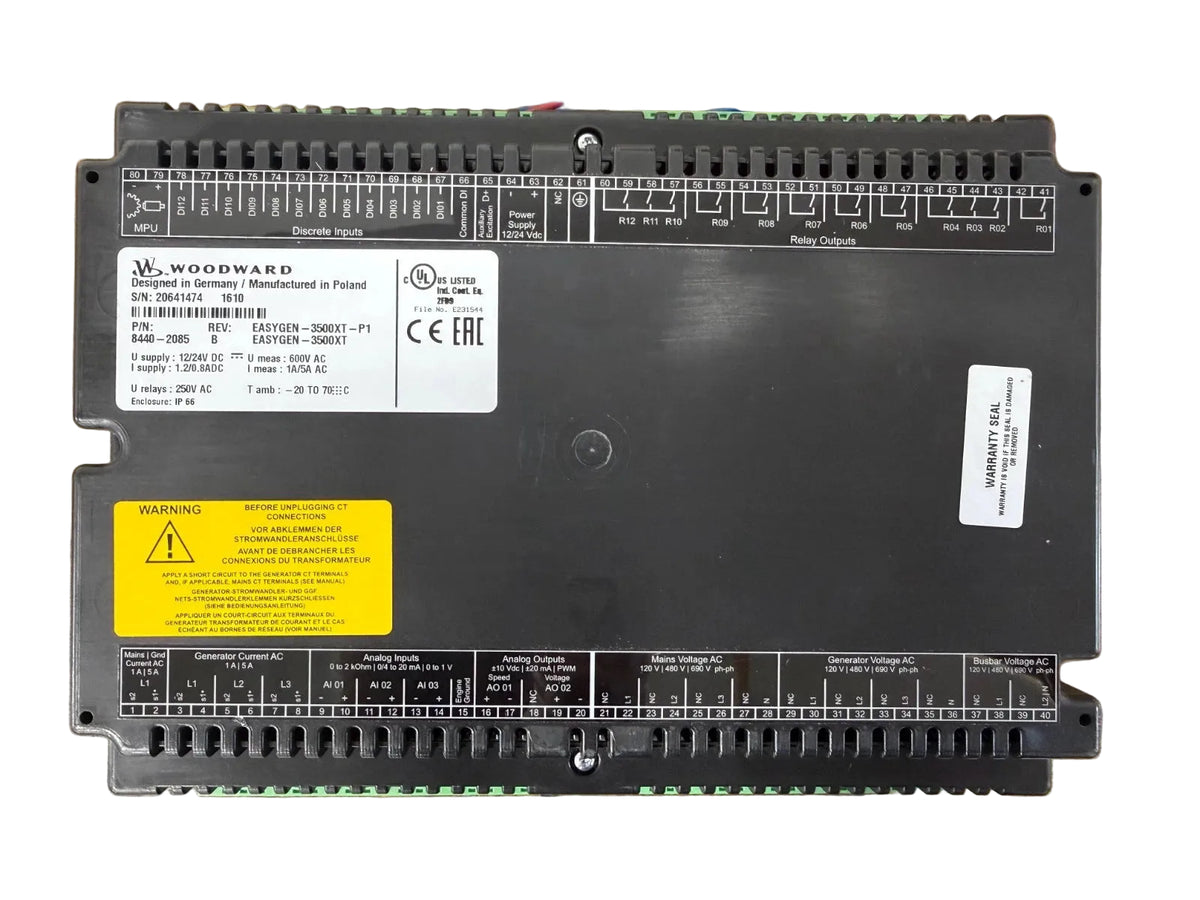

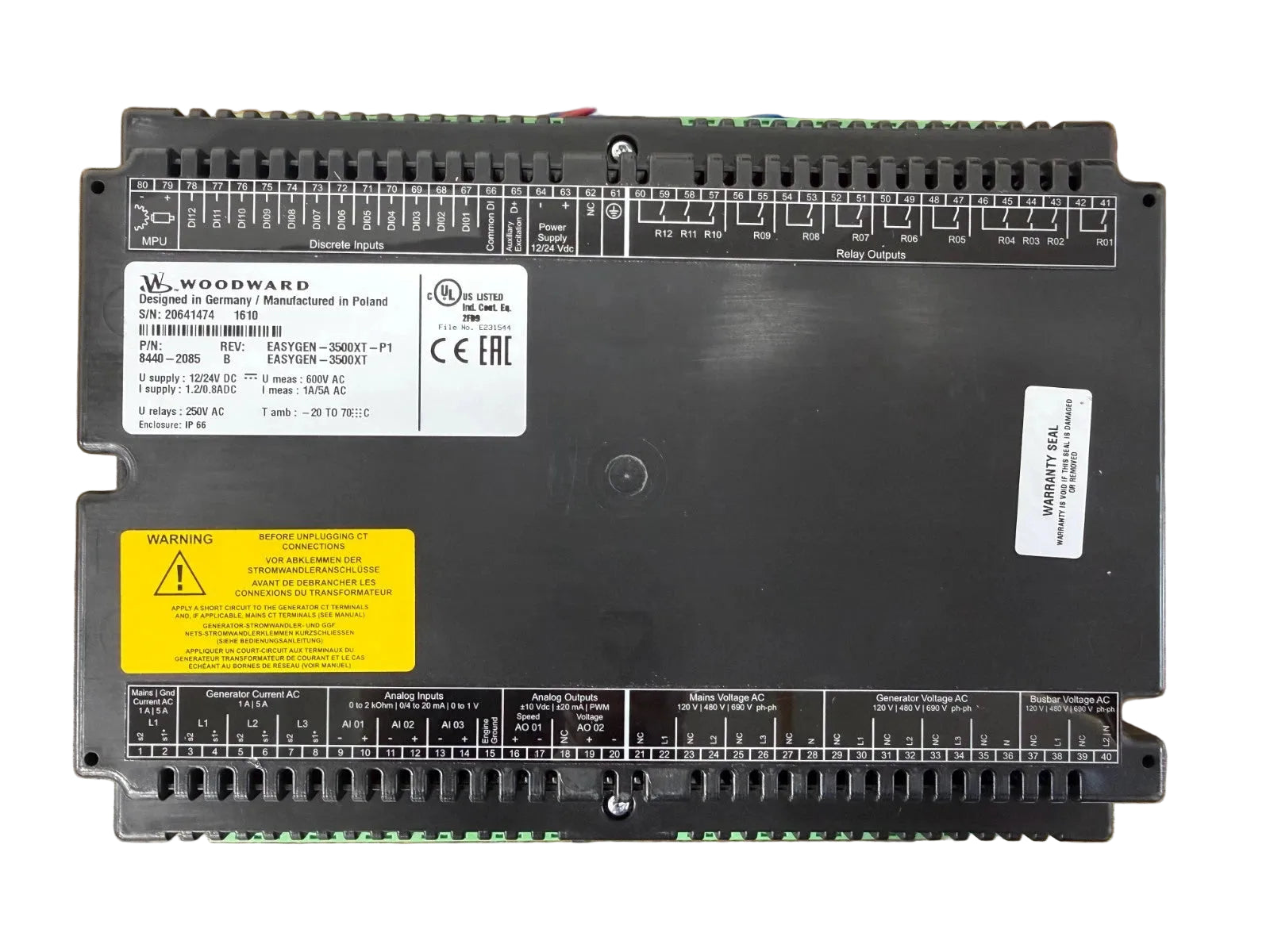

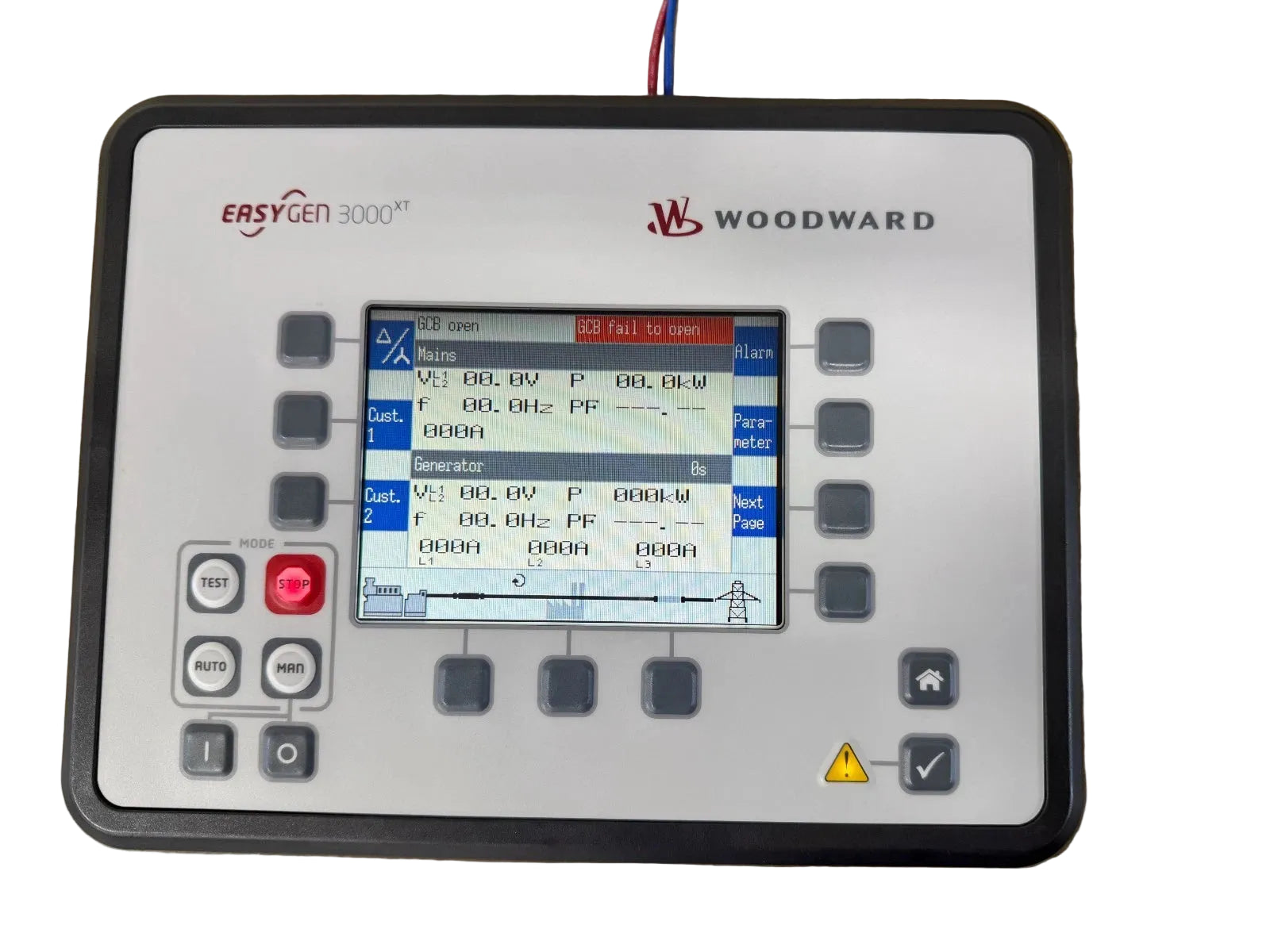

Woodward 8440-2085 easYgen-3500XT-P1 Genset Controller
- Regular price
- $12,399.00
- Sale price
- $12,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8440-2085
Description
The Woodward 8440-2085 is an easYgen-3500XT-P1 genset controller designed for generator management, synchronization, protection, and complex paralleling applications. It supports multi-generator installations with load sharing, breaker control, CANopen connectivity, and multiple communication interfaces. The controller is designed for industrial power-generation systems requiring coordinated control of generators, utility feeds, and bus segments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Woodward |
| Category | Generator Control |
| Part Number | 8440-2085 |
| Subcategory | Genset Controllers |
| Product Type | Genset Control |
| Series | easYgen-3000 |
| Model | easYgen-3500XT-P1 |
| Display | Yes |
| Supported Gensets | Up to 32 |
| Supported LS-5 Controls | Up to 16 |
| Operating Modes | AUTO, MANUAL, STOP, TEST |
| Measuring Frequency | 50/60 Hz (40–85 Hz) |
| Alternator Windings | 3p-3w, 3p-4w, 1p-2w, 1p-3w |
| Direct Voltage Measurement | Up to 690 Vac |
| Setting Range | 50–650,000 Vac |
| Discrete Outputs | Up to 12 |
| Alarm Inputs | 12 |
| Analog Inputs / Outputs | 3 / 2 |
| External Discrete CANopen I/O | 32 |
| Modbus RTU Interface | RS-485 |
| USB Serial Interfaces | 1 |
| CANopen Support | Yes |
| Operating Temperature | -20°C to 70°C |
| Maximum Operating Altitude | 4,000 m without derating |
| Maximum Power Consumption per Path | <0.15 W |
| Manual Reference | 37583 |
| Weight | 4.1 lbs |
Information About 8440-2085
The 8440-2085 is a Woodward easYgen-3000 series controller identified as the easYgen-3500XT-P1 configuration. It is designed for complex generator paralleling systems and can coordinate installations containing up to 32 gensets across multiple bus segments. The controller provides CANopen connectivity for integration with LS-5 circuit breaker controls and supports communication through interfaces including Ethernet, CAN, RS-485, and USB. Its control architecture supports generator and utility protection, synchronization, load sharing, breaker management, and AUTO, MANUAL, STOP, and TEST operating modes.
Key Features:
- Genset Management: Provides integrated control, monitoring, synchronization, and protection functions for generator installations.
- Multi-Genset Capability: Supports power-generation systems incorporating up to 32 generator sets.
- LS-5 Integration: Dedicated CANopen communication supports connection with up to 16 LS-5 circuit breaker controls.
- Paralleling Control: Designed for load sharing, run-up synchronization, emergency operation, utility feeds, and multi-bus configurations.

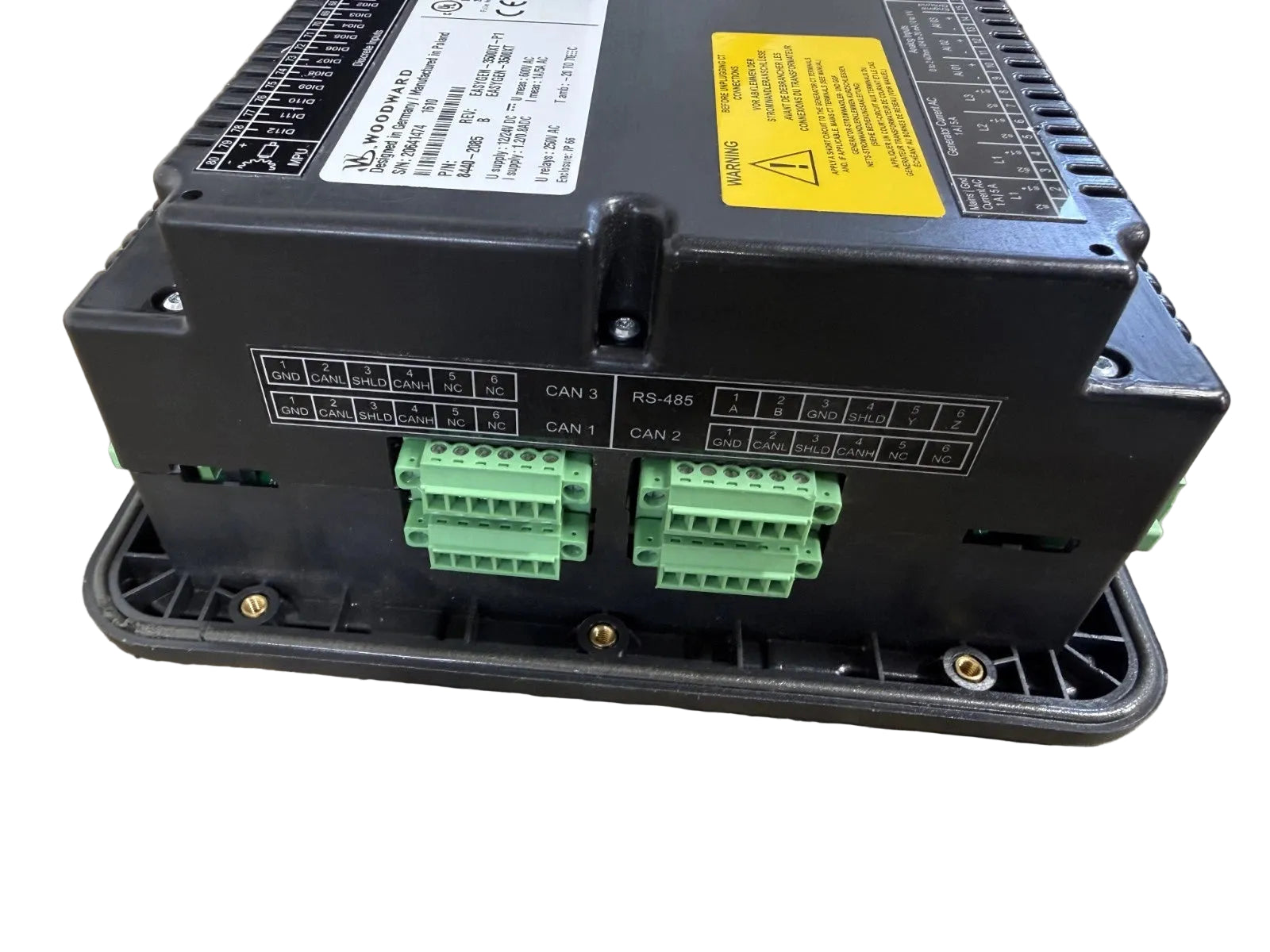

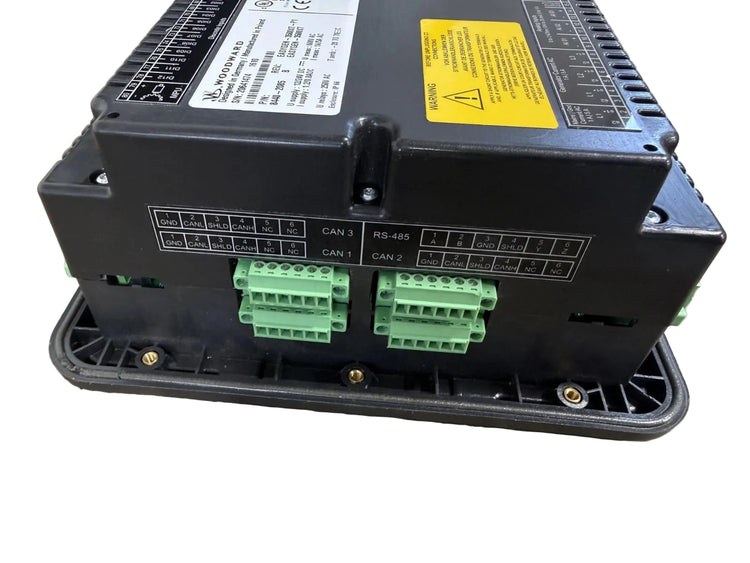

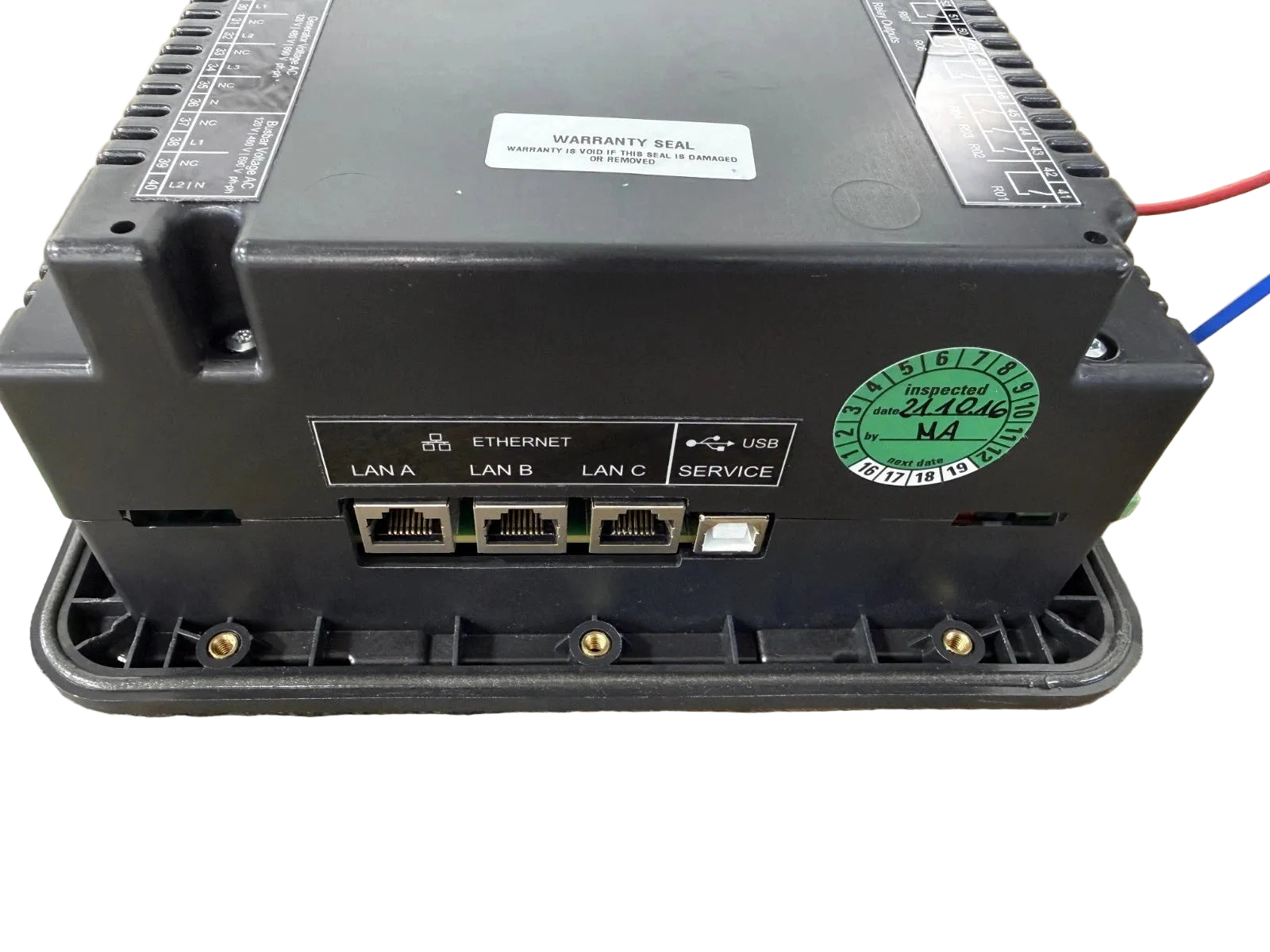

- Communication Interfaces: Supports CANopen, RS-485 Modbus RTU, USB serial communication, and Ethernet-based system integration.
- Generator Measurement: Supports 3-phase 3-wire, 3-phase 4-wire, single-phase 2-wire, and single-phase 3-wire alternator configurations.
- Operating Modes: Provides AUTO, MANUAL, STOP, and TEST modes for generator operation and service requirements.
- Environmental Capability: Specified for operation from -20°C to 70°C and installations up to 4,000 meters above sea level without derating.
The 8440-2085 delivers the reliability and precision required for generator synchronization, paralleling, protection, and multi-genset power management systems.
