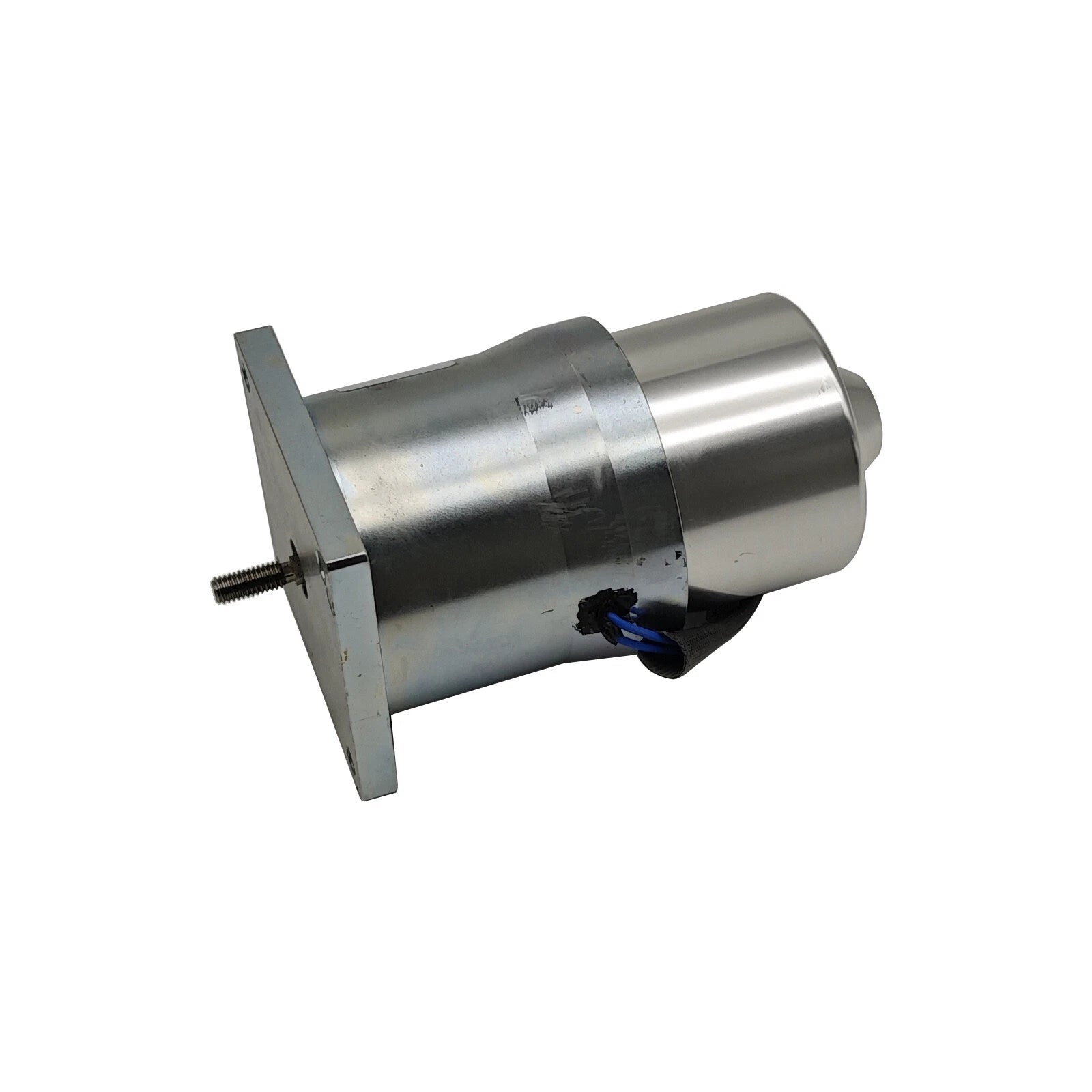

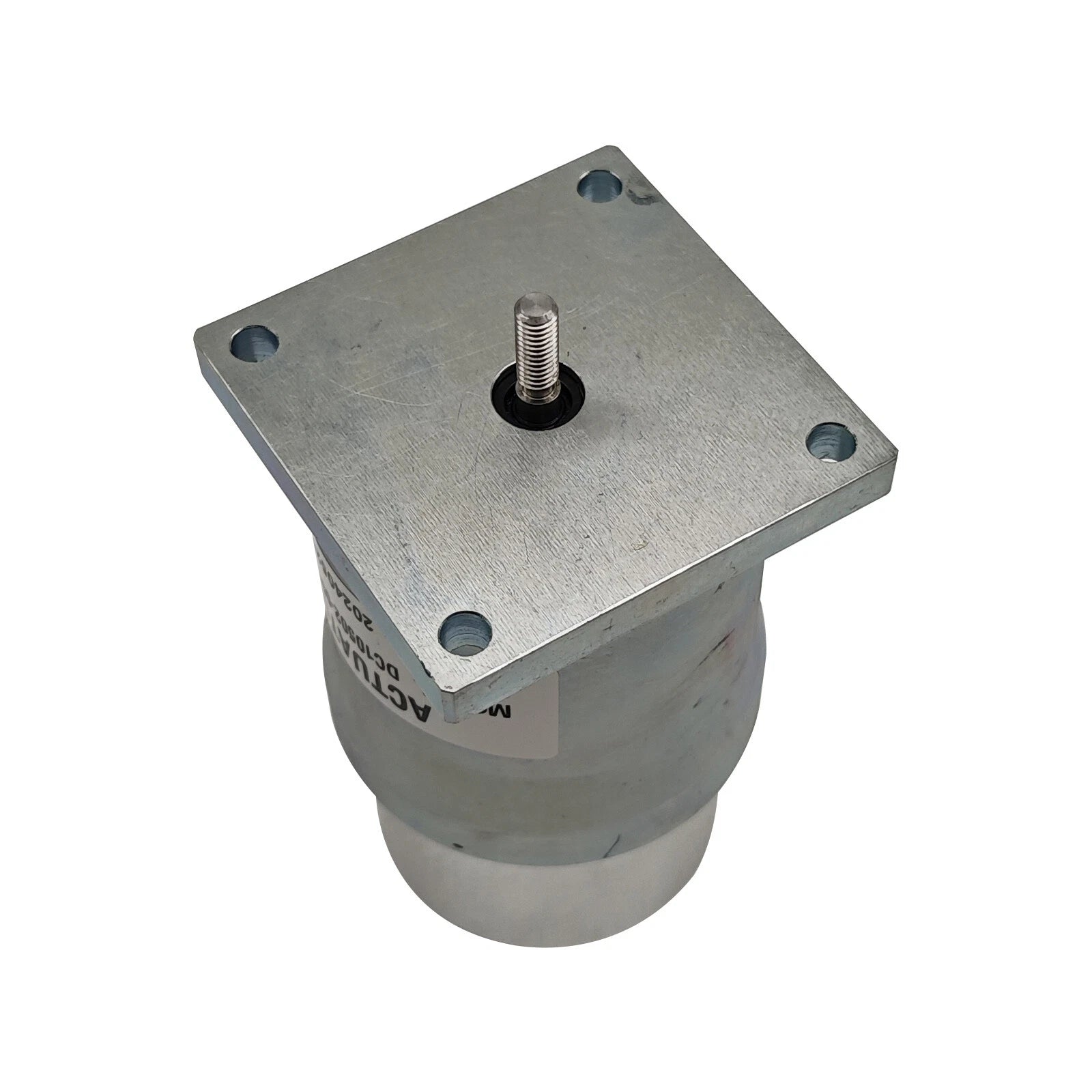

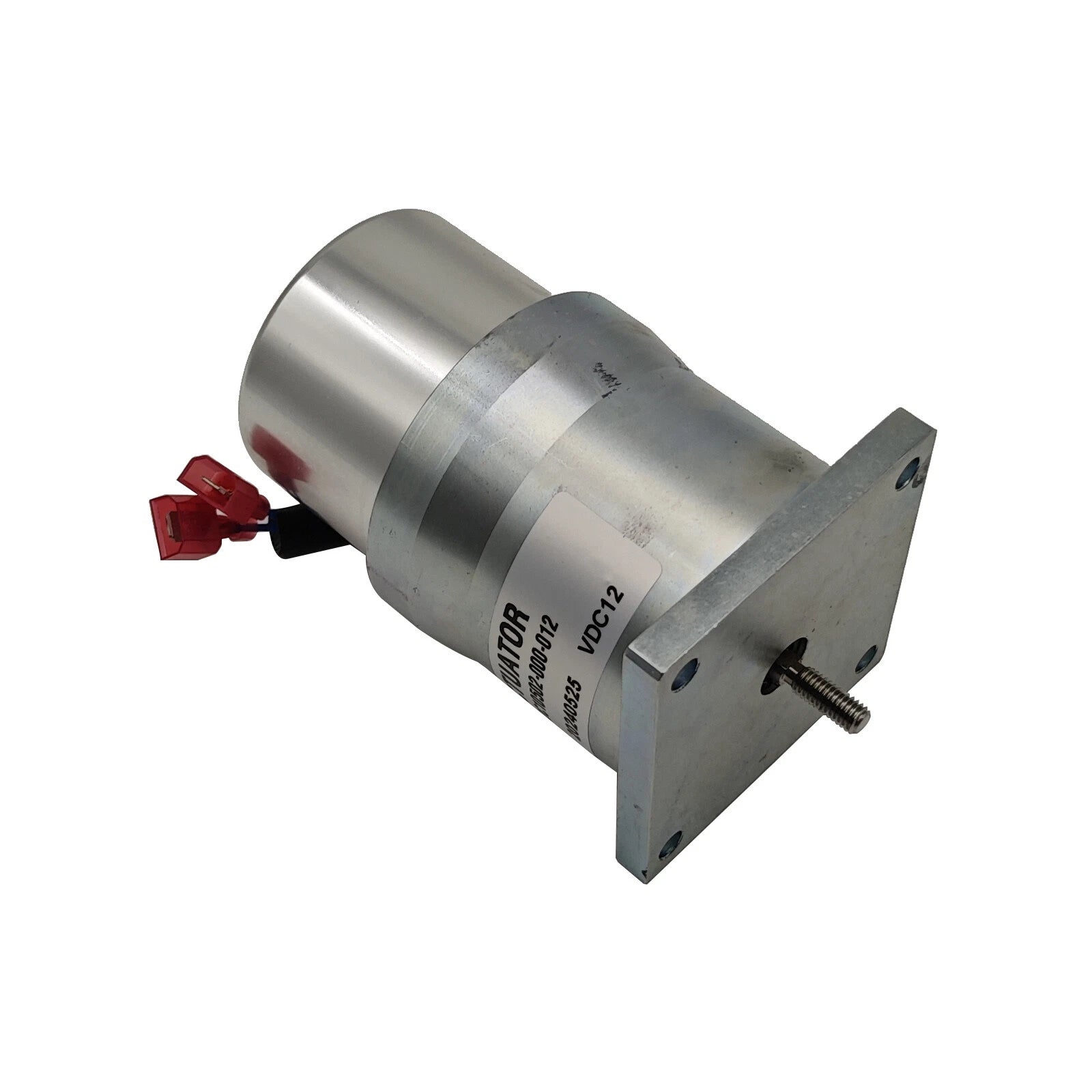

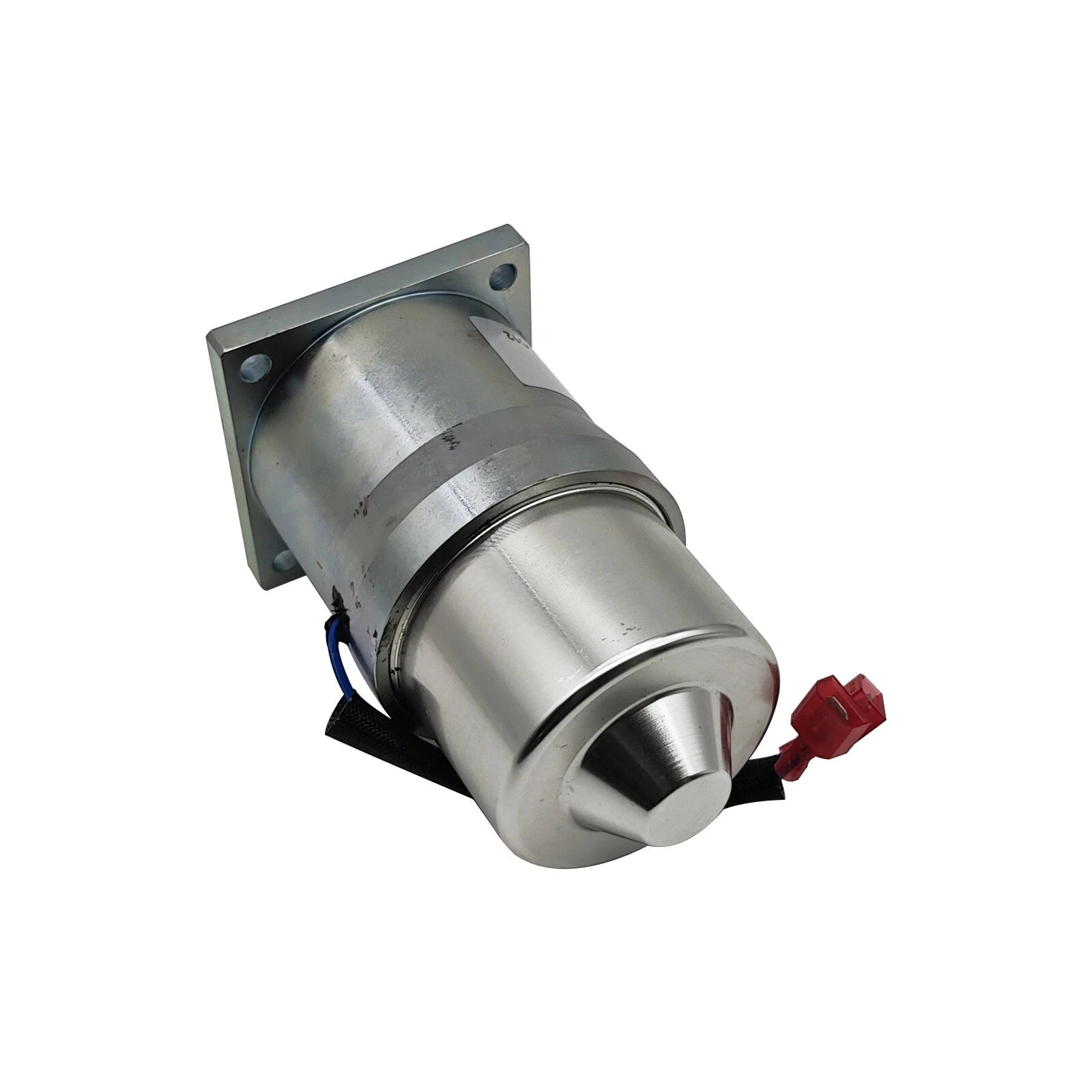

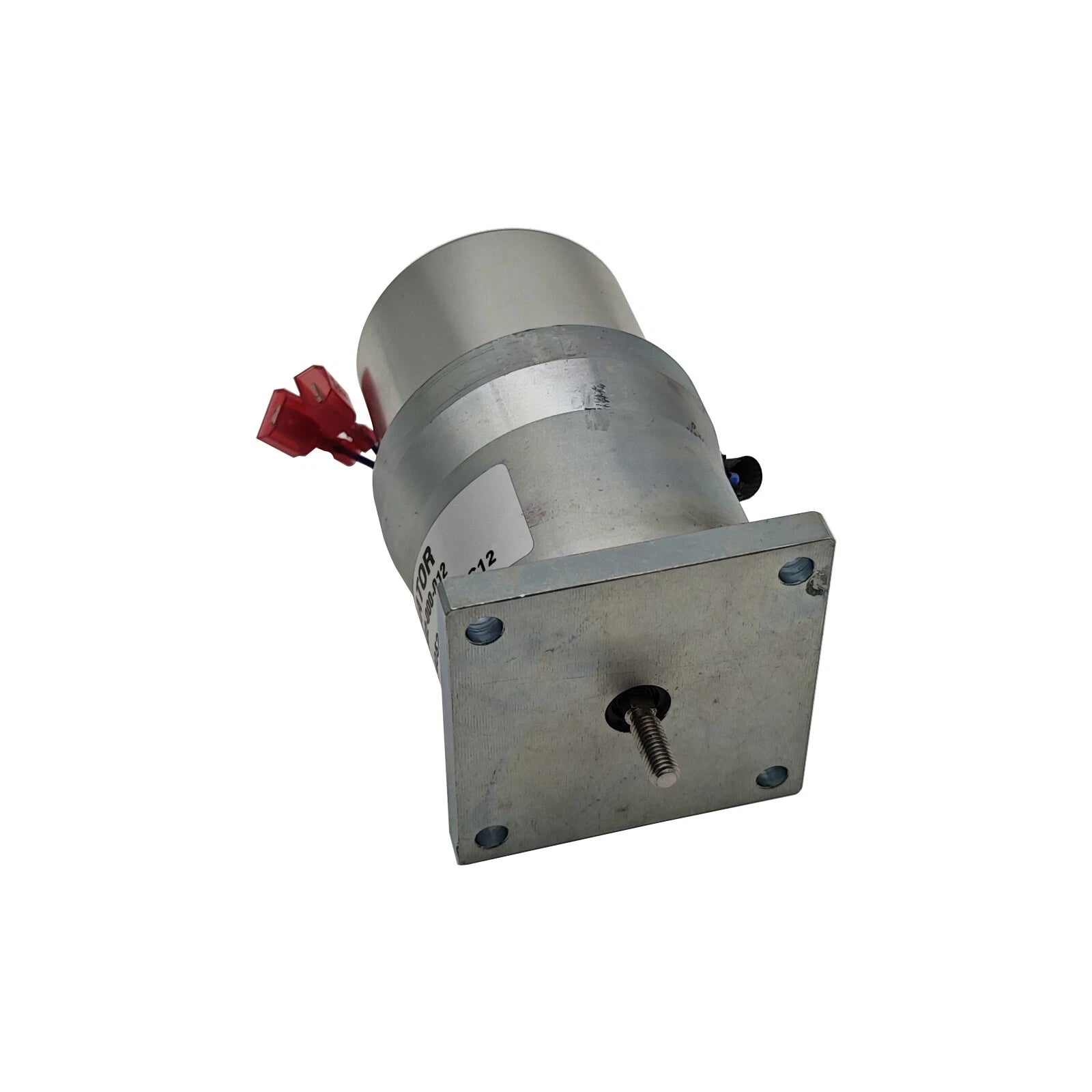

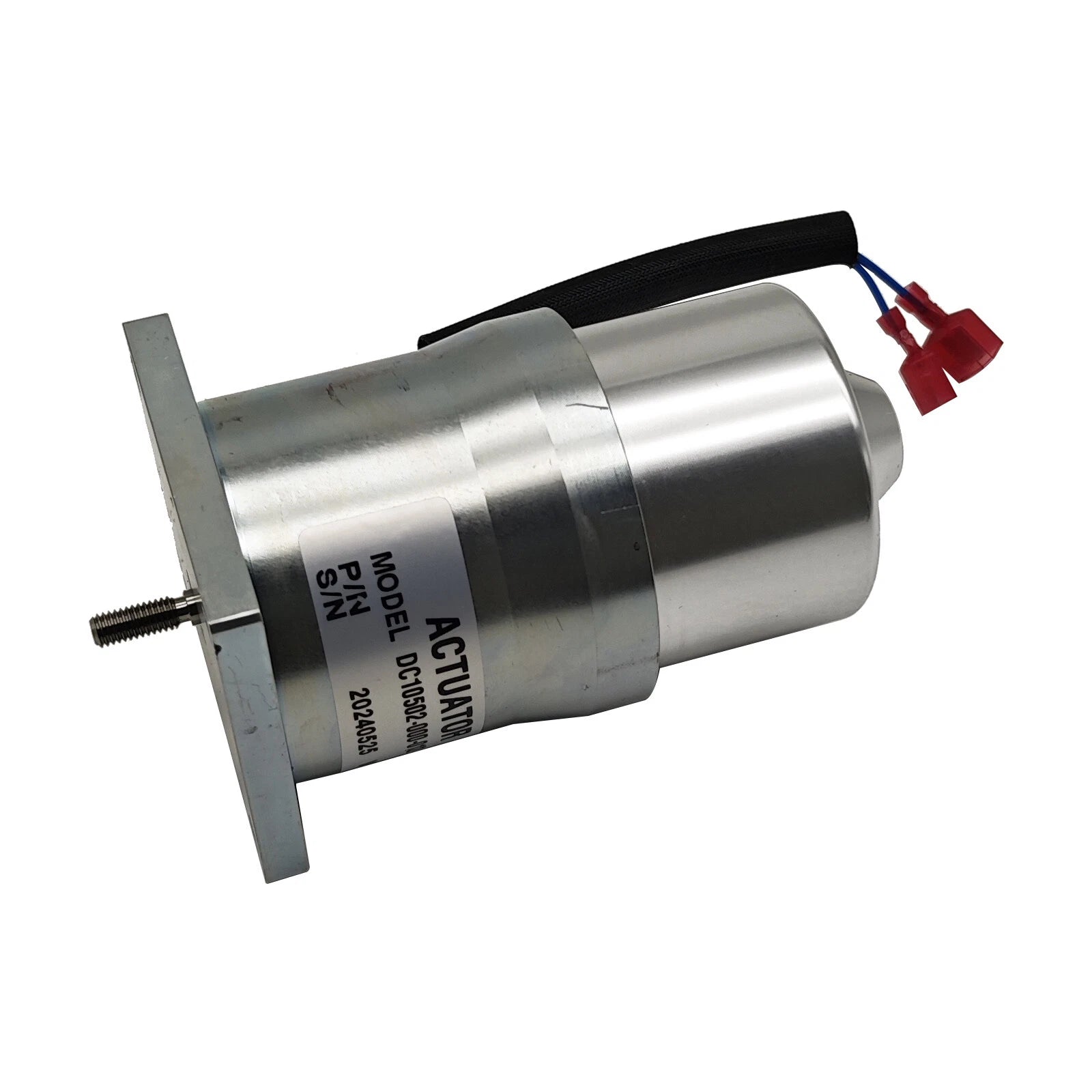

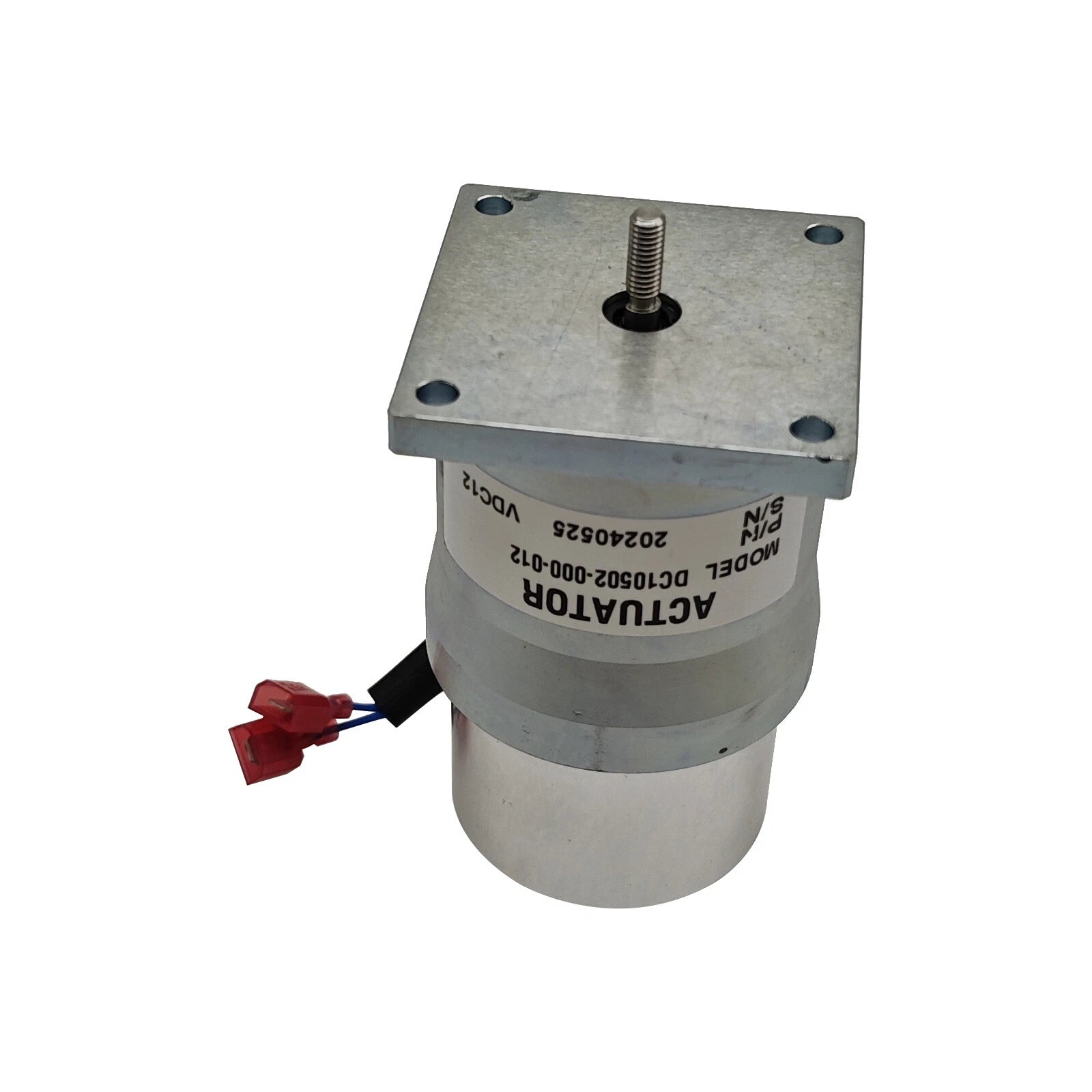

Woodward DC10502-000-012 DYNA 2500 12V Linear Actuator
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DC10502-000-012
Description
The Woodward DC10502-000-012 is a 12 VDC linear actuator from the DYNA 2500 series designed for precise engine speed and governor control. It converts electrical control signals into linear mechanical movement for compatible industrial engine control systems. The actuator supports a 250–9500 Hz speed range and is built for demanding operating environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Woodward |
| Category | Engine Control Components |
| Part Number | DC10502-000-012 |
| Subcategory | Linear Actuators |
| Product Type | Linear Actuator |
| Series | DYNA 2500 |
| Actuation Type | Push Linear |
| Operating Voltage | 12 VDC |
| Speed Frequency Range | 250–9500 Hz |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 180°F (82°C) |
| Bearing Design | Linear Ball Bushings |
| Circuit Board Protection | Conformal Coating |
| Shaft Protection | Standard Shaft Seal |
| Application | Engine Governor and Speed Control Systems |
| Alternate Part Number | DC10502000012 |
| Compatible System | Woodward Universal Actuator Applications |
| Weight | 3.53 lbs (1.60 kg) |
Information About DC10502-000-012
The DC10502-000-012 is a Woodward DYNA 2500 series linear actuator designed for electronic engine governing and speed-control applications. Its 12 VDC configuration provides controlled linear output for regulating compatible engine fuel or governor mechanisms. The assembly incorporates linear ball bushings, a shaft seal, and conformal circuit-board protection to support operation where vibration, moisture, and temperature variation are present. It is suitable for Woodward control systems and industrial engine installations requiring a push-type linear actuator.
Key Features:
- Actuator Type: Push-type linear actuator designed to translate electronic control commands into mechanical movement.
- Operating Voltage: Configured for a 12 VDC electrical supply.
- DYNA 2500 Series: Designed as part of Woodward's DYNA 2500 actuator and engine-control platform.
- Speed Range: Supports a specified operating frequency range of 250–9500 Hz.
- Linear Bearing Design: Incorporates linear ball bushings to support controlled actuator movement.
- Environmental Protection: Uses conformal circuit-board coating to improve resistance to moisture and vibration.
- Shaft Protection: Equipped with a shaft seal to protect the actuator mechanism during industrial operation.
- Operating Temperature: Designed for temperatures from -40°F to 180°F (-40°C to 82°C).
The DC10502-000-012 delivers the reliability and precision required for electronic governor actuation and industrial engine speed-control systems.
