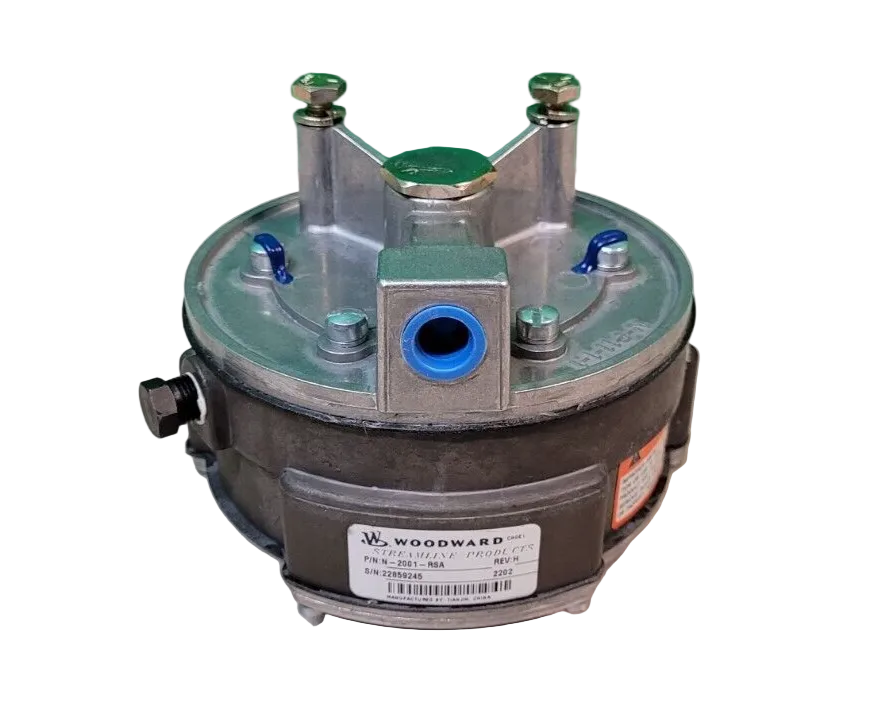

Woodward N-2001-RSA High-Pressure LPG Liquid Withdrawal Regulator
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: N-2001-RSA
Description
The Woodward N-2001-RSA is a high-pressure LPG regulator designed for liquid withdrawal fuel systems used with liquid-cooled industrial engines. It vaporizes incoming liquid propane using engine coolant heat and regulates fuel delivery according to engine demand. The integrated lockoff mechanism stops LPG flow automatically when engine vacuum is lost.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Woodward |
| Category | Fuel System Components |
| Part Number | N-2001-RSA |
| Subcategory | LPG Regulators |
| Product Type | High-Pressure LPG Regulator |
| Fuel Type | LPG Liquid/Vapor |
| Fuel Withdrawal Type | Liquid Withdrawal |
| Certified System Type | Closed-Loop |
| Vaporization Method | Engine Coolant Heated |
| Mounting Position | Vertical or Horizontal |
| Diaphragm Material | Silicone |
| Maximum Engine Rating | 150 HP |
| Maximum Inlet Pressure | 312 psi (21.51 bar) |
| Fuel Shutoff Type | Vacuum-Operated Automatic Lockoff |
| Interchange Part Number | A343007 |
| Additional Interchange Numbers | 934337, 000026605, 37962, 8001390078 |
| Application | Forklift and Industrial LPG Engine Fuel Systems |
| Weight | 2.20–2.38 lbs (1.00–1.08 kg) |
Information About N-2001-RSA
The N-2001-RSA is a Woodward LPG regulator designed for closed-loop propane fuel systems in forklifts and other industrial engine applications. Its coolant-heated construction converts liquid propane to vapor while maintaining controlled fuel delivery to the engine. A silicone diaphragm, pilot valve, and main valve work together to regulate gas flow in response to engine vacuum. The regulator supports vertical or horizontal mounting and is rated for applications up to 150 HP with a maximum inlet pressure of 312 psi.
Key Features:
- Fuel Compatibility: Designed for LPG liquid withdrawal systems with controlled liquid-to-vapor conversion.
- Coolant-Heated Vaporization: Uses heat from engine coolant to vaporize incoming liquid propane before fuel delivery.
- Automatic Lockoff: Spring-assisted pilot valve stops fuel flow when engine vacuum is no longer present.
- Closed-Loop Operation: Configured for use in certified closed-loop LPG fuel systems.
- Flexible Mounting: Supports both vertical and horizontal installation orientations.
- Silicone Diaphragm: Uses a silicone diaphragm for controlled pressure response within the regulator.
- High-Pressure Capacity: Handles maximum LPG inlet pressure up to 312 psi (21.51 bar).
- Engine Capacity: Rated for industrial engine applications up to 150 HP.
The N-2001-RSA delivers the reliability and precision required for controlled LPG vaporization and fuel regulation in forklift and industrial engine systems.
