WS-C2960S-48FPD-L | Cisco Catalyst 2960-S Series GE Switch
- Regular price
- $1,609.00
- Sale price
- $1,609.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C2960S-48FPD-L
Description

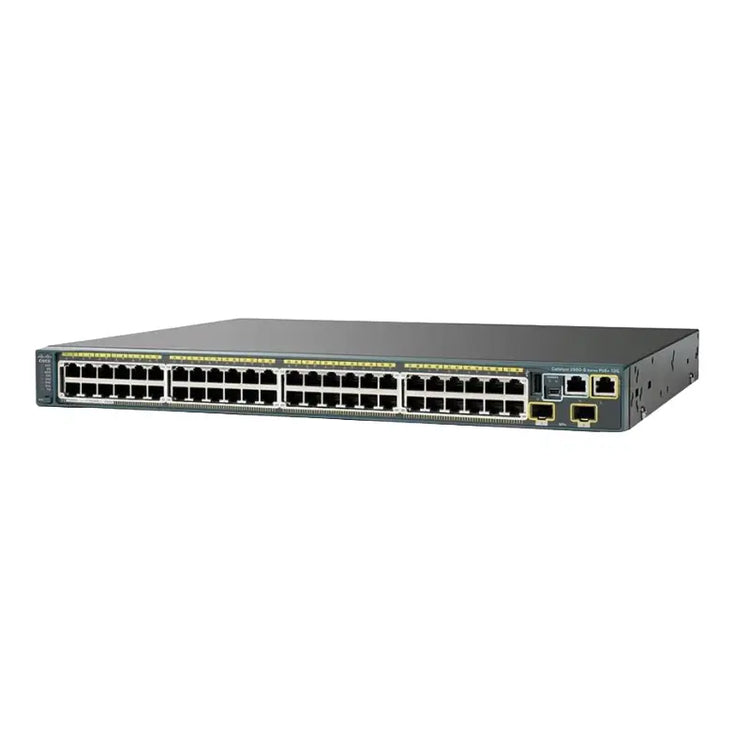

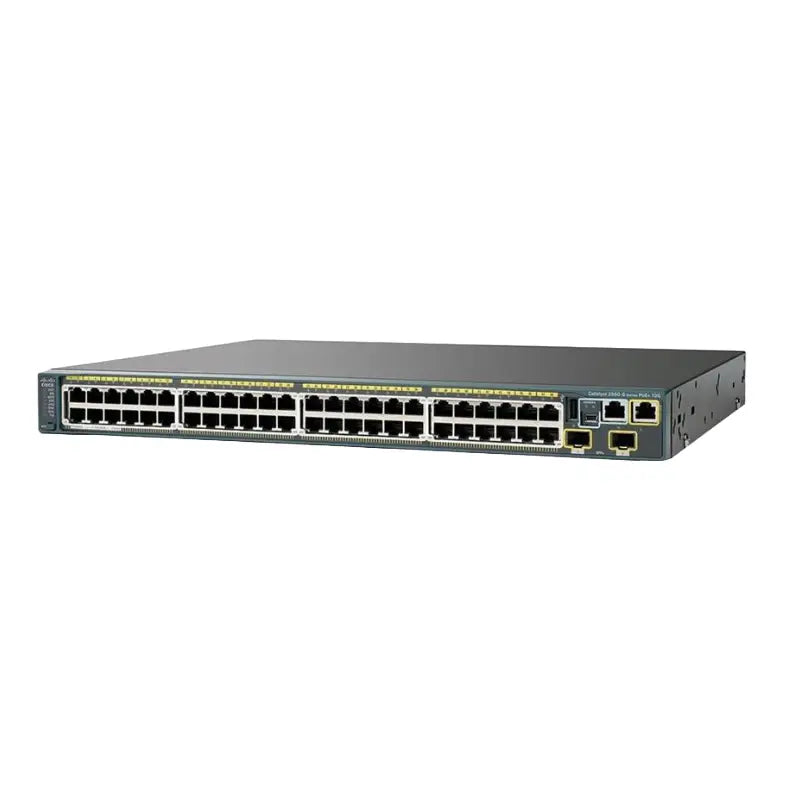

The Cisco WS-C2960S-48FPD-L is a 48-port Gigabit Ethernet switch from the Catalyst 2960-S Series, designed for enterprise-class access layer deployments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
PLCs/Machine Control
|
| Part Number | WS-C2960S-48FPD-L |
| Subcatecory |
PLC Module/Rack
|
|
Enclosure Type
|
Rack-mountable - 1U |
| Feature Set | IP65 |
| Standard | CCC,CE,CUL,KC,RCM,UL |
|
Type
|
LAN Base |
|
PoE Capacity
|
740W |
|
Uplink Interfaces
|
2 x 10 Gigabit SFP+ or 2 x 1 Gigabit Ethernet SFP+ uplink ports |
|
Downlink Ports
|
48 × Ethernet 10/100/1000 PoE+ ports |
|
Expansion Slot(s)
|
1 (total) / 1 (free) x Stacking Module |
|
Switching Capacity
|
176 Gbps |
|
Forwarding/Filtering Rate
|
77.4 Mpps |
|
DRAM
|
128 MB |
|
Flash Memory
|
64 MB |
|
Dimensions
|
44.5 × 38.6 × 4.5 cm |
|
Weight
|
10.65 kgs |
|
Min Operating Temperature
|
23 °F |
|
Max Operating Temperature
|
104 °F |
|
Humidity Range Operating
|
10 - 95% (non-condensing) |
|
Min Storage Temperature
|
-13 °F |
|
Max Storage Temperature
|
158 °F |
|
Humidity Range Storage
|
10 - 95% (non-condensing) |
Information About WS-C2960S-48FPD-L
The Cisco WS-C2960S-48FPD-L is a high-performance, enterprise-grade network switch designed for secure and scalable access layer deployments in demanding business environments. Engineered for reliability and flexibility, it combines full Power over Ethernet Plus (PoE+), Gigabit Ethernet connectivity, and advanced Layer 2 switching features in a robust, rack-mountable chassis to support modern network infrastructures.
Key Features:
-
Type: Enterprise-class 48-Port Gigabit Ethernet Switch with PoE+ and 10G Uplinks
-
Ethernet Ports: 48 × 10/100/1000 Mbps ports with PoE+ support
-
Uplink Interfaces: 2 × 10-Gigabit SFP+ fiber uplinks
-
PoE Budget: 740W total, up to 30W per port for high-power devices
-
Stacking Capability: Supports optional FlexStack stacking for scalability (up to 4 switches)
-
Switching Capacity: 176 Gbps for high-throughput network performance
-
Forwarding Rate: 77.4 Mpps for efficient packet forwarding
-
Memory: 128 MB DRAM and 64 MB Flash memory
-
Material: Sturdy metal construction for enhanced durability
-
Ingress Protection: Designed for standard indoor rack-mounted environments
-
Mounting Method: Standard 19-inch rack-mountable (1U height)
-
Power Supply: Internal redundant-capable power supply
-
Software Feature Set: LAN Base (advanced Layer 2 features and basic Layer 3 lite functions)
-
Dimensions: 44.5 cm (width) × 38.6 cm (depth) × 4.5 cm (height)
-
Weight: Approximately 10.65 kg
-
Standards Compliance: IEEE 802.3af/at (PoE+), IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w
-
Certifications: UL Listed, CE Marked, FCC Compliant
The WS-C2960S-48FPD-L is ideal for organizations that require secure, high-speed wired connectivity with power delivery for IP phones, wireless access points, and other PoE-powered devices. Its strong PoE+ capabilities, stacking flexibility, and robust Layer 2 features make it a dependable choice for growing enterprise networks, ensuring easy deployment, simplified management, and reliable day-to-day operation.
