WS-C2960X-48FPS-L | Cisco Catalyst Switch

Description

The Cisco GLC-LH-SMD is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver module designed for Gigabit Ethernet and Fibre Channel applications.

Technical Specifications

Information About WS-C2960X-48FPS-L

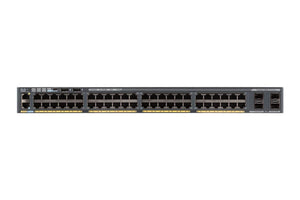

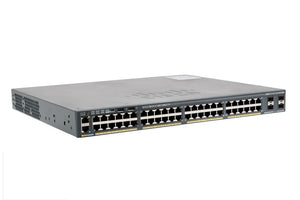

The Cisco Catalyst WS-C2960X-48FPS-L is a fixed-configuration, stackable Gigabit Ethernet switch designed for enterprise-class access in campus and branch networks. It offers advanced Layer 2 switching capabilities, Power over Ethernet Plus (PoE+) support, and energy-efficient features to meet the demands of modern network infrastructures.

Key Features:

• Ports: 48 x 10/100/1000 Gigabit Ethernet ports with PoE+ support

• Uplinks: 4 x 1G SFP uplink interfaces

• PoE+ Power Budget: Up to 740W, supporting 24 ports at 30W or 48 ports at 15.4W

• Switching Capacity: 216 Gbps

• Forwarding Rate: 107.1 Mpps

• Stacking: Supports FlexStack-Plus with up to 8 switches per stack and 80 Gbps stack bandwidth

• Memory: 512 MB RAM, 128 MB Flash

• Dimensions: 1.75 x 17.5 x 14.5 inches (4.45 x 44.5 x 36.8 cm)

• Weight: Approximately 13.2 lbs (6.0 kg)

• Operating System: Cisco IOS LAN Base

• Perpetual PoE: Maintains PoE power during switch reloads, ensuring uninterrupted power to connected devices.

• Energy Efficiency: Incorporates Cisco EnergyWise technology and supports IEEE 802.3az for reduced power consumption.

• Security: Offers features like 802.1X authentication, MAC-based VLAN assignment, and Cisco TrustSec for enhanced network security.

• Management: Provides various management options, including web UI, CLI, SNMP, and integration with Cisco DNA Center.

• Reliability: Includes features like enhanced limited lifetime warranty and high mean time between failures (MTBF) for dependable operation.
