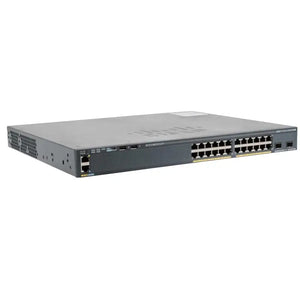

WS-C2960XR-24PS-I | Cisco SFP Switch
- Regular price
- $2,754.00
- Sale price
- $2,754.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C2960XR-24PS-I
Description
The Cisco WS-C2960XR-24PS-I is a 24-port Gigabit Ethernet switch with PoE+ support and 4 SFP uplink ports, part of the Catalyst 2960-XR Series.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Equipment
|
| Part Number | WS-C2960XR-24PS-I |
| Subcategory |
Managed PoE+ Gigabit Ethernet Switches
|
|
Ports
|
24 x Gigabit Ethernet, 4 x 1G SFP |
| Power over Ethernet | 370W |
| Routing | IP Lite |
|
Flash memory
|
128 MB for LAN Base and IP Lite SKUs, 64 MB for LAN Lite SKUs |
|
DRAM
|
512 MB for LAN Base and 256 MB for LAN Lite |
|
CPU
|
APM86392 600 MHz dual core |
|
Console Ports
|
USB (Type B), Ethernet (RJ-45) |
|
Network Management Interface
|
10/100 Mbps Ethernet (RJ-45) |
|
Forwarding Bandwidth
|
108 Gbps |
|
Switching Bandwidth
|
216 Gbps |
|
Maximum Active VLANs
|
1023 |
|
VLAN IDs Available
|
4096 |
|
Maximum Transmission Unit (MTU)-L3 Packet
|
9198 bytes |
|
Jumbo Frame - Ethernet Frame
|
9216 bytes |
|
Forwarding Rate
|
71.4 Mpps |
|
MTBF in Hours
|
321,290 |
|
Dimensions
|
1.75 x 16.0 x 17.5 Inches (H x D x W) |
|
Weight
|
6.8 kgs |
Information About WS-C2960XR-24PS-I
The Cisco WS-C2960XR-24PS-I is a Layer 2 and Lite Layer 3 managed switch from the Catalyst 2960-XR Series, designed for high-performance enterprise access networks. With 24 Gigabit Ethernet ports, full PoE+ support, and 4 SFP uplink ports, it provides flexible, scalable, and secure connectivity for a wide range of business applications including VoIP, surveillance, and wireless infrastructure.
Key Features:
-
24 x 10/100/1000 Ethernet Ports with PoE+ (IEEE 802.3at) support
-
4 x SFP Uplink Ports for fiber connectivity
-
PoE Budget: Up to 370W for powering IP phones, wireless access points, and cameras
-
Layer 2 with Lite Layer 3 Routing: Supports static routing, RIP, and limited dynamic routing
-
Stackable: Supports FlexStack-Plus for scalability and simplified management
-
Advanced Security:
-
802.1X authentication
-
Dynamic ARP inspection
-
Port security
-
Access control lists (ACLs)
-
-
QoS Features: Granular traffic prioritization and bandwidth management
-
Energy-Efficient Ethernet (EEE): Reduces power consumption during low data activity
-
Modular Power Supply: Field-replaceable and supports optional redundant power
-
Switching Capacity: 108 Gbps
-
Forwarding Rate: 81 Mpps
-
DRAM: 512 MB
-
Flash Memory: 128 MB
-
MAC Address Table: 16,000 entries
-
Management: CLI, Web GUI, SNMP v1/v2c/v3
-
Stacking Bandwidth: 80 Gbps with FlexStack-Plus
-
Form Factor: 1U Rack-Mountable
-
Cooling: Internal fan-based
-
Power Supply: Modular; AC power supply included with optional redundancy support
-
Enterprise access layer deployments
-
Networks requiring PoE+ for IP-based endpoints
-
Scalable, stackable infrastructure with reliable power delivery
-
Environments demanding secure and energy-efficient operation
