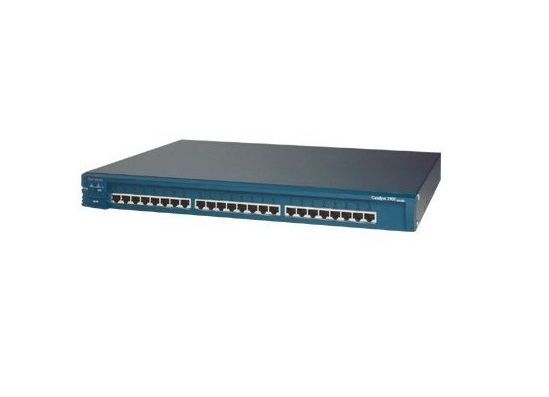

WS-C3524-PWR-XL-EN | Cisco Catalyst 24-Port 10/100 Managed Fast Ethernet Network Switch
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C3524-PWR-XL-EN
Description
The Cisco WS-C3524-PWR-XL-EN is a 24-port managed Fast Ethernet switch designed to deliver intelligent network services for enterprise wiring closets and branch office networks. With integrated Power over Ethernet (PoE) support and advanced Layer 2 switching capabilities, it offers a reliable solution for powering networked devices and managing traffic efficiently.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Hardware
|
| Part Number | WS-C3524-PWR-XL-EN |
| Subcatecory |
Managed Ethernet Switches
|
| Ports |
24 x 10/100 Fast Ethernet
|
| PoE Support | Up to 15.4W per port |
| Switching Capacity | 8.8 Gbps |
| Forwarding Rate | 6.5 Mpps |
| VLAN Support | 4096 VLAN IDs |
| MAC Address Table | 8192 Entries |
| Stackable | Yes, up to 8 switches |
| MTBF | 150,000 hours |
| Internal Memory | 12 MB |
| Networking Features | IEEE 802.1D, 802.1p, 802.1Q, 802.3x, 802.3u, 802.3z, 802.3ab |
| Management Protocols | SNMP MIB II, Bridging MIB (RFC 1493), SNMP extensions |
| Power Availability | 325 Watts |
| Operating Temperature | 0°C to 45°C |
| Humidity | 10% to 85% (operating) |
| Dimensions (WxDxH) | 445 x 300 x 44 mm (17.52 x 11.81 x 1.73 inches) |
| Weight | 5.45 kg (12 pounds) |
Information About WS-C3524-PWR-XL-EN
The WS-C3524-PWR-XL-EN is part of the Catalyst 3500 XL Series, providing 24 10/100 Mbps Ethernet ports with IEEE 802.3af PoE support, delivering up to 15.4W per port. It features a switching capacity of 8.8 Gbps and a forwarding rate of 6.5 Mpps, supporting low-latency performance across all ports. Designed with a MAC address table of 8192 entries, the switch ensures reliable address learning and forwarding for dense networks. With stacking capability of up to 8 units, the switch supports port-based and IEEE 802.1Q VLANs, Spanning-Tree Protocol, and CoS prioritization, providing robust traffic segmentation and QoS controls.
Key Features:
- 24-Port Fast Ethernet Connectivity with PoE: Delivers up to 15.4W per port, simplifying IP phone, camera, and access point deployments without needing separate power sources.
- High Switching Performance: Offers 8.8 Gbps switching capacity and 6.5 Mpps forwarding rate to ensure uninterrupted traffic flow in high-density environments.
- Robust Layer 2 Management: Includes VLAN, STP, QoS, and SNMP MIBs, enabling detailed traffic control and secure segmentation across user groups.
- Scalable Stackable Design: Stack up to 8 switches for a scalable architecture that supports growing enterprise demands.
- Enterprise-grade Reliability: Features a mean time between failures (MTBF) of 150,000 hours, assuring long-term operational consistency.
The WS-C3524-PWR-XL-EN delivers an efficient platform for enterprise-grade voice, video, and data convergence in small to medium-sized networks.
