WS-C3548-XL-EN | Cisco 3500 Series 3548 48 Port Switch
- Regular price
- $352.00
- Sale price
- $352.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WS-C3548-XL-EN
Description
The Cisco AIR-AP1041N-A-K9 is a single-band 802.11n access point from the Cisco 1040 Series, offering reliable wireless connectivity for small to medium-sized businesses.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | Computer |
| Part Number | WS-C3548-XL-EN |
| Subcatecory |
Networking Router
|
|
Description
|
Catalyst 3548xl Enterprise Edition - Switch - 48 Ports |
|
Device Type |
Switch - Stackable
|
| Form Factor | Rack-mountable |
| Dimensions (wxdxh) | 44.5 Cm X 39 Cm X 4.4 Cm |
| RAM | 8 Mb |
| Flash Memory | 4 Mb |
| Ports Qty | 48 X Ethernet 10base-t, Ethernet 1000base-lx, Ethernet 1000base-sx, Ethernet 100base-tx |
| Data Transfer Rate | 100 Mbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | Snmp, Rmon |
| Communication Mode | Half-duplex, Full-duplex |
| Features | Modular Design, Full Duplex Capability, Manageable, Stackable |
| Power | AC 100/240 V (50/60 Hz) |
| Weight | 4.7 kgs |
Information About WS-C3548-XL-EN

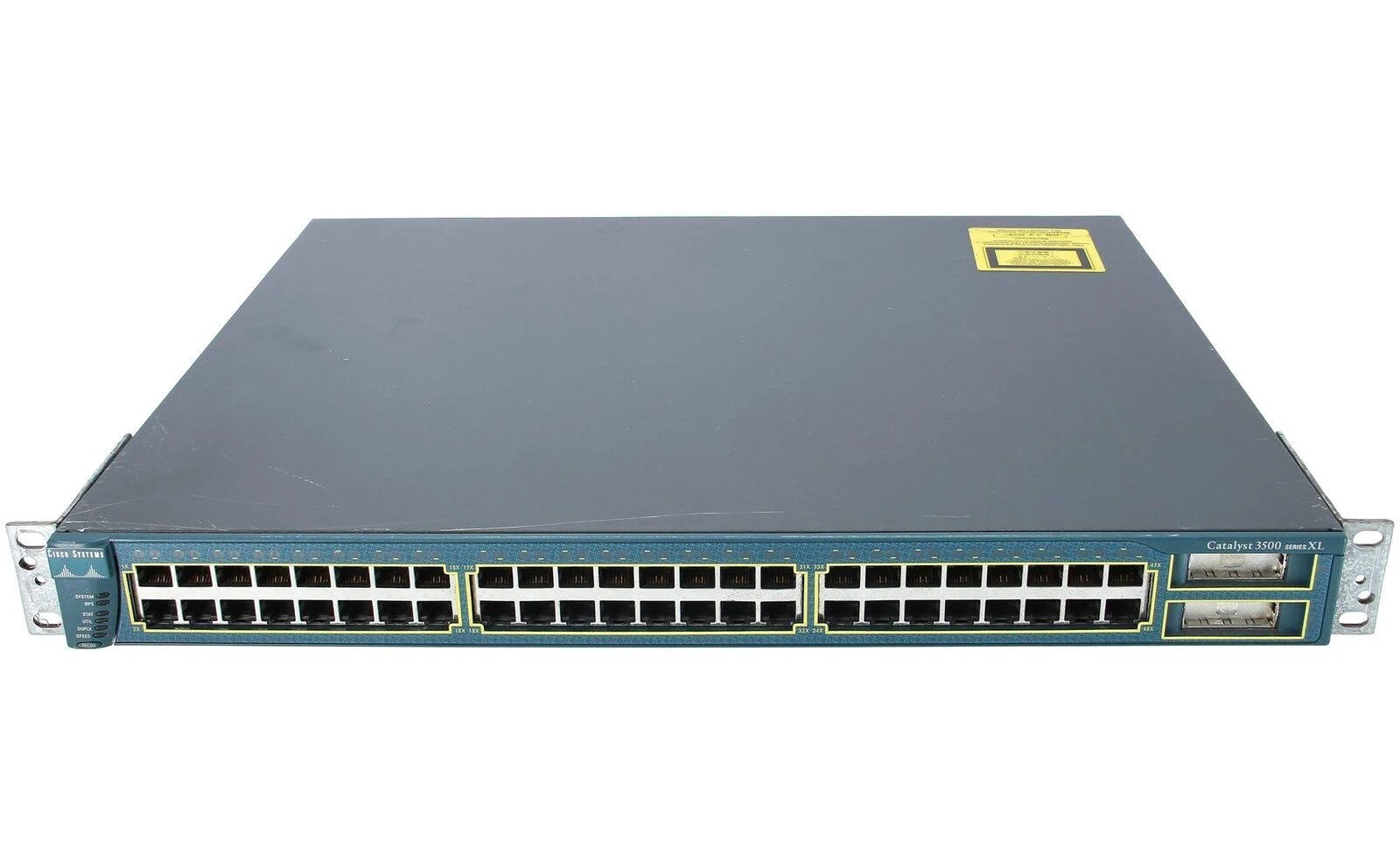

The Cisco WS-C3548-XL-EN is a fixed-configuration, enterprise-class switch from the Cisco Catalyst 3500 Series XL. Designed for high-performance Fast Ethernet connectivity, it offers 48 10/100 Mbps ports, providing robust Layer 2 switching for medium to large network environments. This model is ideal for aggregating workgroup access in wiring closets and supports scalable, managed Ethernet switching with essential enterprise features.
Key Features:
-
Type: Managed Ethernet Switch
-
Series: Cisco Catalyst 3500 Series XL
-
Category: Layer 2 Fast Ethernet Switch
-
Subcategory: Fixed-Configuration Stackable Switch
-
Port Configuration: 48 x 10/100 Mbps RJ-45 Ethernet ports
-
Uplink Options: 2 GBIC-based Gigabit Interface Converter ports (via optional uplink modules)
-
Switching Capacity: 10 Gbps switching fabric
-
Forwarding Rate: Up to 7.4 Mpps (million packets per second)
-
Management: Cisco IOS® software with CLI, SNMP, RMON, and web-based management interface
-
Security: Port-based MAC address filtering, VLAN support, and Cisco Network Security features
-
VLAN Support: Up to 1,024 VLANs with IEEE 802.1Q tagging
-
Redundancy Features: Spanning Tree Protocol (STP), UplinkFast, and PortFast for network reliability
-
Form Factor: Rack-mountable (1U height)
-
Power Supply: Internal power supply (AC)
-
Operating Temperature Range: 0 °C to +45 °C (32 °F to 113 °F)
-
Use Cases: Enterprise workgroup access, wiring closets, departmental LAN aggregation
-
Standards Compliance: IEEE 802.3, 802.3u, 802.1D, 802.1Q
The Cisco WS-C3548-XL-EN delivers reliable and cost-effective Layer 2 switching for organizations needing scalable Fast Ethernet connectivity. With robust management features and proven Cisco reliability, it is well-suited for core access or aggregation roles in enterprise networks.
