WS-C3560-24PS-S | Cisco Layer 3 POE Switch
- Regular price
- $372.00
- Sale price
- $372.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C3560-24PS-S
Description

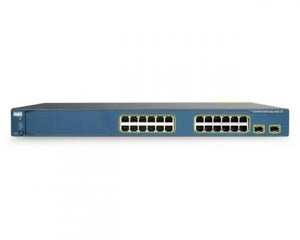

The Cisco WS-C3560-24PS-S is a Layer 3 managed Power over Ethernet (PoE) switch from the Catalyst 3560 Series, designed for enterprise access networks.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Computer Accessories
|
| Part Number | WS-C3560-24PS-S |
| Subcategory |
Network Devices
|
|
Port Count
|
24 x 10/100 |
| SFP Ports | 2 |
| IOS Image | IP Base Image |
|
Layer
|
Layer 3 |
|
Switching Capacity
|
32 Gbps |
|
Forwarding Rate
|
6.5 Mpps |
|
Power Supply
|
Internal |
|
Form Factor
|
1U Rack-Mountable |
|
Dimensions (W x D x H)
|
44.5 x 34.9 x 4.4 cm |
|
Maximum PoE Power
|
370W |
|
MAC Address Table
|
12,000 entries |
|
Flash Memory
|
16 MB |
|
DRAM Memory
|
128 MB |
|
LED Indicators
|
Status, Link Activity |
|
Temperature Range
|
0°C to 45°C (Operating) |
|
Humidity
|
0% to 95% (Non-Condensing) |
|
MTBF
|
265,435 hours |
|
Compliance
|
RoHS, WEEE |
|
Weight
|
3.9 kgs |
Information About WS-C3560-24PS-S
The Cisco WS-C3560-24PS-S is a Layer 3 Fast Ethernet PoE switch from the Cisco Catalyst 3560 Series, engineered for enterprise access layer deployments. With a compact form factor, integrated Power over Ethernet (PoE) support, and Layer 3 routing functionality, it is ideal for powering IP endpoints such as phones, access points, and security cameras while providing secure and intelligent traffic management for small to mid-sized networks.
Key Features:
-
Port Configuration:
24 x 10/100 Mbps Fast Ethernet ports with IEEE 802.3af PoE support
2 x Combo uplink ports (10/100/1000 or SFP fiber) -
PoE Capability:
Delivers up to 370W PoE budget, supporting 15.4W per port, ideal for powering IP phones and wireless access points. -
Layer 3 Routing:
Static Routing, RIP, and basic inter-VLAN routing supported with IP Base image
Routing protocols like OSPF and EIGRP limited to higher-tier licenses -
Security Features:
-
802.1X Port-Based Authentication
-
Access Control Lists (ACLs)
-
DHCP Snooping and Dynamic ARP Inspection
-
Port Security
-
-
Quality of Service (QoS):
Prioritizes voice and video traffic
Supports traffic classification, policing, and queue management -
Management and Monitoring:
CLI and web-based GUI interface
SNMP v1/v2c/v3, RMON
Compatible with Cisco Network Assistant -
Performance Specs:
-
Switching Capacity: 16 Gbps
-
Forwarding Rate: 6.5 Mpps
-
MAC Address Table: 12,000 entries
-
DRAM: 128 MB
-
Flash Memory: 32 MB
-
-
Form Factor and Power:
-
1U Rack-Mountable
-
Internal fixed AC power supply
-
Integrated fan-based cooling
-
The Cisco WS-C3560-24PS-S offers a cost-effective solution for organizations seeking reliable Layer 3 switching with integrated PoE. With 24 PoE ports, Layer 3 capabilities, and flexible uplink options, it supports converged voice, video, and data networks in small to mid-sized business environments. Its compact design, security features, and ease of management make it a dependable choice for access-layer deployments.
Description
The Cisco WS-C3560-24PS-S is a Layer 3 managed Power over Ethernet (PoE) switch from the Catalyst 3560 Series, designed for enterprise access networks.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Computer Accessories
|
| Part Number | WS-C3560-24PS-S |
| Subcategory |
Network Devices
|
|
Port Count
|
24 x 10/100 |
| SFP Ports | 2 |
| IOS Image | IP Base Image |
|
Layer
|
Layer 3 |
|
Switching Capacity
|
32 Gbps |
|
Forwarding Rate
|
6.5 Mpps |
|
Power Supply
|
Internal |
|
Form Factor
|
1U Rack-Mountable |
|
Dimensions (W x D x H)
|
44.5 x 34.9 x 4.4 cm |
|
Maximum PoE Power
|
370W |
|
MAC Address Table
|
12,000 entries |
|
Flash Memory
|
16 MB |
|
DRAM Memory
|
128 MB |
|
LED Indicators
|
Status, Link Activity |
|
Temperature Range
|
0°C to 45°C (Operating) |
|
Humidity
|
0% to 95% (Non-Condensing) |
|
MTBF
|
265,435 hours |
|
Compliance
|
RoHS, WEEE |
|
Weight
|
3.9 kgs |
Information About WS-C3560-24PS-S
The Cisco WS-C3560-24PS-S is a Layer 3 Fast Ethernet PoE switch from the Cisco Catalyst 3560 Series, engineered for enterprise access layer deployments. With a compact form factor, integrated Power over Ethernet (PoE) support, and Layer 3 routing functionality, it is ideal for powering IP endpoints such as phones, access points, and security cameras while providing secure and intelligent traffic management for small to mid-sized networks.
Key Features:
-
Port Configuration:
24 x 10/100 Mbps Fast Ethernet ports with IEEE 802.3af PoE support
2 x Combo uplink ports (10/100/1000 or SFP fiber) -
PoE Capability:
Delivers up to 370W PoE budget, supporting 15.4W per port, ideal for powering IP phones and wireless access points. -
Layer 3 Routing:
Static Routing, RIP, and basic inter-VLAN routing supported with IP Base image
Routing protocols like OSPF and EIGRP limited to higher-tier licenses -
Security Features:
-
802.1X Port-Based Authentication
-
Access Control Lists (ACLs)
-
DHCP Snooping and Dynamic ARP Inspection
-
Port Security
-
-
Quality of Service (QoS):
Prioritizes voice and video traffic
Supports traffic classification, policing, and queue management -
Management and Monitoring:
CLI and web-based GUI interface
SNMP v1/v2c/v3, RMON
Compatible with Cisco Network Assistant -
Performance Specs:
-
Switching Capacity: 16 Gbps
-
Forwarding Rate: 6.5 Mpps
-
MAC Address Table: 12,000 entries
-
DRAM: 128 MB
-
Flash Memory: 32 MB
-
-
Form Factor and Power:
-
1U Rack-Mountable
-
Internal fixed AC power supply
-
Integrated fan-based cooling
-
The Cisco WS-C3560-24PS-S offers a cost-effective solution for organizations seeking reliable Layer 3 switching with integrated PoE. With 24 PoE ports, Layer 3 capabilities, and flexible uplink options, it supports converged voice, video, and data networks in small to mid-sized business environments. Its compact design, security features, and ease of management make it a dependable choice for access-layer deployments.
