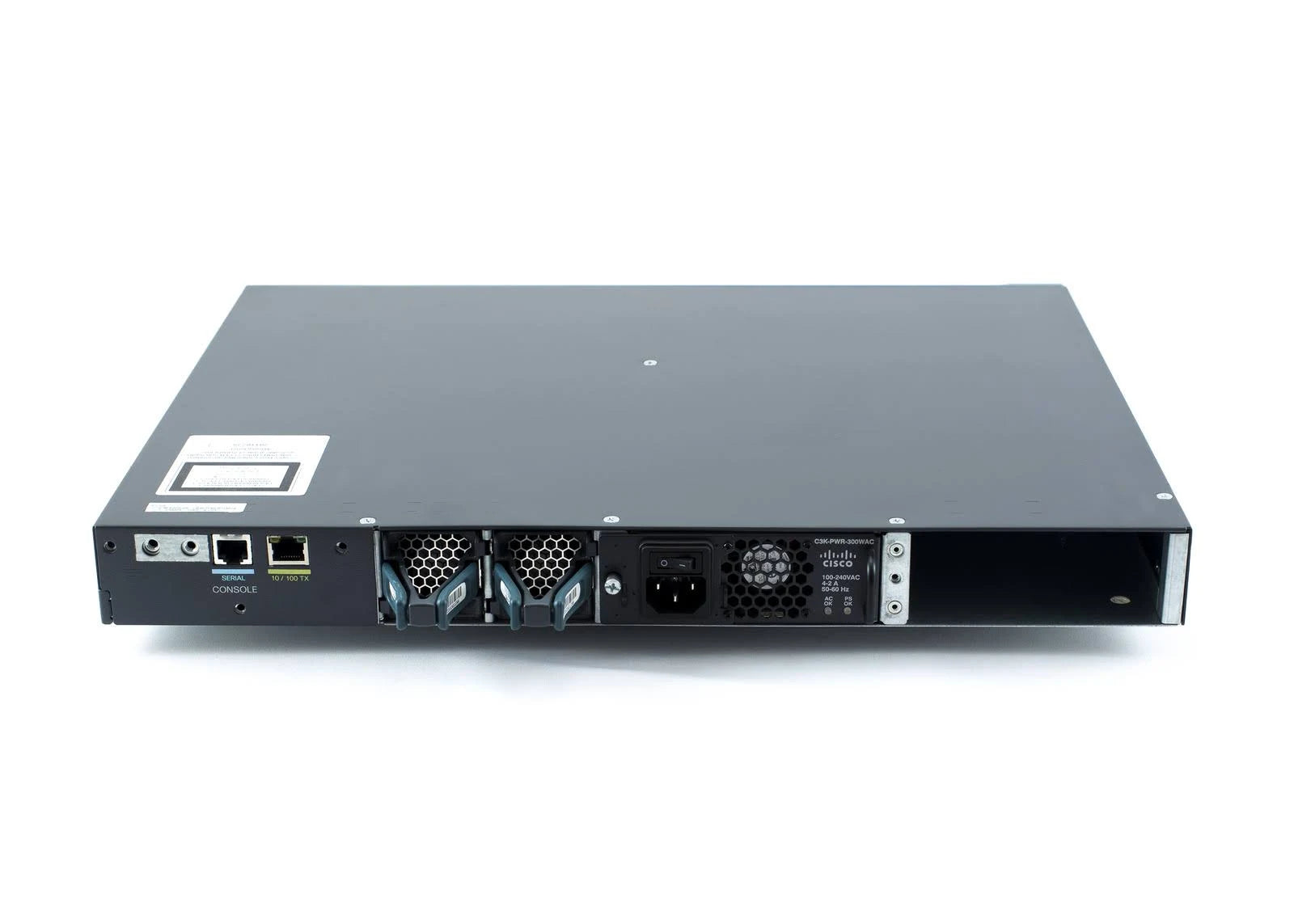

WS-C3560E-12SD-S | Cisco Catalyst 3560E Switch
- Regular price
- $2,392.00
- Sale price
- $2,392.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C3560E-12SD-S
Description
The Cisco WS-C3560E-12SD-S is a compact, enterprise-class Catalyst 3560E Series switch featuring 12 SFP-based Gigabit Ethernet ports and a 1 x 10GbE X2 uplink slot.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | PLCs/Machine Control |
| Part Number | WS-C3560E-12SD-S |
| Subcatecory |
PLC Module/Rack
|
|
Form Factor
|
1U |
|
Colour |
Blue
|
| Switch Type | Managed |
| Basic Switching RJ-45 Ethernet Ports Quantity | 16 |
| SFP/SFP+ Slots Quantity | 12 |
| SFP Module Slots Quantity | 12 |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Internal Memory | 128 MB |
| Flash Memory | 64 MB |
| Operating Temperature (T-T) | 0 - 40 °C |
| Operating Relative Humidity (H-H) | 10 - 95% |
| Connectivity Technology | Wired |
| Power Requirements | 120/230 V, 50/60 Hz |
| Dimensions (WxDxH) | 445 x 460 x 45 mm |
| Weight | 8.3 kgs |
Information About WS-C3560E-12SD-S
The Cisco WS-C3560E-12SD-S is a high-performance enterprise switch from the Catalyst 3560E Series, designed for secure, scalable, and energy-efficient Layer 3 switching. With 12 SFP-based Gigabit Ethernet ports and one 10 Gigabit Ethernet X2 uplink slot, it provides flexible fiber connectivity options for aggregation or access layer roles in enterprise and service provider networks. This switch is ideal for deployments that demand advanced routing features, high-speed uplinks, and a compact form factor optimized for fiber-rich environments.
Key Features:
-
Type: Fixed-configuration Layer 3 Ethernet Switch
-
Series: Cisco Catalyst 3560E Series
-
Category: Enterprise Network Switch
-
Subcategory: Gigabit Ethernet Switch with SFP and 10GbE Uplink
-
Functionality: Advanced Layer 3 switching with support for routing protocols, access control, QoS, and multicast
-
Port Count:
-
12 x Gigabit Ethernet SFP (fiber) ports
-
1 x 10 Gigabit Ethernet uplink (X2 module slot)
-
-
Interface Type: SFP slots for 1000BASE-X transceivers; X2 slot for 10GbE
-
Media Type: Fiber (SFP-based); 10GbE X2 for uplink
-
Throughput: Up to 68 Gbps switching fabric, 51.2 Mpps forwarding rate
-
Power Consumption: Approximately 100W (varies with configuration and optics)
-
Form Factor: 1 Rack Unit (1RU), rack-mountable
-
Software Compatibility: Cisco IOS® IP Base Software Image
-
Operating Temperature Range: 0 °C to +40 °C (32 °F to 104 °F)
-
Construction: Sturdy chassis with hot-swappable power supply and fan tray
-
Standards Compliance: IEEE 802.3, IEEE 802.1D/W/S, IPv6, RoHS, CE, FCC
The WS-C3560E-12SD-S enables high-density fiber access and aggregation with robust security, QoS, and routing capabilities. It is especially suited for business environments with demanding bandwidth and network resiliency requirements.
