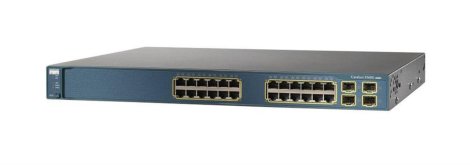

WS-C3560G-24PS-S | Cisco Gigabit Switch
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C3560G-24PS-S
Description
The Cisco WS-C3560G-24PS-S is a 24-port Gigabit Ethernet switch with Power over Ethernet (PoE) support, designed for enterprise-class access layer deployments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Computer
|
| Part Number | WS-C3560G-24PS-S |
| Subcatecory |
Networking Router
|
|
Ports
|
24 x 10/100/1000 Ethernet Ports |
|
Flash Memory
|
32 MB |
|
Switching Capacity
|
32 Gbps |
|
PoE Budget
|
370W |
|
Max VLANs
|
64 |
|
Uplink Ports
|
4 x SFP Ports |
|
DRAM
|
128 MB |
|
Forwarding Rate
|
38.7 Mpps |
|
VLAN IDs
|
1024 |
|
Spanning Trees
|
128 |
|
Power Supply
|
AC 100-240V |
|
Dimensions
|
44.5 cm x 44.5 cm x 4.5 cm |
|
Weight
|
13.25 lbs |
Information About WS-C3560G-24PS-S
The Cisco WS-C3560G-24PS-S is a 24-port Gigabit Ethernet switch from the Catalyst 3560 Series, designed for enterprise-class access layer deployments. It combines high-performance switching, integrated Power over Ethernet (PoE), and advanced Layer 2 and basic Layer 3 features, ideal for converged data, voice, and video networks in business environments.
Key Features:
-
Type: 24-port Gigabit Ethernet Layer 2 switch with PoE and 4 SFP uplink ports
-
Supported Devices: Ideal for IP phones, wireless access points, and PoE-enabled network devices
-
Switching Capacity: 32 Gbps
-
Forwarding Rate: 38.7 Mpps
-
PoE Support: IEEE 802.3af-compliant; provides up to 15.4W per port with a total PoE budget of 370W
-
Technology Enhancements: Basic Layer 3 routing with static routing and RIP, using IP Base software
-
Ethernet Ports: 24x 10/100/1000 Mbps ports, 4x SFP uplink ports
-
Power Options: Internal power supply; maximum power consumption of 520W
-
Memory: 128 MB DRAM and 32 MB Flash
-
Form Factor: 1U rack-mountable unit
-
Operating Environment: 0°C to 45°C operating temperature; 10% to 85% relative humidity (non-condensing)
The WS-C3560G-24PS-S is ideal for enterprises seeking a reliable, scalable solution for powering network devices and supporting high-speed data traffic across a secure and efficient access layer infrastructure.
