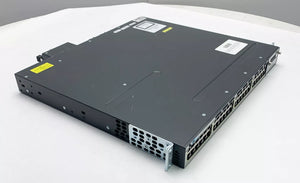

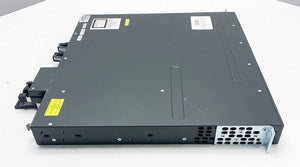

WS-C3560X-48PF-L | Cisco Catalyst 3560-X Switch
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C3560X-48PF-L
Description
The Cisco WS-C3560X-48PF-L is a 48-port Gigabit Ethernet Layer 2 managed switch from the Catalyst 3560-X Series, designed for enterprise access networks. It features Power over Ethernet Plus (PoE+) support with an 800W power budget, making it ideal for powering devices like IP phones, wireless access points, and IP cameras.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Equipment
|
| Part Number | WS-C3560X-48PF-L |
| Subcategory |
Managed Ethernet Switches
|
| Series | Catalyst 3560-X |
| Ports | 48 x 10/100/1000 Ethernet PoE+ Ports |
| Power over Ethernet (PoE) | 800W PoE Power Available |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 65.5 Mpps |
| Layer | Layer 2 |
| MAC Address Table Size | 16,000 entries |
| Flash Memory | 64 MB |
| DRAM | 256 MB |
| VLANs Supported | 1005 |
| Virtual Interfaces | SVI (Switched Virtual Interfaces) |
| Network Management | Managed |
| Operating System | LAN Base |
| Rack Mountable | Yes |
| Power Consumption | Maximum 1100W |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Humidity | 10% to 90%, non-condensing |
| Weight | 8 kgs |
Information About WS-C3560X-48PF-L
The Cisco WS-C3560X-48PF-L is a 48-port Gigabit Ethernet Layer 2 managed switch from the Catalyst 3560-X Series, designed for enterprise access networks. It supports PoE+ with an 800W power budget, enabling seamless deployment of powered devices like IP phones, wireless access points, and surveillance cameras. Built for performance, it includes modular uplink support and advanced power management features.
Key Features:
- Ports: 48 × 10/100/1000 Gigabit Ethernet PoE+ ports
- PoE Budget: 800 W (PoE+)
- Uplink Module Slot: Supports optional 1G or 10G uplink modules
- Feature Set: LAN Base (Layer 2 switching)
- Redundant Power: Dual hot-swappable power supply bays
- Stacking Support: Not stackable (standalone model)
- Energy Management: Cisco EnergyWise technology
- Security Features: 802.1X, DHCP snooping, dynamic ARP inspection
- Dimensions (H × W × D): 1.75 × 17.5 × 17.5 in. (4.45 × 44.5 × 44.5 cm)
- Weight: Approximately 17.6 lb (8.0 kg)
This switch is ideal for enterprise networks needing high-density, PoE-enabled Layer 2 access switching with flexibility and energy-efficient performance.
Description
The Cisco WS-C3560X-48PF-L is a 48-port Gigabit Ethernet Layer 2 managed switch from the Catalyst 3560-X Series, designed for enterprise access networks. It features Power over Ethernet Plus (PoE+) support with an 800W power budget, making it ideal for powering devices like IP phones, wireless access points, and IP cameras.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Equipment
|
| Part Number | WS-C3560X-48PF-L |
| Subcategory |
Managed Ethernet Switches
|
| Series | Catalyst 3560-X |
| Ports | 48 x 10/100/1000 Ethernet PoE+ Ports |
| Power over Ethernet (PoE) | 800W PoE Power Available |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 65.5 Mpps |
| Layer | Layer 2 |
| MAC Address Table Size | 16,000 entries |
| Flash Memory | 64 MB |
| DRAM | 256 MB |
| VLANs Supported | 1005 |
| Virtual Interfaces | SVI (Switched Virtual Interfaces) |
| Network Management | Managed |
| Operating System | LAN Base |
| Rack Mountable | Yes |
| Power Consumption | Maximum 1100W |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Humidity | 10% to 90%, non-condensing |
| Weight | 8 kgs |
Information About WS-C3560X-48PF-L
The Cisco WS-C3560X-48PF-L is a 48-port Gigabit Ethernet Layer 2 managed switch from the Catalyst 3560-X Series, designed for enterprise access networks. It supports PoE+ with an 800W power budget, enabling seamless deployment of powered devices like IP phones, wireless access points, and surveillance cameras. Built for performance, it includes modular uplink support and advanced power management features.
Key Features:
- Ports: 48 × 10/100/1000 Gigabit Ethernet PoE+ ports
- PoE Budget: 800 W (PoE+)
- Uplink Module Slot: Supports optional 1G or 10G uplink modules
- Feature Set: LAN Base (Layer 2 switching)
- Redundant Power: Dual hot-swappable power supply bays
- Stacking Support: Not stackable (standalone model)
- Energy Management: Cisco EnergyWise technology
- Security Features: 802.1X, DHCP snooping, dynamic ARP inspection
- Dimensions (H × W × D): 1.75 × 17.5 × 17.5 in. (4.45 × 44.5 × 44.5 cm)
- Weight: Approximately 17.6 lb (8.0 kg)
This switch is ideal for enterprise networks needing high-density, PoE-enabled Layer 2 access switching with flexibility and energy-efficient performance.
