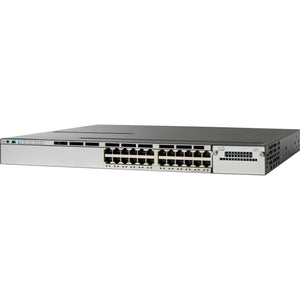

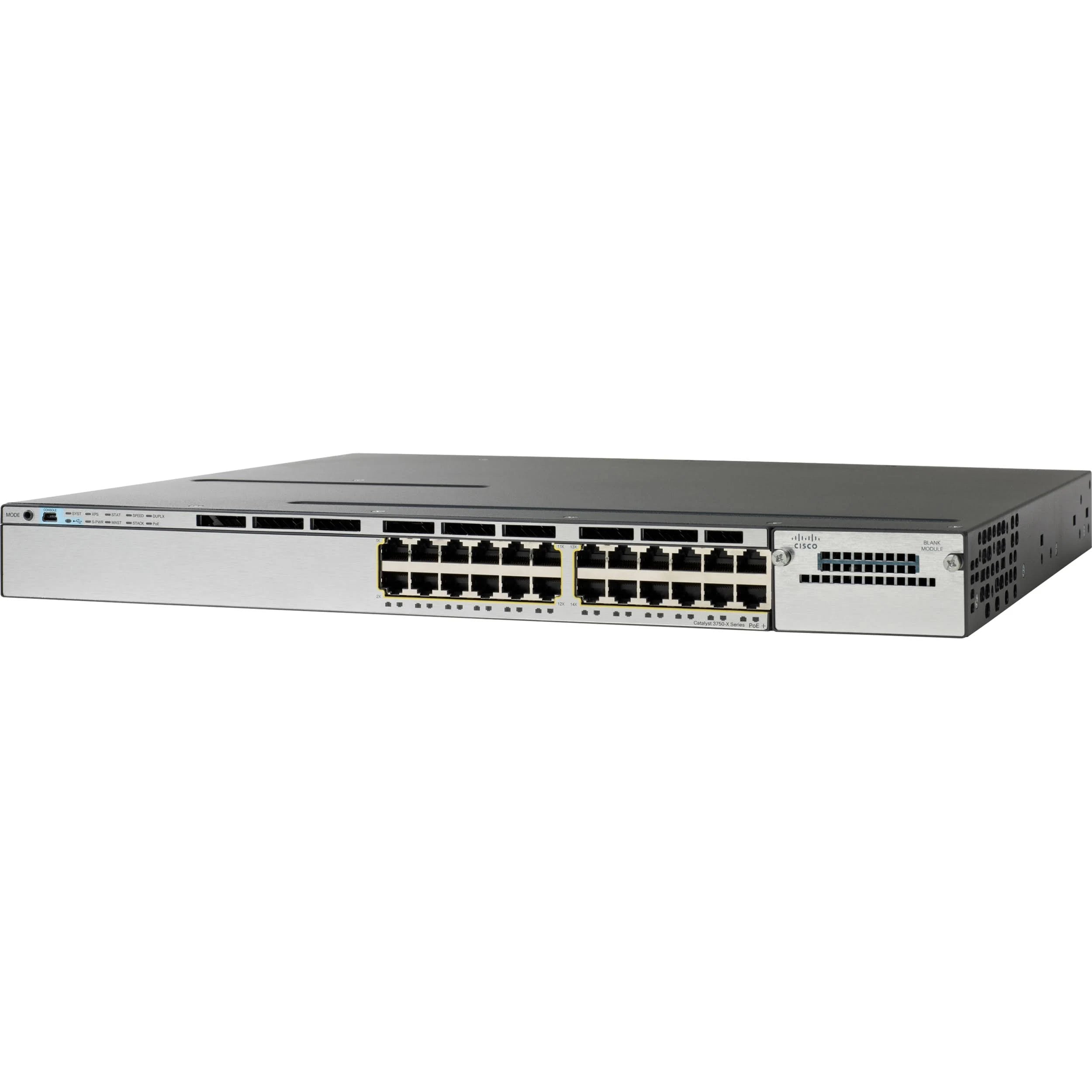

WS-C3750X-24P-L | Cisco Catalyst 3750X-24P Switch Layer 3
- Regular price
- $1,192.00
- Sale price
- $1,192.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C3750X-24P-L
Description
The Cisco WS-C3750X-24P-L is a 24-port Layer 3 managed switch from the Cisco Catalyst 3750-X Series, designed to deliver high-performance, secure, and scalable networking for enterprise environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | PLCs/Machine Control |
| Part Number | WS-C3750X-24P-L |
| Subcategory | PLC Module/Rack |
| Product Type |
Switch - 24 ports - Managed - stackable
|
| Form Factor |
Fixed, Rack Mountable 1U, Stackable/Clustering
|
|
Switch Port Density - Uplinks |
24 x 10/100/1000 Ethernet Ports |
| Power Over Ethernet (PoE) |
Yes |
|
Max Number of Stacks |
9 |
| DRAM Memory |
256 MB |
| Flash Memory | 128 MB Flash |
| LED Status Lights Indicators |
Port status, link activity, port transmission speed, port duplex mode, power, system |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE USB : 1 x 4 PIN USB Type A 1 x console - mini-USB Type B - management 1 x RS-232 - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management Network stack device : 2 x |
| Expansion Slots Total (Free) |
1 ( 1 ) x Expansion Slot |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| Rack Mounting Kit |
Optional |
| MTBF | 167,198 hour(s) |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7.2 kgs |
Information About WS-C3750X-24P-L
The Cisco WS-C3750X-24P-L is a 24-port Layer 3 managed switch from the Cisco Catalyst 3750-X Series, specifically designed for high-performance, scalable, and secure enterprise networks. It provides 24 Power over Ethernet (PoE) ports, allowing it to deliver power to IP phones, wireless access points, and other PoE-enabled devices. This switch is well-suited for applications that require high-speed, reliable network connectivity with support for advanced routing and network management capabilities.
Key Features:
-
24 Power over Ethernet (PoE) Ports:
The WS-C3750X-24P-L offers 24 10/100/1000 Mbps Ethernet ports with PoE support, which provides power to connected devices like IP phones, security cameras, and wireless access points, reducing the need for separate power sources. -
Layer 3 Routing:
Supports advanced Layer 3 routing features such as static routing, RIP, OSPF, and EIGRP. It also includes inter-VLAN routing, allowing traffic to be efficiently managed between different VLANs and network segments. -
Cisco StackWise Plus Technology:
Enables stacking of up to 9 switches, providing a unified management system, increased redundancy, and simplified scalability. This allows the WS-C3750X-24P-L to grow with your network while maintaining a single point of management. -
Quality of Service (QoS):
This switch offers robust QoS features that enable traffic prioritization to ensure that critical applications like voice and video have the necessary bandwidth for smooth operation. -
Energy Efficiency:
Supports Cisco EnergyWise to optimize energy consumption and reduce operational costs by intelligently managing the power usage of connected devices and network components. -
Security Features:
Includes a variety of security measures such as 802.1X authentication, Access Control Lists (ACLs), and DHCP snooping to protect network access and data integrity. -
IPv6 Support:
Fully supports IPv6, making it a future-proof solution for modern networks transitioning to the next-generation IP addressing standard. -
Compact 1U Form Factor:
The WS-C3750X-24P-L comes in a 1U rack-mounted form factor, ideal for deployment in data centers, server rooms, or network closets where space is at a premium.
The Cisco WS-C3750X-24P-L is an ideal solution for enterprises looking for a reliable, secure, and scalable Layer 3 switch with PoE capabilities to support advanced network services and high-density device deployments. It’s designed to meet the growing demands of modern networks while providing ease of management and long-term scalability.
Description
The Cisco WS-C3750X-24P-L is a 24-port Layer 3 managed switch from the Cisco Catalyst 3750-X Series, designed to deliver high-performance, secure, and scalable networking for enterprise environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | PLCs/Machine Control |
| Part Number | WS-C3750X-24P-L |
| Subcategory | PLC Module/Rack |
| Product Type |
Switch - 24 ports - Managed - stackable
|
| Form Factor |
Fixed, Rack Mountable 1U, Stackable/Clustering
|
|
Switch Port Density - Uplinks |
24 x 10/100/1000 Ethernet Ports |
| Power Over Ethernet (PoE) |
Yes |
|
Max Number of Stacks |
9 |
| DRAM Memory |
256 MB |
| Flash Memory | 128 MB Flash |
| LED Status Lights Indicators |
Port status, link activity, port transmission speed, port duplex mode, power, system |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE USB : 1 x 4 PIN USB Type A 1 x console - mini-USB Type B - management 1 x RS-232 - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management Network stack device : 2 x |
| Expansion Slots Total (Free) |
1 ( 1 ) x Expansion Slot |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| Rack Mounting Kit |
Optional |
| MTBF | 167,198 hour(s) |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7.2 kgs |
Information About WS-C3750X-24P-L
The Cisco WS-C3750X-24P-L is a 24-port Layer 3 managed switch from the Cisco Catalyst 3750-X Series, specifically designed for high-performance, scalable, and secure enterprise networks. It provides 24 Power over Ethernet (PoE) ports, allowing it to deliver power to IP phones, wireless access points, and other PoE-enabled devices. This switch is well-suited for applications that require high-speed, reliable network connectivity with support for advanced routing and network management capabilities.
Key Features:
-
24 Power over Ethernet (PoE) Ports:
The WS-C3750X-24P-L offers 24 10/100/1000 Mbps Ethernet ports with PoE support, which provides power to connected devices like IP phones, security cameras, and wireless access points, reducing the need for separate power sources. -
Layer 3 Routing:
Supports advanced Layer 3 routing features such as static routing, RIP, OSPF, and EIGRP. It also includes inter-VLAN routing, allowing traffic to be efficiently managed between different VLANs and network segments. -
Cisco StackWise Plus Technology:
Enables stacking of up to 9 switches, providing a unified management system, increased redundancy, and simplified scalability. This allows the WS-C3750X-24P-L to grow with your network while maintaining a single point of management. -
Quality of Service (QoS):
This switch offers robust QoS features that enable traffic prioritization to ensure that critical applications like voice and video have the necessary bandwidth for smooth operation. -
Energy Efficiency:
Supports Cisco EnergyWise to optimize energy consumption and reduce operational costs by intelligently managing the power usage of connected devices and network components. -
Security Features:
Includes a variety of security measures such as 802.1X authentication, Access Control Lists (ACLs), and DHCP snooping to protect network access and data integrity. -
IPv6 Support:
Fully supports IPv6, making it a future-proof solution for modern networks transitioning to the next-generation IP addressing standard. -
Compact 1U Form Factor:
The WS-C3750X-24P-L comes in a 1U rack-mounted form factor, ideal for deployment in data centers, server rooms, or network closets where space is at a premium.
The Cisco WS-C3750X-24P-L is an ideal solution for enterprises looking for a reliable, secure, and scalable Layer 3 switch with PoE capabilities to support advanced network services and high-density device deployments. It’s designed to meet the growing demands of modern networks while providing ease of management and long-term scalability.
