Product Description P/N: WS-C3750X-24T-E
Description

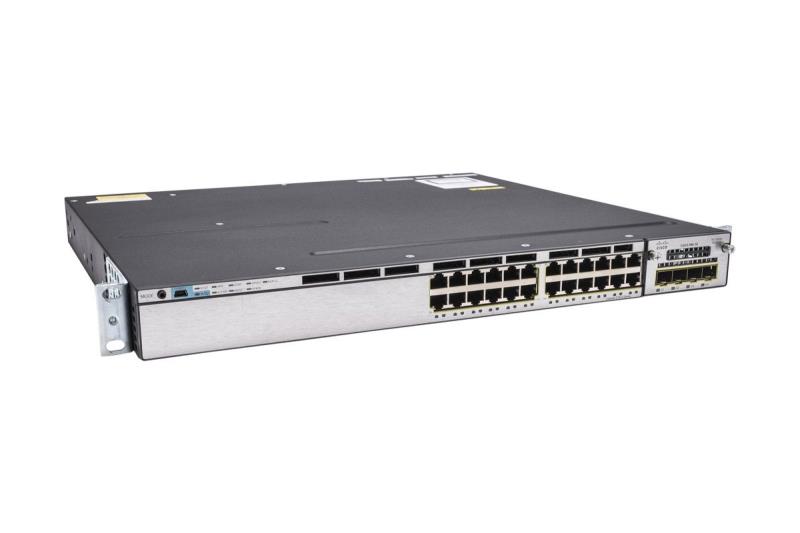

The Cisco WS-C3750X-24T-E is a 24-port Layer 3 managed switch from the Catalyst 3750X Series, offering advanced IP Services, high throughput, and enterprise-class scalability. With integrated StackWise Plus and redundant power support, it’s designed for resilient, high-performance network environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking
|
| Part Number | WS-C3750X-24T-E |
| Subcatecory |
Ethernet Switches
|
| Series |
Catalyst 3750X
|
| Ports | 24 x 10/100/1000 Ethernet |
| Network Module | Not Included (Modular Slot Available) |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 65.5 Mpps |
| Layer Support | Layer 3 (IP Services) |
| Stacking | 2 x StackWise Plus ports |
| Power Supply | 350WAC (Redundant Support) |
| Flash Memory | 128 MB |
| DRAM | 256 MB |
| Console Port | 1 x RS-232 |
| Dimensions (H x W x D) | 44.5 x 45 x 4.45 cm |
| Weight | 7.1 kg |
Information About WS-C3750X-24T-E
The WS-C3750X-24T-E is tailored for enterprise distribution and core layers, offering 24 fixed 10/100/1000 Mbps Ethernet ports for high-speed network access. Operating at Layer 3, it supports full IP Services including dynamic routing (OSPF, EIGRP, BGP), multicast, and IPv6. The switch delivers a forwarding bandwidth of 160 Gbps and a forwarding rate of 65.5 million packets per second (Mpps), ensuring low latency and rapid data flow even under high loads.
Key Features:
- 24 x Gigabit Ethernet Ports: Provides 10/100/1000 Mbps connectivity for high-speed access to end devices such as workstations, IP phones, printers, or wireless access points.
- Layer 3 IP Services: Supports advanced routing protocols including OSPF, EIGRP, BGP, static routing, IPv6, multicast, and Policy-Based Routing (PBR), enabling use in core or distribution layers of enterprise networks.
- 160 Gbps Switching Capacity: Offers high throughput to support non-blocking performance across all ports, essential for maintaining reliability and speed in data-intensive environments.
- 65.5 Mpps Forwarding Rate: Ensures low-latency packet forwarding even under heavy traffic loads, making it suitable for real-time applications such as VoIP and video.
- StackWise Plus Technology: Includes two dedicated stacking ports for connecting up to 9 switches in a single logical stack, providing enhanced scalability, redundancy, and unified management.
- 350WAC Power Supply with Redundancy Support: Built-in 350W AC power supply ensures reliable operation, with optional redundant power supply support for increased fault tolerance.
- Modular Uplink Expansion (Optional): While no network module is included by default, the switch supports modular uplink slots that can accommodate 1G or 10G SFP/SFP+ modules for flexible uplink configurations.
The WS-C3750X-24T-E is ideal for growing enterprise networks needing reliable, stackable, and fully-featured Layer 3 switching with IP services and hardware redundancy.
