WS-C3850-12XS-S | Cisco Module Slot Switch
- Regular price
- $2,894.00
- Sale price
- $2,894.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C3850-12XS-S
Description

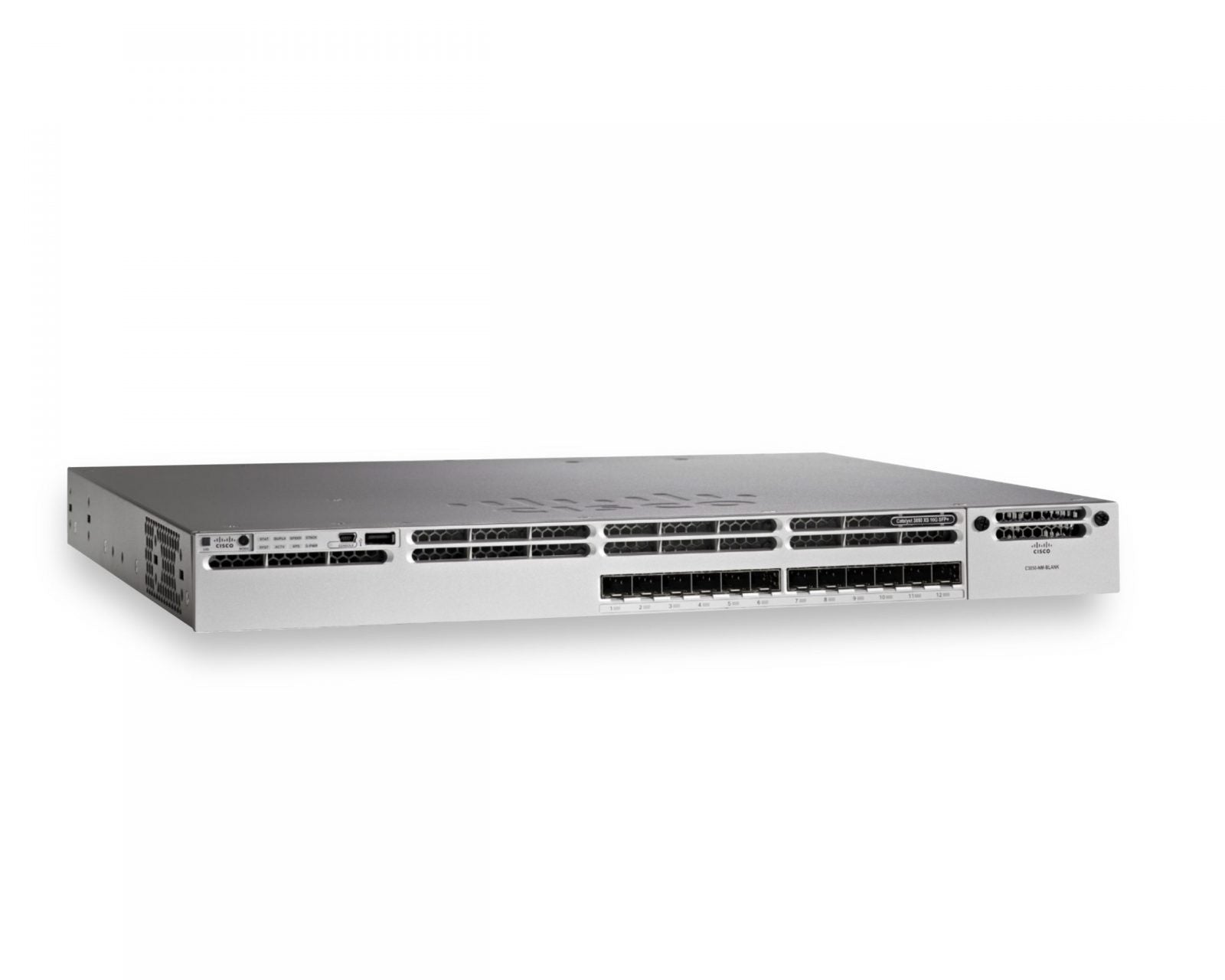

The WS-C3850-12XS-S is a 12-port 10G SFP+ switch from Cisco’s Catalyst 3850 series, offering high-performance, stackable Layer 3 switching with advanced features.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Equipment
|
| Part Number | WS-C3850-12XS-S |
| Subcategory |
Network Switches – Managed Switches
|
| Enclosure Type | Rack-mountable - 1U |
| Ports | 12 x SFP+ ports |
| Switching Capacity | 320Gbps |
| Maximum Stacking Number | 9 |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 227.28 Mpps |
| FNF Entries | 48,000 flows |
| Maximum VLANs IDs |
1,000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 4 G |
| Voltage Range (Auto) | 100V-240V |
| Power Consumption Of Standalone(in Watts) | 109.75 (Max) |
| MTBF in hours | 371,440 |
| Weight | 5.8 kgs |
Information About WS-C3850-12XS-S
The Cisco WS-C3850-12XS-S is a high-performance managed switch from the Catalyst 3850 Series, designed to deliver enterprise-class, high-speed switching with advanced Layer 3 capabilities. It features 12 SFP+ 10-Gigabit Ethernet ports, making it ideal for high-density aggregation in campus and data center environments.
Key Features:
-
Model: WS-C3850-12XS-S
-
Ports: 12 × 10-Gigabit Ethernet SFP+
-
Switching Capacity: 320 Gbps
-
Forwarding Rate: 190.4 Mpps
-
Software Image: IP Base (upgradeable to IP Services for advanced routing)
-
Stacking: Supports StackWise-480 technology, up to 9 switches
-
Uplink Slot: 1 × network module slot for optional uplink expansion
-
Power: Redundant power supply capable (1 installed, 1 optional)
This switch is ideal for enterprises seeking scalable, resilient, and high-throughput switching infrastructure. It supports converged access for both wired and wireless networks and offers modular uplink flexibility and high availability through advanced stacking and power redundancy features.
