WS-C3850-24P-E | Cisco PoE Networking Device

Description

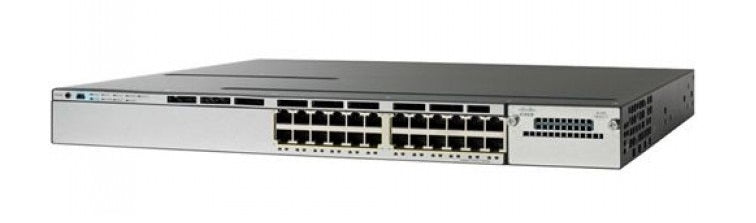

Cisco WS-C3850-24P-E is a 24-port Gigabit Ethernet switch with full Power over Ethernet Plus (PoE+) support, part of the Catalyst 3850 Series. It features Layer 3 capabilities, four optional uplink ports, and runs on the IP Services feature set.

Technical Specifications

Information About WS-C3850-24P-E

The Cisco WS-C3850-24P-E is a 24-port Gigabit Ethernet Layer 3 managed switch from the Catalyst 3850 Series, designed for enterprise campus and access layer deployments. It offers full Power over Ethernet Plus (PoE+) support, advanced security features, and high availability.

Key Features:

• Ports: 24 × 10/100/1000 Mbps Ethernet ports with PoE+ support

• PoE Power Budget: 435W with the included 715W AC power supply

• Uplink Options: Modular uplink slot supporting various network modules (e.g., 4 × 1G SFP, 2 × 10G SFP+)

• Stacking: Supports Cisco StackWise-480 technology with up to 480 Gbps stack bandwidth

• Power: Dual redundant, hot-swappable power supplies and three modular fans for redundancy

• Software: Runs on Cisco IOS XE with IP Services feature set, offering advanced Layer 3 routing capabilities

• Memory: 4 GB RAM and 2 GB flash memory

• Switching Capacity: Up to 92 Gbps

• Forwarding Rate: 68.4 Mpps

• Unified Access: Integrates wired and wireless services on a single platform, supporting up to 100 access points and 2000 wireless clients per switch or stack

• Advanced Security: Includes features like MACsec encryption, TrustSec, and flexible NetFlow for enhanced security and traffic monitoring

• High Availability: Supports Stateful Switchover (SSO) and redundant power supplies for minimal downtime

• Energy Efficiency: Complies with Energy Efficient Ethernet (EEE) standards
