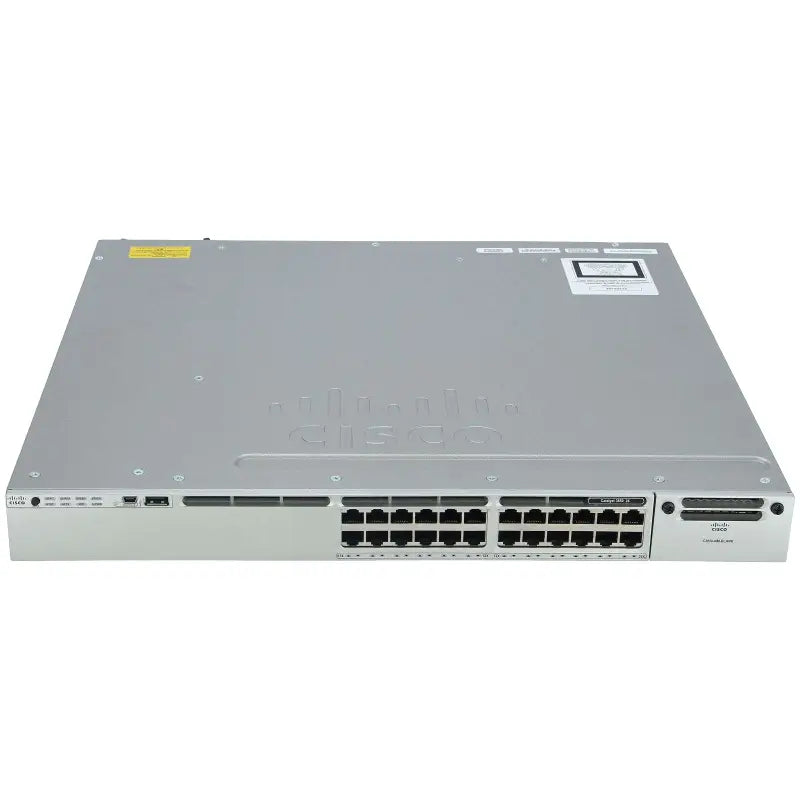

WS-C3850-24T-E | Cisco 24x 1GB RJ45 1x Free Expansion Module Slot Switch
- Regular price
- $1,994.00
- Sale price
- $1,994.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C3850-24T-E
Description
The Cisco WS-C3850-24T-E is a powerful, enterprise-grade Layer 3 switch from the Catalyst 3850 Series featuring 24 Gigabit RJ45 ports and one expansion module slot.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking
|
| Part Number | WS-C3850-24T-E |
| Subcatecory |
Layer 3 Modular Ethernet Switches
|
| Series |
Catalyst 3850
|
| Port Count | 24 x 10/100/1000 RJ45 |
| Expansion Module Slot | 1x Slot (Module not included) |
| Supported Modules | C3850-NM-4-1G, C3850-NM-2-10G |
| Feature Set | IP Services |
| Switching Capacity | 92 Gbps |
| Forwarding Rate | 68.4 Mpps |
| Stackability | Up to 9 units (StackWise-480) |
| Stack Bandwidth | 480 Gbps |
| Flash Memory | 2 GB |
| DRAM | 4 GB |
| MAC Address Table | 32,000 |
| Enclosure Type | Rack-mountable (1U) |
| Dimensions (H x W x D) | 44.5 x 44.5 x 4.45 cm |
| Weight | 7.2 kg |
Information About WS-C3850-24T-E
The WS-C3850-24T-E is designed to meet the demands of modern networks with 24 x 10/100/1000 Mbps ports and support for modular uplinks, offering either 4 x 1G SFP (C3850-NM-4-1G) or 2 x 10G SFP+ (C3850-NM-2-10G) expansion options. It supports IP Services such as OSPF, EIGRP, BGP, VRF, IPv6, and multicast routing, making it suitable for advanced enterprise routing scenarios. This switch is stackable with up to 9 switches using Cisco StackWise-480 technology, delivering 480 Gbps stack bandwidth. It offers robust performance with 92 Gbps switching capacity and a forwarding rate of 68.4 Mpps. With 4 GB of RAM and 2 GB of flash memory, it has the resources needed for rich feature sets and high-availability network services.
Key Features:
- 24 x 1G Ethernet Ports: Standard 10/100/1000 Mbps RJ45 ports for desktop, server, or access point connectivity.
- Modular Uplink Options: One expansion slot supports either 4 x 1G SFP (C3850-NM-4-1G) or 2 x 10G SFP+ (C3850-NM-2-10G) modules—sold separately for flexible deployment.
- IP Services Feature Set: Enables dynamic routing protocols (OSPF, EIGRP, BGP), multicast, and full IPv6 support for advanced enterprise environments.
- StackWise-480 Technology: Supports stacking of up to 9 switches with 480 Gbps bandwidth for unified management and seamless scaling.
- Switching Performance: 92 Gbps switching capacity and 68.4 Mpps forwarding rate ensure low-latency data handling across large enterprise networks.
- Robust Hardware: Includes 4 GB RAM, 2 GB Flash, 32,000 MAC address entries, and redundant fan support with three installed cooling modules.
- Power Supply and Redundancy: Comes with 1x 350WAC PSU installed, with an additional PSU slot for redundancy (supporting AC and DC options).
- Comprehensive Management Ports: Includes USB Type-A, Mini-USB Type-B, RJ-45 console, and Ethernet management ports for versatile device control.
The WS-C3850-24T-E provides a modular, stackable, and feature-rich platform to build scalable, secure, and resilient Layer 3 enterprise networks.
Description
The Cisco WS-C3850-24T-E is a powerful, enterprise-grade Layer 3 switch from the Catalyst 3850 Series featuring 24 Gigabit RJ45 ports and one expansion module slot.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking
|
| Part Number | WS-C3850-24T-E |
| Subcatecory |
Layer 3 Modular Ethernet Switches
|
| Series |
Catalyst 3850
|
| Port Count | 24 x 10/100/1000 RJ45 |
| Expansion Module Slot | 1x Slot (Module not included) |
| Supported Modules | C3850-NM-4-1G, C3850-NM-2-10G |
| Feature Set | IP Services |
| Switching Capacity | 92 Gbps |
| Forwarding Rate | 68.4 Mpps |
| Stackability | Up to 9 units (StackWise-480) |
| Stack Bandwidth | 480 Gbps |
| Flash Memory | 2 GB |
| DRAM | 4 GB |
| MAC Address Table | 32,000 |
| Enclosure Type | Rack-mountable (1U) |
| Dimensions (H x W x D) | 44.5 x 44.5 x 4.45 cm |
| Weight | 7.2 kg |
Information About WS-C3850-24T-E
The WS-C3850-24T-E is designed to meet the demands of modern networks with 24 x 10/100/1000 Mbps ports and support for modular uplinks, offering either 4 x 1G SFP (C3850-NM-4-1G) or 2 x 10G SFP+ (C3850-NM-2-10G) expansion options. It supports IP Services such as OSPF, EIGRP, BGP, VRF, IPv6, and multicast routing, making it suitable for advanced enterprise routing scenarios. This switch is stackable with up to 9 switches using Cisco StackWise-480 technology, delivering 480 Gbps stack bandwidth. It offers robust performance with 92 Gbps switching capacity and a forwarding rate of 68.4 Mpps. With 4 GB of RAM and 2 GB of flash memory, it has the resources needed for rich feature sets and high-availability network services.
Key Features:
- 24 x 1G Ethernet Ports: Standard 10/100/1000 Mbps RJ45 ports for desktop, server, or access point connectivity.
- Modular Uplink Options: One expansion slot supports either 4 x 1G SFP (C3850-NM-4-1G) or 2 x 10G SFP+ (C3850-NM-2-10G) modules—sold separately for flexible deployment.
- IP Services Feature Set: Enables dynamic routing protocols (OSPF, EIGRP, BGP), multicast, and full IPv6 support for advanced enterprise environments.
- StackWise-480 Technology: Supports stacking of up to 9 switches with 480 Gbps bandwidth for unified management and seamless scaling.
- Switching Performance: 92 Gbps switching capacity and 68.4 Mpps forwarding rate ensure low-latency data handling across large enterprise networks.
- Robust Hardware: Includes 4 GB RAM, 2 GB Flash, 32,000 MAC address entries, and redundant fan support with three installed cooling modules.
- Power Supply and Redundancy: Comes with 1x 350WAC PSU installed, with an additional PSU slot for redundancy (supporting AC and DC options).
- Comprehensive Management Ports: Includes USB Type-A, Mini-USB Type-B, RJ-45 console, and Ethernet management ports for versatile device control.
The WS-C3850-24T-E provides a modular, stackable, and feature-rich platform to build scalable, secure, and resilient Layer 3 enterprise networks.
