WS-C3850-24T-L | Cisco Catalyst 3850 Switch
- Regular price
- $1,785.00
- Sale price
- $1,785.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C3850-24T-L
Description

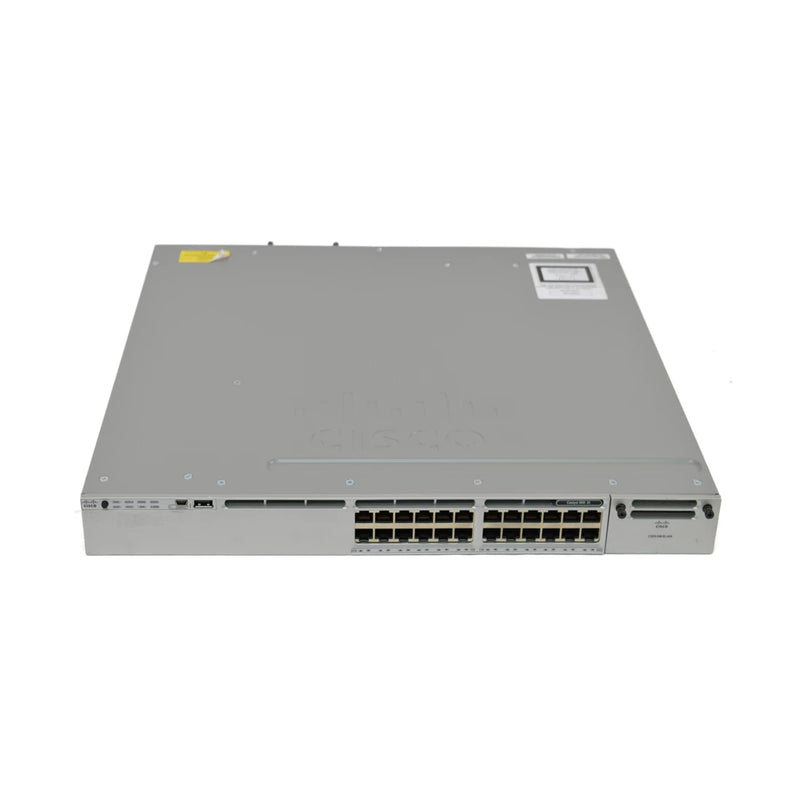

The Cisco WS-C3850-24T-L is a 24-port Gigabit Ethernet switch from the Catalyst 3850 Series, designed for enterprise-class access layer deployments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
PLCs/Machine Control
|
| Part Number | WS-C3850-24T-L |
| Subcatecory |
PLC Module/Rack
|
| Enclosure Type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 |
| Network Management Interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling Management console port: RJ-45-to-DB9 cable for PC connections |
|
Switching Capacity
|
92 Gbps |
| Maximum Stacking Number |
Up to 9 switches with same IOS feature set in same series
|
| Stack Bandwidth | 480 Gbps |
| Forwarding Performance | 68.4Mpps |
| FNF Entries | Disabled (IP base license required) |
| Maximum VLANs IDs | 255 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Console Ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Power Redundancy | Optional |
| Voltage Range (Auto) | 100V-240V |
| Power Consumption Of Standalone(in Watts) | 84.97 (max) |
| Rack Mounting Kit | Optional |
| MTBF in Hours | 303,230 |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 17.7 Inches (44.5 Cm) |
| Height | 1.75 Inches (4.45 cm) |
| Weight | 7.2 kgs |
Information About WS-C3850-24T-L
The Cisco WS-C3850-24T-L is a stackable enterprise-class access switch from the Catalyst 3850 Series, offering high-performance Layer 2 switching for wired infrastructure. Designed with Cisco’s StackWise-480 technology, it enables scalable and resilient network deployments with enhanced power and data stacking capabilities.
Key Features:
- Product Type: Managed Layer 2 Ethernet Switch
- Ports: 24 × 10/100/1000 Mbps Ethernet ports
- Stacking Technology: StackWise-480 (up to 9 switches per stack)
- Switching Capacity: 92 Gbps
- Forwarding Rate: 68.4 Mpps (64-byte packets)
- Network Module Slot: 1 slot for optional uplink modules (e.g., 4x1G SFP, 2x10G SFP+)
- Power Supply: 350W AC (modular, supports redundant power)
- Software Image: LAN Base (Layer 2)
- Management Ports: USB mini-Type B console, RJ-45 console, USB Type-A storage
- Cooling: Redundant fan modules, field-replaceable
- Mounting System: 1RU rack-mountable
- Energy Efficiency: Supports Energy Efficient Ethernet (EEE)
The WS-C3850-24T-L delivers a highly reliable and flexible solution for Layer 2 switching needs in enterprise environments. With advanced stacking capabilities, redundant components, and energy-efficient operation, it offers long-term investment protection and simplified network management for high-demand deployments.
