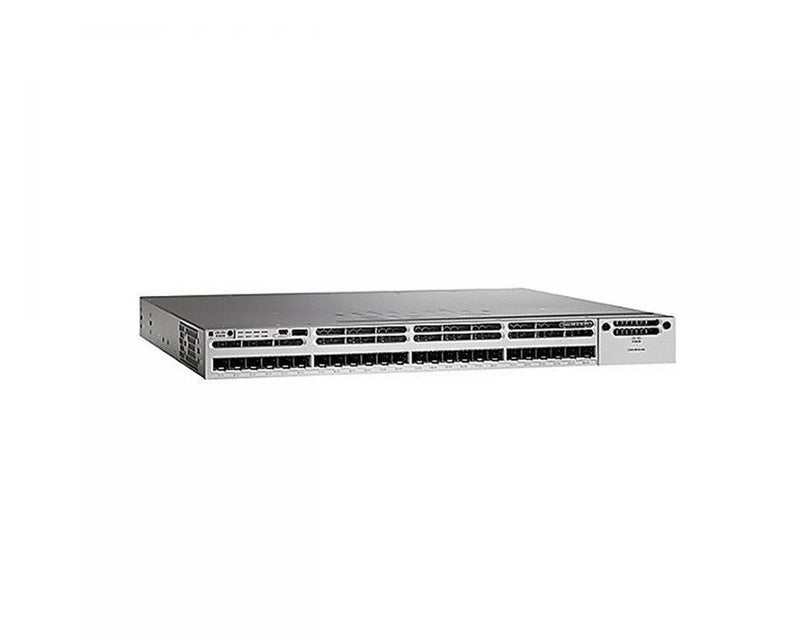

WS-C3850-24XS-S | Cisco Catalyst 3850 Switch SFP+
- Regular price
- $3,500.00
- Sale price
- $3,500.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-C3850-24XS-S
Description
The WS-C3850-24XS-S is a Cisco Catalyst 3850 Series 24-port SFP+ switch designed for high-density 10G aggregation with full stacking support, offering robust wired and wireless convergence, advanced management features, and 320 Gbps switching capacity.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking
|
| Part Number | WS-C3850-24XS-S |
| Subcategory |
10G Managed Switches
|
| Enclosure Type |
Rack-mountable – 1U
|
| Ports |
24 x SFP+ Ports
|
| Management Ports |
1 x RJ-45 Ethernet, 1 x RJ-45 Console
|
| Switching Capacity |
320 Gbps
|
| Forwarding Performance |
454.55 Mpps
|
| StackWise Support | Up to 9 switches, 480 Gbps Stack Bandwidth |
| MAC Address Table Size |
|
| VLANs Supported |
Up to 1,000 |
| FNF Entries |
48,000 flows |
| RAM |
4 GB |
| Flash Memory |
4 GB |
| Dimensions (W x D x H) |
17.5" x 17.7" x 1.75" (44.5 cm x 45.0 cm x 4.45 cm) |
| Weight |
13.5 lbs (6.1 kg) |
Information About CWS-C3850-24XS-S
The Cisco WS-C3850-24XS-S provides 24 SFP+ ports delivering high-speed 10G connectivity, ideal for dense aggregation or access layers. Featuring a powerful multicore CPU, 4 GB RAM, and 4 GB Flash, it supports a stacking bandwidth of 480 Gbps, with the ability to stack up to 9 switches for simplified scalability and management. Designed for advanced enterprise deployments, it delivers up to 320 Gbps switching capacity and 454.55 Mpps forwarding performance, with wireless controller functionality built-in to support up to 100 access points and 2000 wireless clients per switch or stack, ensuring seamless wired and wireless integration.
Key Features:
-
24 x SFP+ Ports: High-speed 10G fiber connectivity for aggregation and access.
-
Advanced StackWise-480 Technology: Up to 480 Gbps stacking bandwidth with 9 units per stack.
-
High Forwarding Rate: 454.55Mpps for rapid packet processing.
-
Integrated Wireless Controller: Supports 100 APs and 2000 clients with up to 20Gbps wireless bandwidth.
-
Multicore CPU Architecture: Boosts processing and concurrent service capabilities.
-
Large MAC Address Table: 32K entries for high-density environments.
-
Robust System Memory: 4 GB RAM and 4 GB Flash for reliable operations and feature scalability.
-
Compact 1U Rack-Mountable Design: 17.5" width, 17.7" depth, 1.75" height, with 13.5 lbs weight.
The WS-C3850-24XS-S delivers high-density 10G aggregation and integrated wireless capabilities to support demanding enterprise network environments.
