WS-X45-SUP7-E | Cisco Catalyst 4500 E-Series Supervisor Engine
- Regular price
- $1,052.00
- Sale price
- $1,052.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-X45-SUP7-E
Description

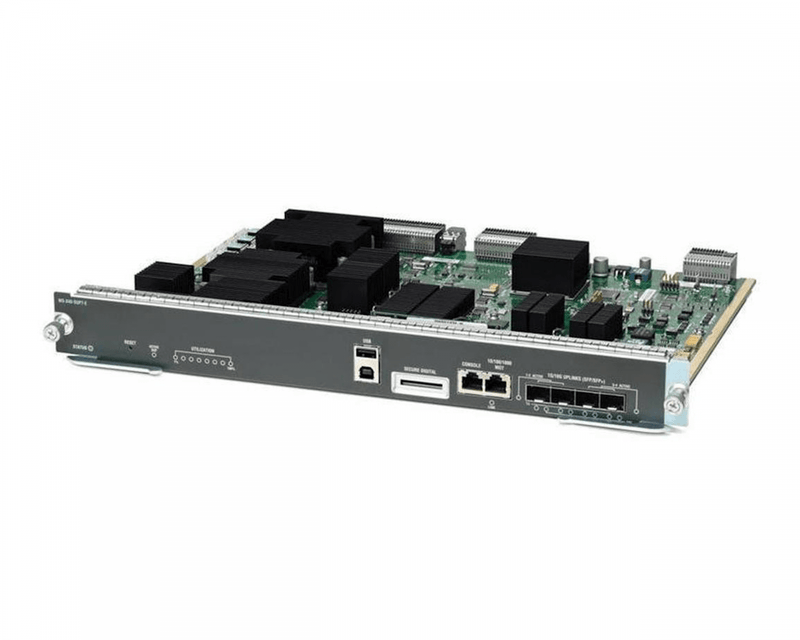

The Cisco WS-X45-SUP7-E is a high-performance Supervisor Engine for the Catalyst 4500 E-Series, delivering enhanced scalability, intelligent traffic management, and wire-speed switching across enterprise network cores.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Supervisor Engines
|
| Part Number | WS-X45-SUP7-E |
| Subcatecory |
Supervisor Modules
|
|
Per-slot Switching Capacity
|
48 Gbps |
|
IPv4 Throughput
|
250 Mpps |
|
IPv6 Throughput
|
125 Mpps |
|
Layer 2 Throughput
|
250 Mpps |
|
Multicast Routes
|
16,000 (IOS XE 3.1.0 SG), 32,000 (IOS XE 3.2.0 SG+) |
|
CPU
|
Dual-core, 1.5 GHz |
|
SDRAM
|
2 GB (upgradable to 4 GB) |
|
NVRAM
|
1 GB |
|
Weight
|
32.25 lb |
Information About WS-X45-SUP7-E
The WS-X45-SUP7-E provides a per-slot switching capacity of 48 Gbps and supports up to 250 million packets per second (Mpps) for IPv4, 125 Mpps for IPv6, and 250 Mpps for Layer 2 bridging. It is built with a dual-core 1.5 GHz processor and includes 2 GB of SDRAM, expandable to 4 GB, along with 1 GB of NVRAM for enhanced performance and reliability.
Key Features:
- Switching Capacity: Delivers 48 Gbps per slot for high-speed interconnectivity
- Throughput: Supports 250 Mpps (IPv4), 125 Mpps (IPv6), and 250 Mpps Layer 2 bridging
- Routing Scale: Handles 256,000 IPv4 and 128,000 IPv6 routing entries
- Multicast Support: Supports up to 16,000 multicast routes (IOS XE 3.1.0 SG) or 32,000 (IOS XE 3.2.0 SG and later)
- CPU: Integrated dual-core 1.5 GHz processor for enhanced control plane performance
- SDRAM: Equipped with 2 GB memory, expandable to 4 GB for large-scale configurations
- NVRAM: 1 GB nonvolatile RAM for persistent configuration storage
- QoS & Security Entries: Supports up to 128,000 hardware entries for intelligent traffic handling
- Access Control: Enables 12,000 NAC and DHCP snooping entries for secure endpoint identification
- MAC Address Table: Supports up to 55,000 MAC addresses for device mapping
- Active VLANs: Manages up to 4,094 VLANs for comprehensive network segmentation
The WS-X45-SUP7-E delivers intelligent, high-performance supervision for Catalyst 4500 E-Series switches, supporting large-scale enterprise network architectures with unmatched reliability and scale.
