WS-X4624-SFP-E | Cisco Catalyst 4500 E-Series Linecard

Description

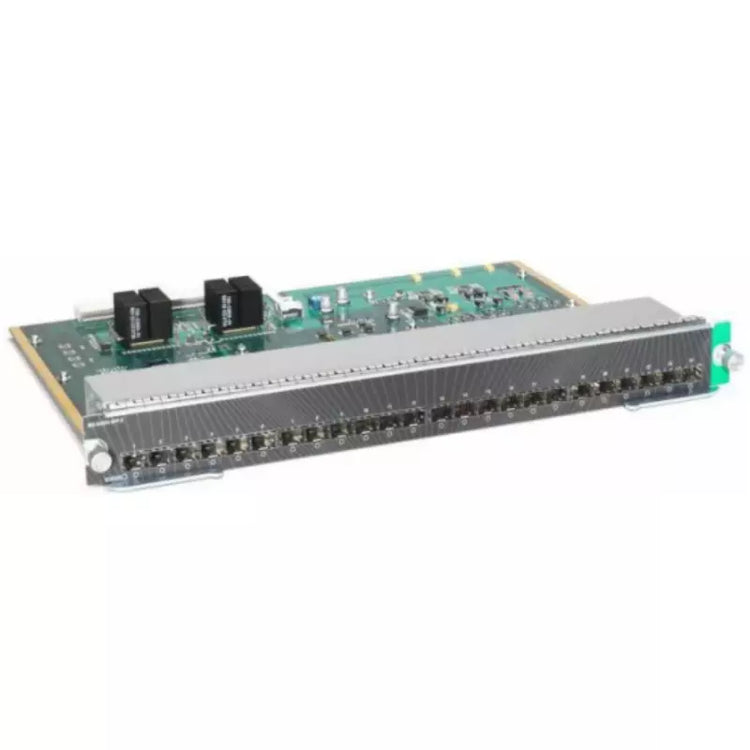

The Cisco WS-X4624-SFP-E is a Catalyst 4500 E-Series line card featuring 24 Gigabit Ethernet ports with SFP (fiber) interfaces, designed for high-performance, scalable network access in enterprise and campus environments.

Technical Specifications

Information About WS-X4624-SFP-E

The WS-X4624-SFP-E is a high-performance 24-port Gigabit Ethernet line card from Cisco's Catalyst 4500 series, specifically designed to deliver scalable and flexible network aggregation with enhanced data throughput and modular optics support for enterprise and campus network deployments.

Key Features:

• Type: Gigabit Ethernet Line Card

• Series: Cisco Catalyst 4500

• Category: Networking Hardware

• Subcategory: SFP-Based Line Card

• Functionality: Provides 24 SFP (Small Form-Factor Pluggable) ports for high-speed fiber or copper uplinks

• Port Count: 24 ports

• Port Type: SFP (modular transceiver slots)

• Data Rate: Up to 1 Gbps per port

• Compatibility: Supports a wide range of Cisco SFP modules (SX, LX/LH, ZX, BX, and others)

• Supervisor Compatibility: Requires Cisco Catalyst 4500 Series Supervisor Engine

• Backplane Capacity: Up to 48 Gbps switching capacity per slot (depending on supervisor engine used)

• Hot Swappable: Yes

• Power Consumption: Approx. 75W

• Software Support: Compatible with Cisco IOS Software

• Form Factor: Occupies one slot in Catalyst 4500 chassis

• MTBF (Mean Time Between Failures): Approx. 342,000 hours

• Operating Temperature Range: 0 °C to +40 °C

• Construction: Ruggedized design for high-density enterprise and service provider environments

• Standards Compliance: RoHS compliant, CE Marked, UL Listed

The WS-X4624-SFP-E enables flexible network design with modular SFP support, ideal for medium to large enterprise cores or distribution layers that require both fiber and copper connectivity with scalable bandwidth and reliability.
