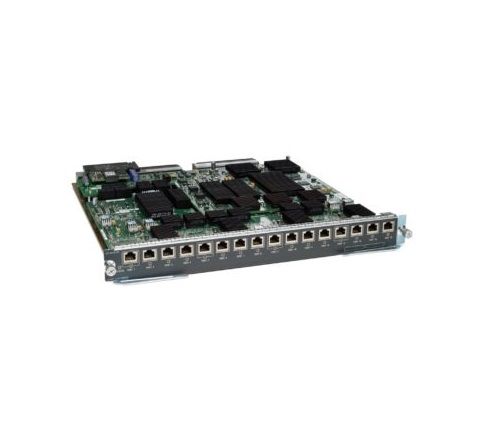

WS-X6716-10T-3C | Cisco Catalyst 6500 10 Gigabit Ethernet Module
- Regular price
- $4,399.00
- Sale price
- $4,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WS-X6716-10T-3C
Description
The Cisco WS-X6716-10T-3C is a high-density 16-port 10 Gigabit Ethernet copper module designed for the Cisco Catalyst 6500 Series switches.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Computer
|
| Part Number | WS-X6716-10T-3C |
| Subcatecory |
Networking Router
|
| Feature | 16-Port 10GbE Copper Module |
| Ports |
16 |
| Switch Fabric Connection | 40 Gbps (80 Gbps full duplex) |
| Jumbo Frame Support For Bridged And Routed Packets | Up to 9216 bytes |
| Maximum Port Density Per Chassis | 130 ports (9-slot chassis) |
| Maximum Port Density Per VSS | 260 ports |
| Onboard Memory | 1 GB default |
| Storage Temperature | –40 to 167°F (–40 to 75°C) |
| Relative Humidity | 10 to 90 percent, noncondensing |
| Agency-certified For Operation | –500 to 6500 ft (–150 to 2000m) |
| Designed And Tested For Operation | –500 to 10000 ft (–150 to 3000m) |
| Dimensions (H x W x D) | 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm) |
| Weight | 32.00 lbs |
Information About WS-X6716-10T-3C
The Cisco WS-X6716-10T-3C is a 16-port 10GBASE-T Ethernet module designed for the Cisco Catalyst 6500 Series switches. It offers high-density 10 Gigabit Ethernet connectivity over copper cabling, making it ideal for data center access and switch-to-switch connections.
Key Features:
-
Ports: 16 × 10GBASE-T (RJ-45)
-
Connector Type: RJ-45
-
Media Type Supported: Twisted Pair
-
Ethernet Technology: 10 Gigabit Ethernet
-
Network Technology: 10GBASE-T
-
Module Type: Classic Ethernet Module
-
Jumbo Frames Support: Yes
-
Hot Swappable: Yes
-
Power over Ethernet (PoE): No
-
Energy Efficient Ethernet (EEE): No
-
Dimensions: 1.2" Height × 14.4" Width × 16.0" Depth
-
Compatibility: Cisco Catalyst 6500 Series
The module includes the Distributed Forwarding Card-3C (WS-F6700-DFC3C), enhancing performance by supporting distributed forwarding. It is designed to be compatible with the Cisco Catalyst 6500 Virtual Switching System (VSS) 1440, providing scalability and redundancy in network deployments. The WS-X6716-10T-3C supports both oversubscription and performance modes, allowing flexibility in port utilization based on network requirements.
