WSRDW63542 | Eaton Arktite Receptacle W/Enclosed Disconnect Switch
- Regular price
- $3,589.00
- Sale price
- $3,589.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: WSRDW63542
Description
The Eaton Crouse-Hinds WSRDW63542 is a 60A, 3-wire, 4-pole non-fused interlocked receptacle with an enclosed disconnect switch, designed for safe and reliable power connections in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Connectors
|
| Part Number | WSRDW63542 |
| Subcategory | Electrical Plugs & Receptacles |
| Type | Grounding Style 2 Non-Fused |
|
Series |
WSRD |
| Voltage Rating | 480/600 VAC |
| Amperage Rating | 60 A |
| Horsepower | 30 hp, 50 hp |
| Number of Poles | 4 |
|
Number of Wires |
3 |
|
NEMA Rating |
NEMA 3R/12 |
| Enclosure | IP66 |
| Material |
Stamped Steel/Copper-Free Aluminum
|
| Color |
Gray/Natural
|
| Dimensions |
9 in W x 8.61 in D x 23.49 in H
|
| Weight |
14.51 kgs
|
Information About WSRDW63542

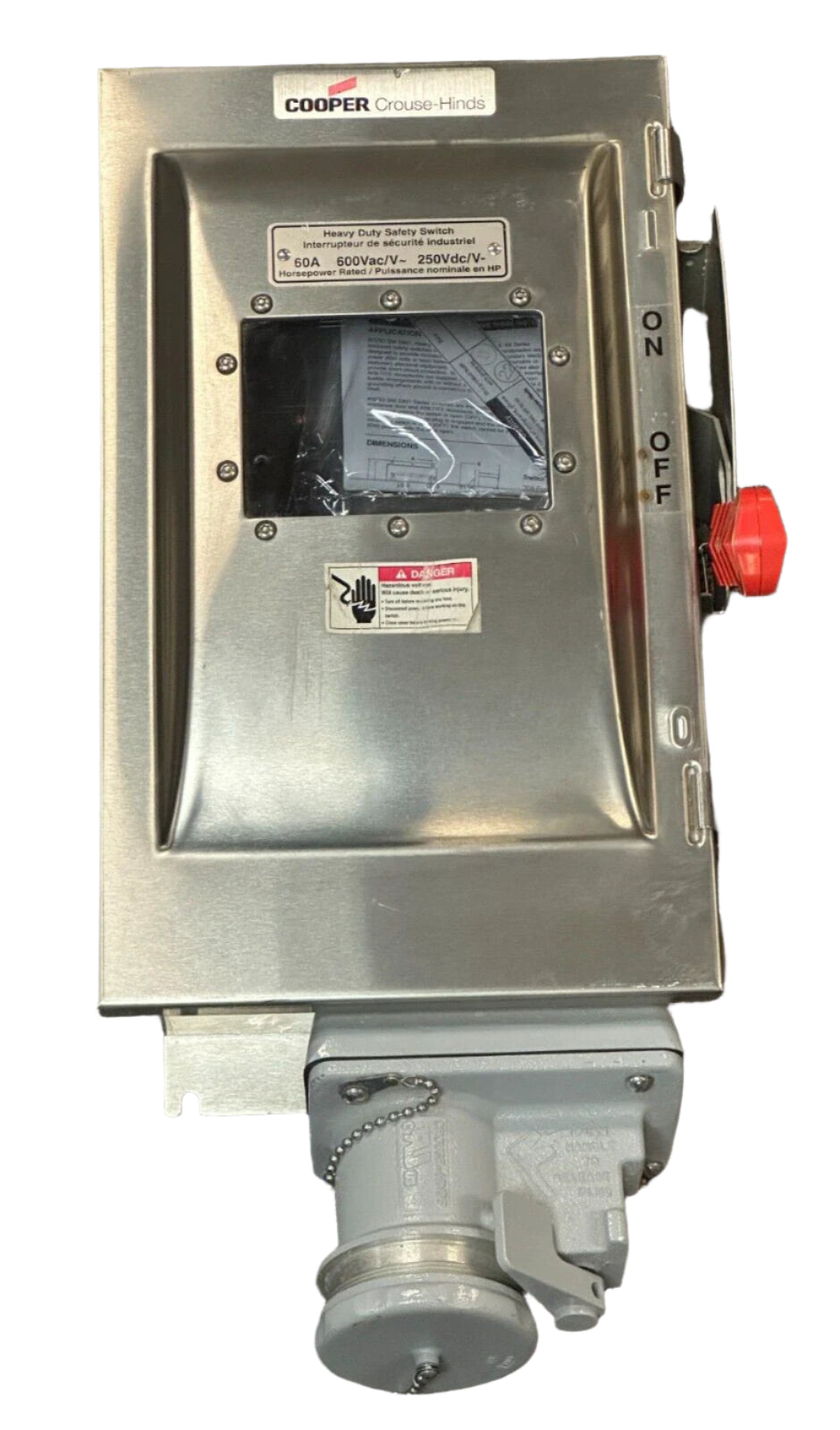

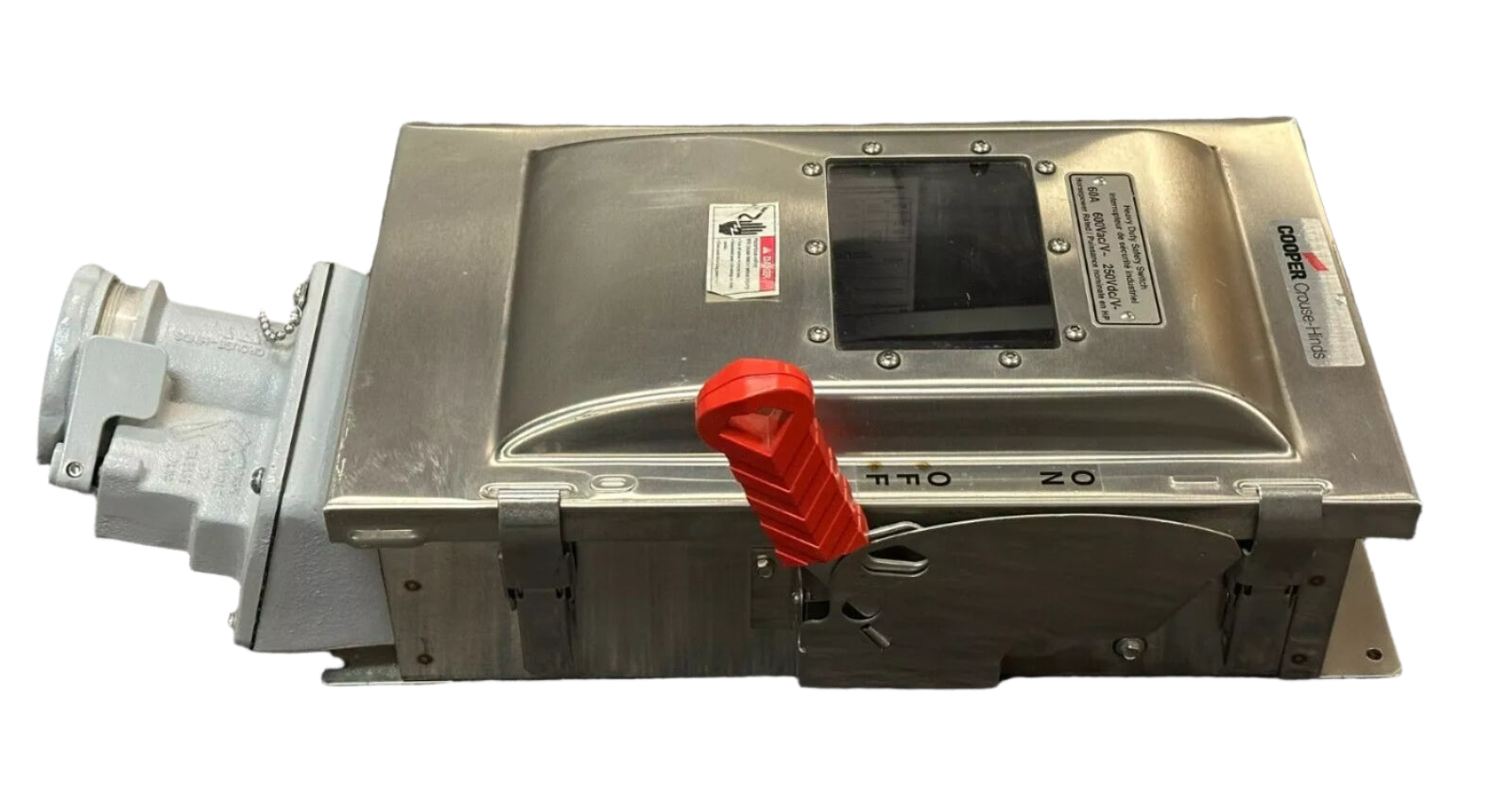

The Eaton Crouse-Hinds WSRDW63542 is a 60A, 3-wire, 4-pole non-fused interlocked receptacle with an enclosed disconnect switch, designed for safe and reliable power connections in industrial environments. It features a windowed door for visual verification of switch status, brass contacts for enhanced conductivity, and a spring-loaded receptacle door to prevent accidental disconnection under load. The enclosure is constructed from sheet steel with a copper-free aluminum receptacle housing, offering durability and corrosion resistance. With a voltage rating of 480/600 VAC and horsepower ratings up to 50 HP, this unit is suitable for various heavy-duty applications. It complies with NEMA 3R/12 standards, ensuring protection against environmental factors.
Key Features:
- Amperage Rating: 60A
- Voltage Rating: 480/600 VAC
- Configuration: 3-wire, 4-pole (Style 2 grounding)
- Enclosure Material: Sheet steel with copper-free aluminum receptacle housing
- Contact Material: Brass
- Door Style: Windowed
- Receptacle Style: Spring-loaded door
- Horsepower Ratings: Up to 50 HP
- NEMA Rating: 3R/12
- Certifications: UL Listed, cUL Certified
The WSRDW63542 provides a secure and efficient solution for power distribution in demanding industrial settings, ensuring safety and compliance with established standards.
