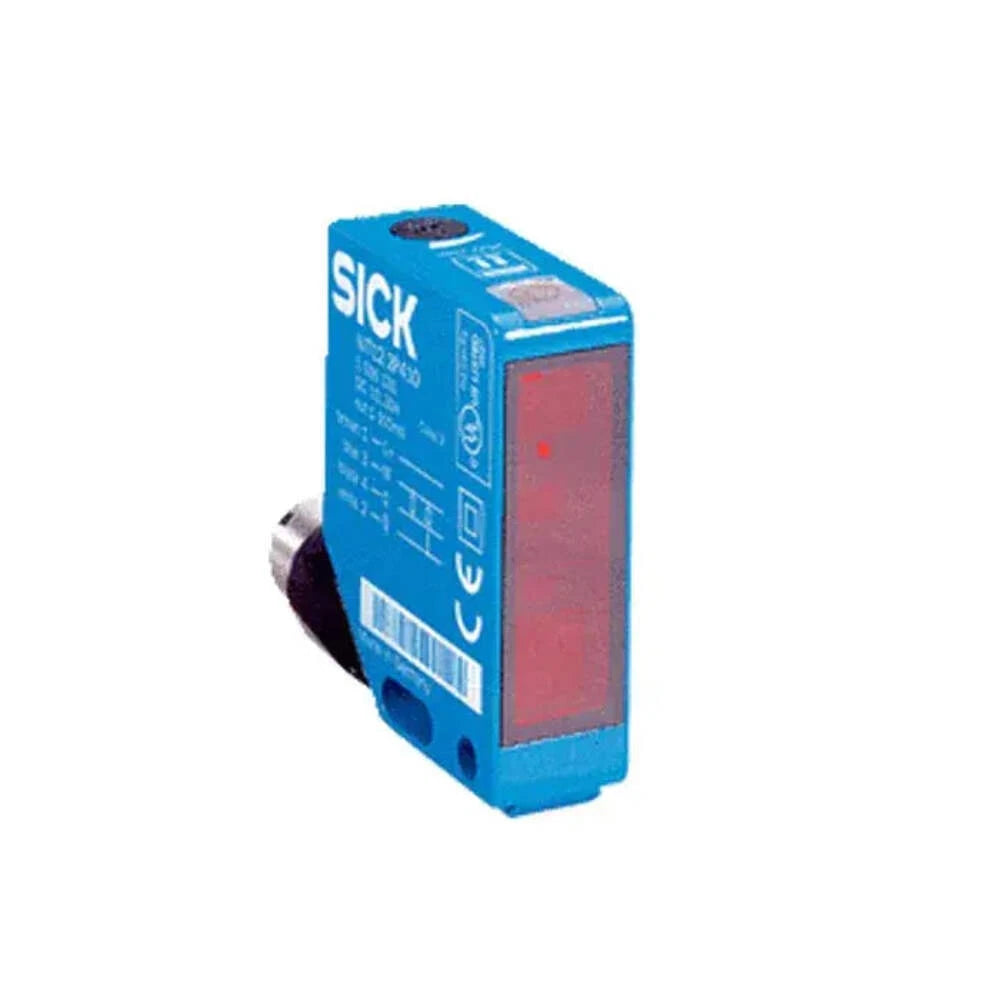

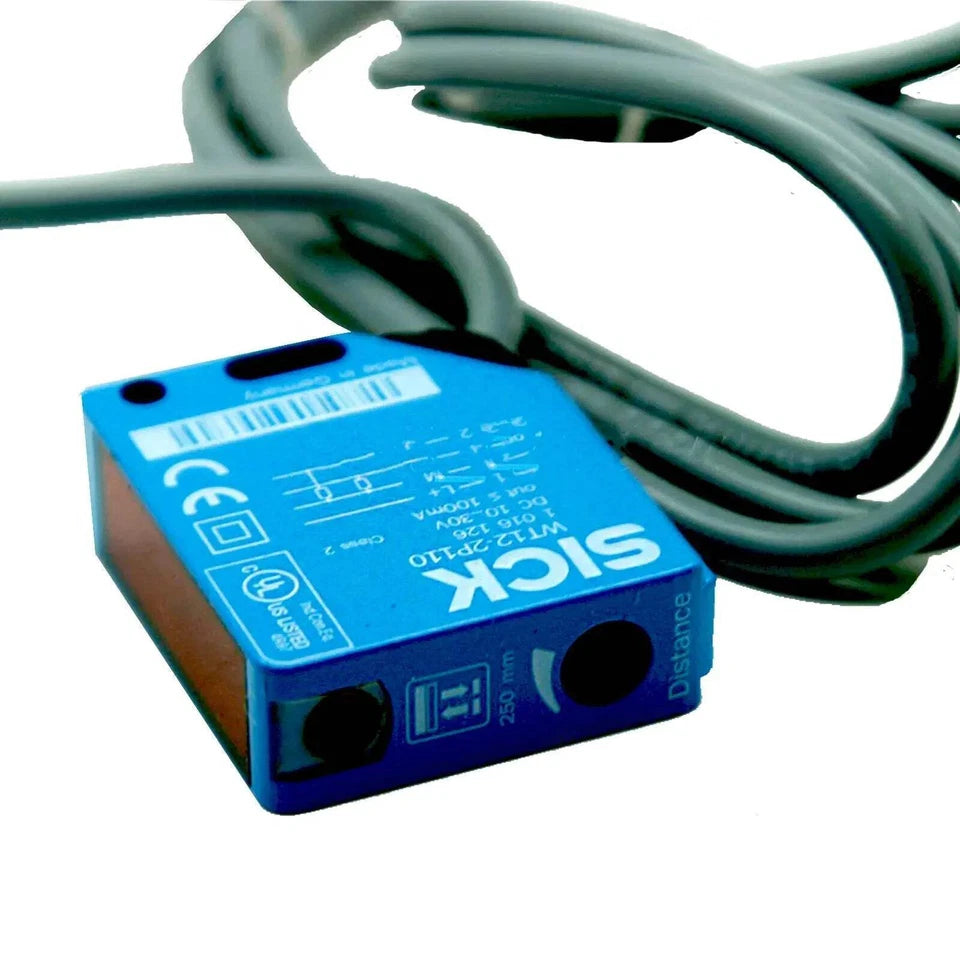

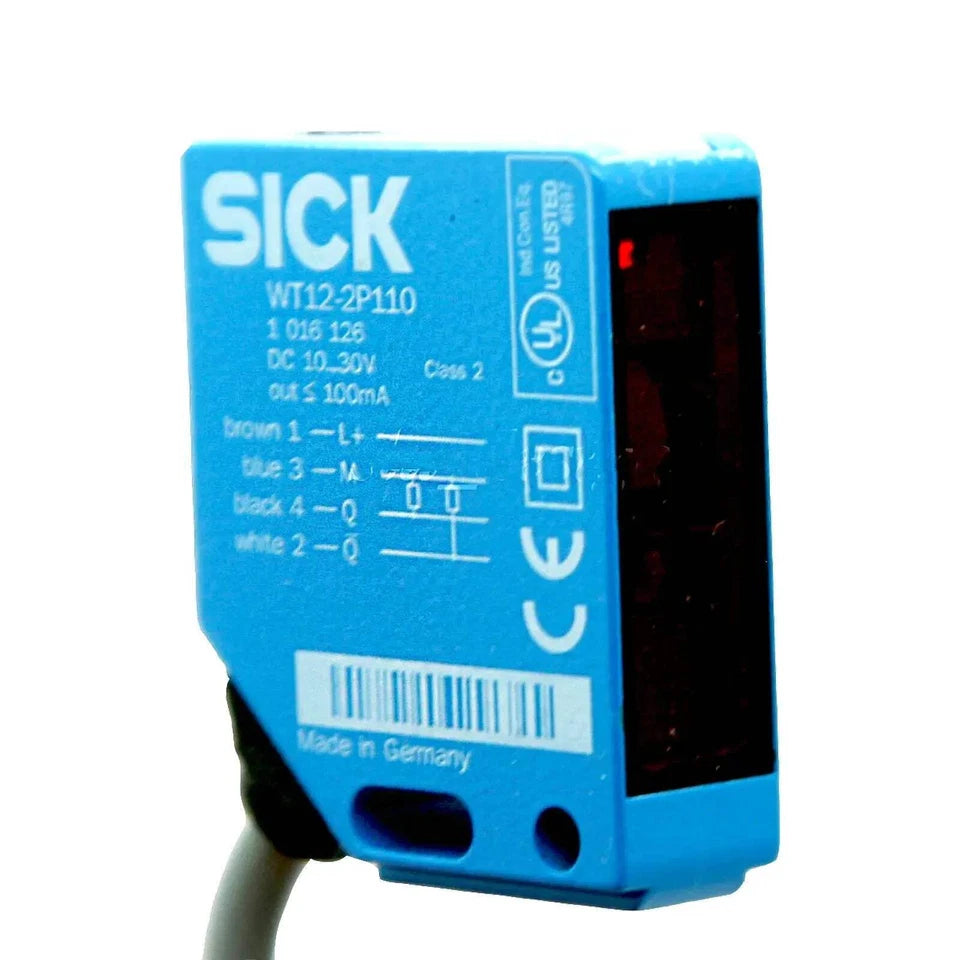

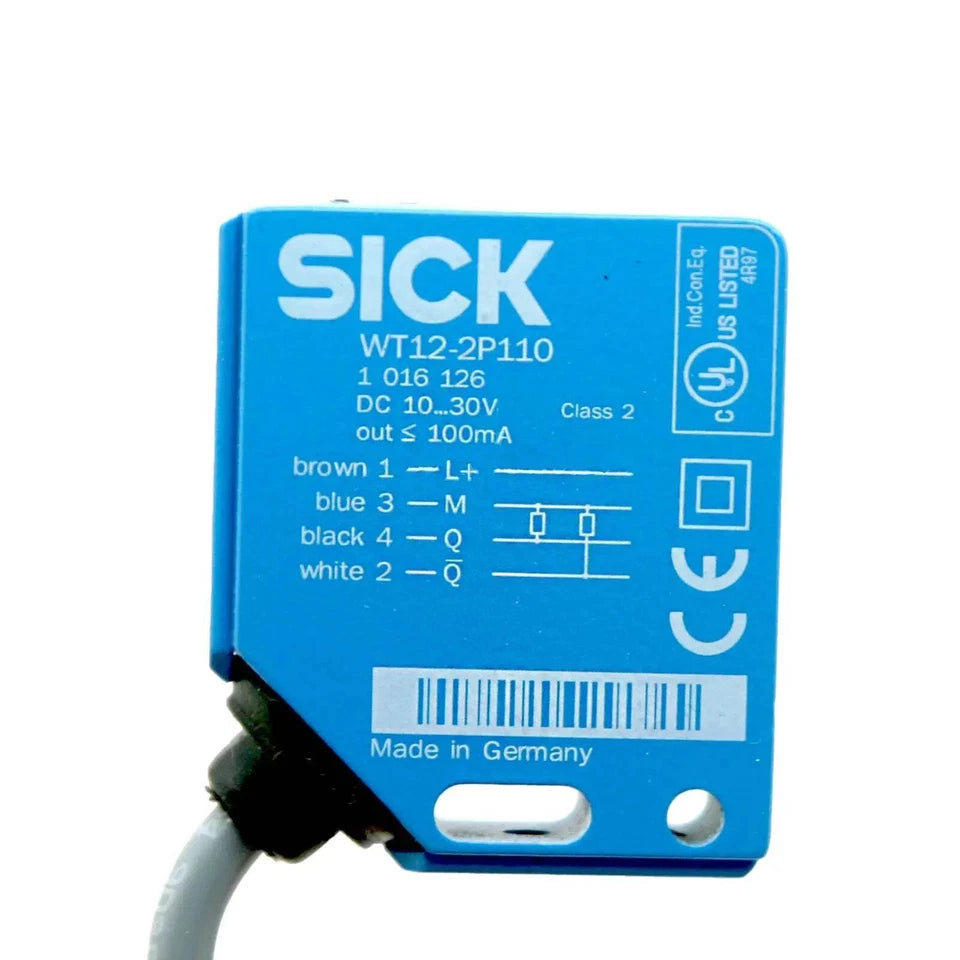

WT12-2P110 | SICK Photoelectric Proximity Sensor, PNP, Infrared, 250 mm
- Regular price
- $929.00
- Sale price
- $929.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WT12-2P110
Description
The SICK WT12-2P110 is a photoelectric proximity sensor designed for precise object detection using background suppression technology. This sensor operates with infrared light and a PNP switching output to deliver reliable detection across short sensing distances. It is engineered for durable performance in industrial automation environments requiring accurate, non-contact sensing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Sensors |
| Part Number | WT12-2P110 |
| Subcategory | Photoelectric Sensors |
| Sensor Type | Photoelectric Proximity Sensor |
| Sensing Method | Background Suppression |
| Sensing Range | 20 mm to 250 mm |
| Light Source | Infrared LED |
| Switching Output | PNP |
| Switching Mode | Light / Dark Switching |
| Response Time | ≤ 330 µs |
| Supply Voltage | 10–30 VDC |
| Power Consumption | 40 mA |
| Connection Type | Fixed Cable |
| Cable Length | 2 m |
| Housing Material | Zinc Die-Cast Metal |
| Optics Material | PMMA Plastic |
| Enclosure Rating | IP69K |
| Dimensions (W × H × D) | 15 × 49 × 41.5 mm |
| Weight | 0.33 lbs (approx.) |
Information About WT12-2P110
The WT12-2P110 is part of SICK’s WT12 photoelectric sensor series, developed for compact installations with high detection accuracy. It uses background suppression to reliably distinguish target objects from reflective or distant backgrounds. The sensor features a robust metal housing with zinc die-cast construction and an IP69K enclosure rating for harsh industrial conditions. Designed for easy integration, it includes a 2 m fixed cable connection and adjustable sensitivity via a potentiometer.
Key Features:
- Background Suppression Sensing: Ensures accurate detection independent of background surfaces.
- Infrared LED Light Source: Provides stable and consistent optical performance.
- Short-Range Detection Capability: Supports sensing distances from 20 mm to 250 mm.
- PNP Switching Output: Compatible with standard industrial PLC and control inputs.
- Fast Response Time: ≤ 330 µs for reliable detection in dynamic applications.
- Rugged Metal Housing: Zinc die-cast construction with IP69K protection for harsh environments.
- Integrated Sensitivity Adjustment: Potentiometer allows fine-tuning for application-specific needs.
The WT12-2P110 delivers the reliability and precision required for background-suppressed photoelectric proximity detection in industrial automation systems.
