WT12L-2B530A01 | SICK Laser Photoelectric Proximity Sensor 30–200 mm
- Regular price
- $1,129.00
- Sale price
- $1,129.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WT12L-2B530A01
Description

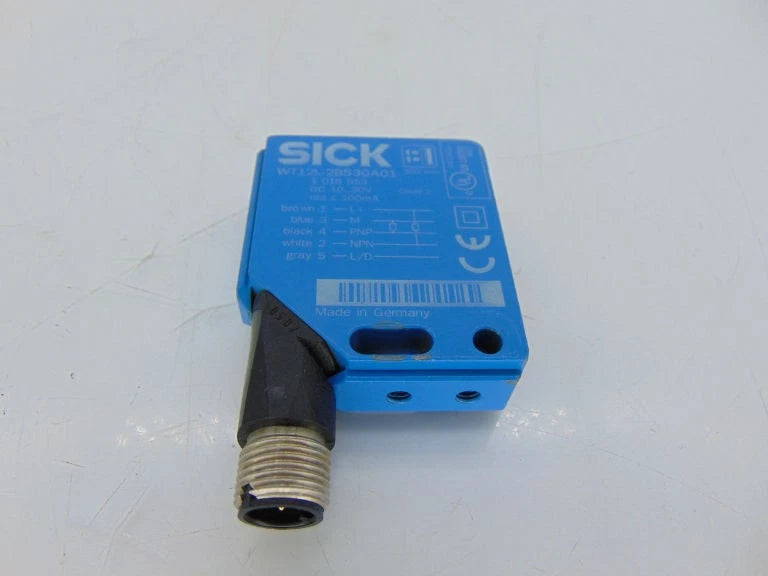

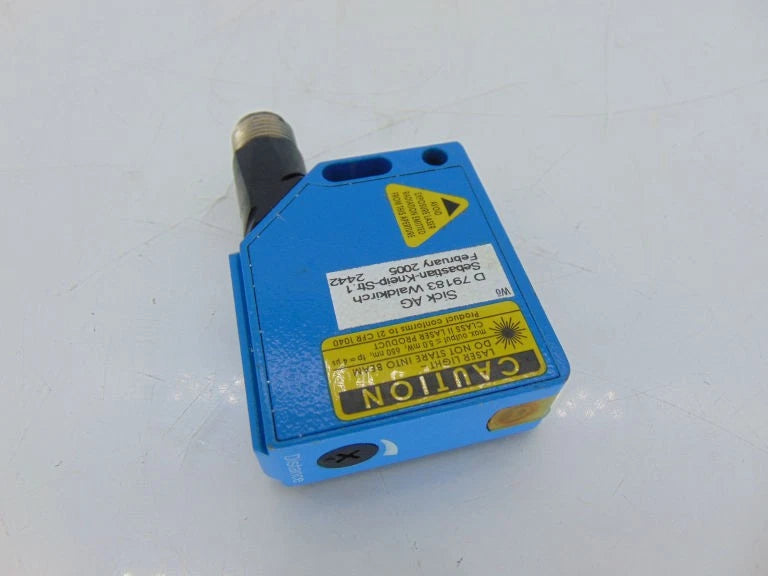

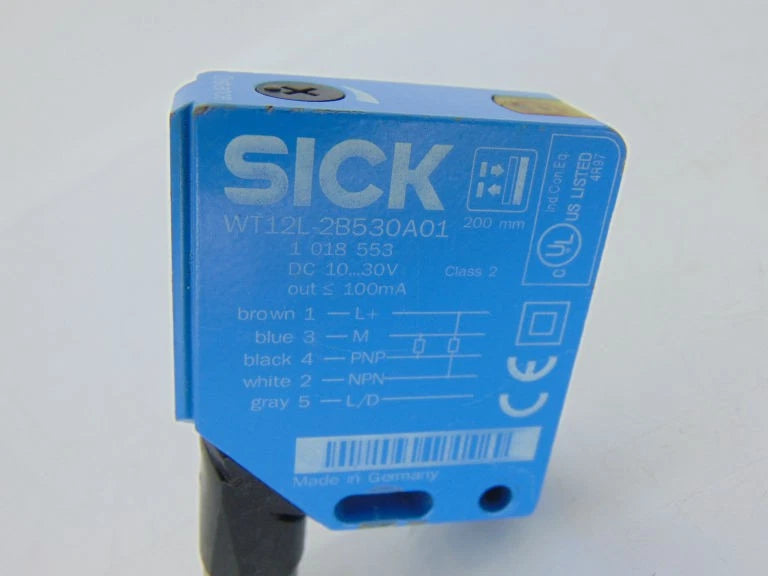

The SICK WT12L-2B530A01 is a high-precision photoelectric proximity sensor designed to detect objects within a 30–200 mm range using a focused red laser beam. Its compact rectangular housing with a 5-pin M12 connector supports both PNP and NPN logic outputs for versatile control system integration. This sensor is typically used in automated industrial applications where precise object detection and background suppression are critical.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | WT12L-2B530A01 |
| Subcategory | Photoelectric |
| Product Type | Photoelectric proximity sensor |
| Sensor Series | W12-2 Laser |
| Functional Principle | Background suppression photoelectric |
| Sensing Range | 30 mm … 200 mm |
| Light Source | Red laser, 650 nm |
| Laser Class | Class 2 (EN/IEC 60825-1) |
| Logic Outputs | PNP / NPN |
| Switching Modes | Light switching, Dark switching |
| Supply Voltage | 10 VDC … 30 VDC |
| Current Consumption | ~55 mA |
| Switching Frequency | Up to ~2,500 Hz |
| Connection Type | M12, 5-pin male |
| Enclosure Rating | IP67 / IP69K |
| Ambient Temp (Op.) | –10 °C … +50 °C |
| Housing Material | Metal with PMMA front screen |
| Weight | 0.25 lbs |
Information About WT12L-2B530A01
The WT12L-2B530A01 is part of SICK’s W12-2 Laser series of small photoelectric proximity sensors, engineered for reliable object detection in demanding industrial environments. It is built with a laser light source and background suppression technology, allowing it to detect objects at distances up to 200 mm with a tightly focused spot (~0.1 mm at 45 mm). The unit supports selectable PNP/NPN outputs as well as light and dark switching modes to match different logic requirements. With rugged IP67/69K protection and metal/plastic housing, it is suitable for use on production lines, packaging machines, material handling systems, and other automation equipment.
Key Features:
- Photoelectric Proximity Detection: Uses optical sensing to reliably detect object presence within the sensing range.
- Background Suppression: Designed to ignore background surfaces while accurately detecting target objects.
- Laser Light Source: Visible red laser light provides a precise, small spot for high repeatability.
- Wide Detection Range: Detects objects from 30 mm to 200 mm depending on reflectivity.
- Selectable Logic Outputs: Supports both PNP and NPN outputs for flexible integration.
- Switching Modes: Light and dark switching options accommodate diverse sensing conditions.
- Industrial Protection Rating: IP67 and IP69K ratings for resistance to dust, water, and washdown environments.
The WT12L-2B530A01 delivers the reliability and precision required for robust object detection in automated sensing and positioning systems.
