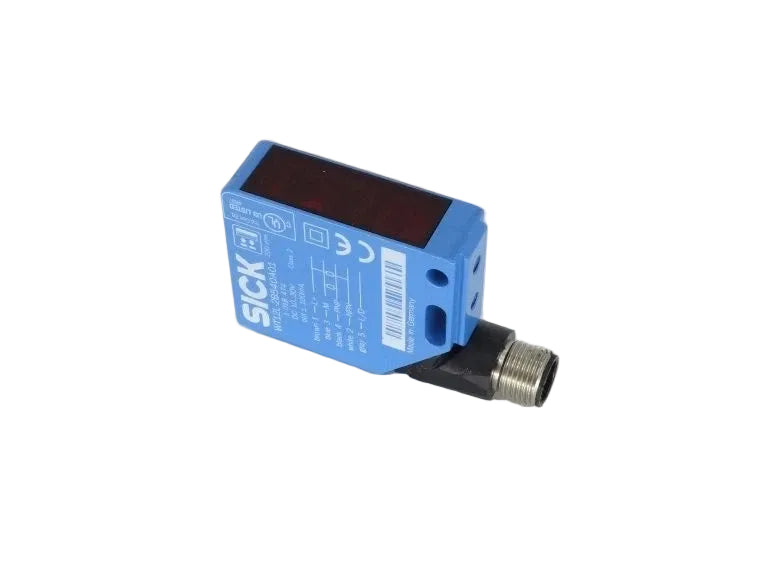

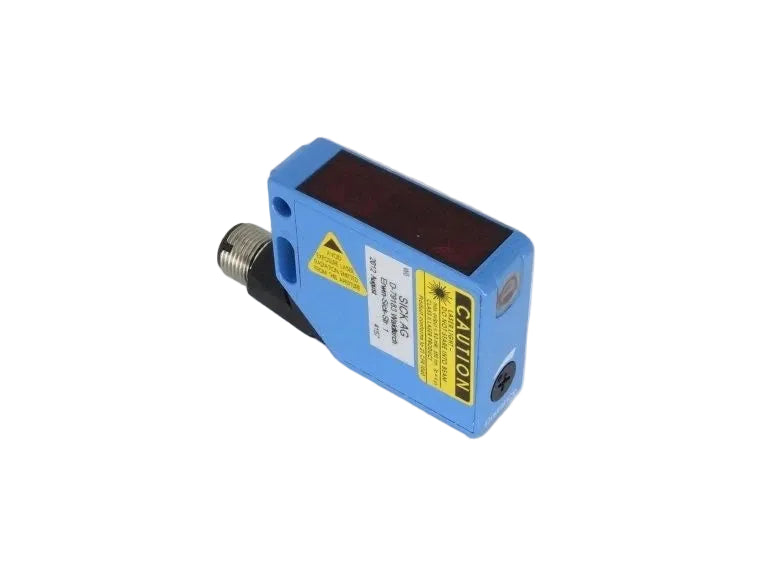

WT12L-2B540A01 | SICK Photoelectric Proximity Sensor BGS Laser 30–200 MM
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WT12L-2B540A01
Description
The SICK WT12L-2B540A01 is a laser-based photoelectric proximity sensor with background suppression designed for precise detection of small objects. It operates within a 30 mm to 200 mm sensing range and supports high-speed detection in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors |
| Part Number | WT12L-2B540A01 |
| Subcategory | Photoelectric Sensors |
| Series | W12 Series |
| Sensor Type | Photoelectric Proximity Sensor |
| Functional Principle | Background Suppression (BGS) |
| Sensing Mode | Autocollimation |
| Sensing Range | 30 mm to 200 mm |
| Maximum Sensing Range | 30 mm to 200 mm |
| Light Source | Laser |
| Light Type | Visible red light |
| Wavelength | 650 nm |
| Laser Class | Class 2 (EN / IEC 60825-1) |
| Light Spot Size | Ø 0.2 mm at 80 mm |
| Focus Position | 80 mm |
| Output Type | PNP / NPN, Light-On / Dark-On |
| Output Current | 100 mA |
| Switching Frequency | 2.5 kHz |
| Supply Voltage | 10–30 VDC |
| Power Consumption | 55 mA |
| Adjustment Method | Potentiometer |
| Connection Type | M12 connector |
| Housing Material | Metal |
| Special Features | American version |
| Special Applications | Small object detection, high-speed objects |
| Numeric ID | 3882615 |
| Weight | 130 g |
Information About WT12L-2B540A01
The WT12L-2B540A01 is part of the SICK W12 series, developed for high-precision object detection where background suppression is critical. This sensor uses a visible red laser light source with a very small light spot to reliably detect tiny objects and sharply defined edges. Its autocollimation sensing principle ensures stable detection even at high object speeds and varying surface reflectivity. The rugged metal housing and standard M12 connector support reliable operation in demanding industrial environments.
Key Features
- Laser-Based Background Suppression: Precisely detects objects while reliably ignoring backgrounds beyond the set sensing distance.
- Fine Light Spot Geometry: Produces a Ø 0.2 mm spot at the focal point, supporting detection of very small or thin objects.
- High-Speed Switching Performance: Operates at up to 2.5 kHz for accurate detection in fast-moving production processes.
- Wide Output Flexibility: Supports both PNP and NPN outputs with light-on and dark-on switching logic.
- Adjustable Sensitivity Control: Uses a potentiometer for precise tuning of detection thresholds.
- Robust Metal Housing: Provides durability and resistance to mechanical stress in industrial installations.
- Extended Voltage Compatibility: Operates on 10–30 VDC for easy integration into standard control systems.
The WT12L-2B540A01 delivers the reliability and precision required for detecting small, fast-moving objects in advanced industrial automation applications.
