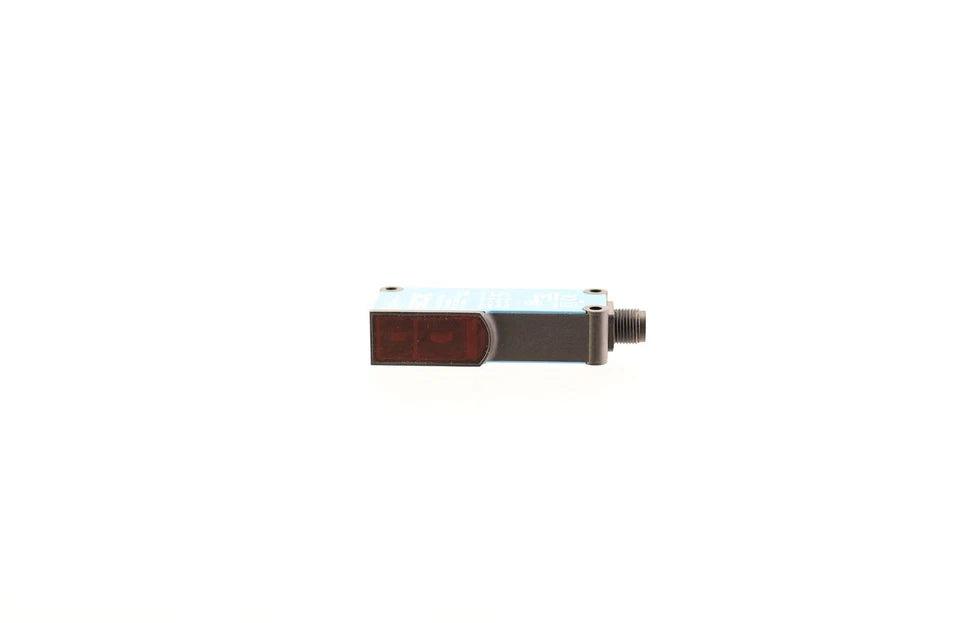

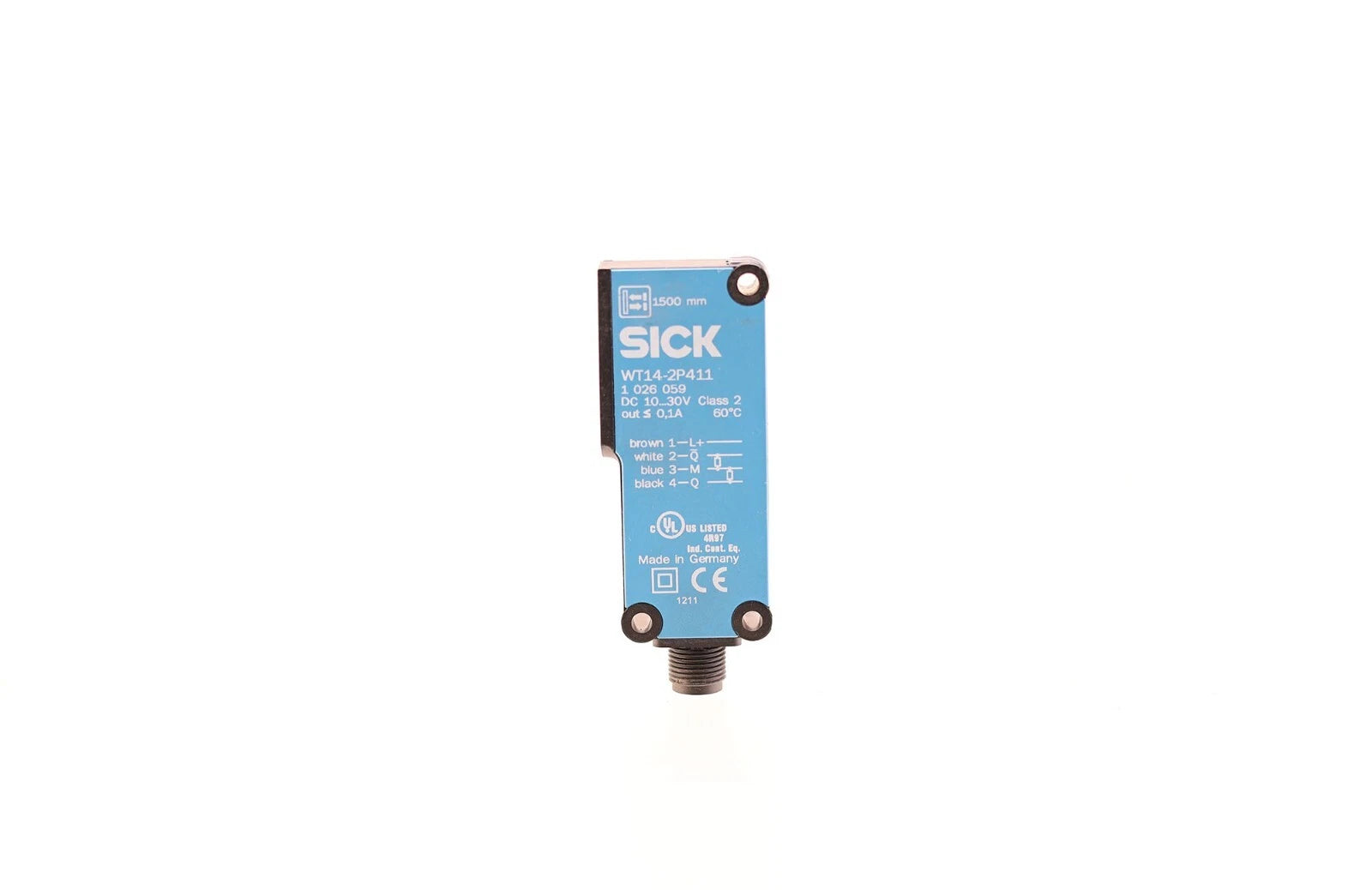

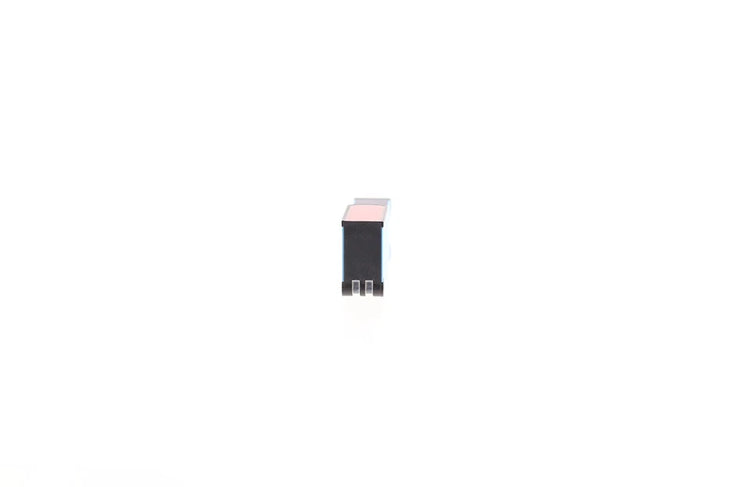

WT14-2P411 | SICK Photoelectric Proximity Sensor with PNP Output and Long Range Detection
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WT14-2P411
Description
The SICK WT14-2P411 is an industrial photoelectric proximity sensor designed to detect objects within a long sensing range using infrared light. This rugged sensor delivers reliable light/dark switching performance and is suited for object presence detection in automated material handling and industrial systems. Its compact rectangular housing and teach-in adjustment make it versatile for integration in factory environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Part Number | WT14-2P411 |
| Category | Sensors & Switches |
| Subcategory | Photoelectric Sensors |
| Sensor Principle | Photoelectric proximity, energetic |
| Sensing Range | Approx. 300 mm … 1,500 mm |
| Light Source | Infrared LED |
| Wave Length | 870 nm |
| Supply Voltage | 10 V DC … 30 V DC |
| Current Consumption | ≤ 55 mA |
| Output Type | PNP complementary |
| Switching Mode | Light/dark switching |
| Response Time | ≤ 2.5 ms |
| Switching Frequency | 200 Hz |
| Connection | M12, 4-pin male connector |
| Housing Material | Plastic (ABS) |
| Enclosure Rating | IP67 |
| Weight | 0.33 Ibs |
Information About WT14-2P411
The WT14-2P411 is a member of SICK’s W14 series of small photoelectric sensors featuring energetic (diffuse) detection technology. It uses an infrared LED light source and offers a typical sensing range from approximately 300 mm up to 1,500 mm, depending on object reflectivity. The sensor is powered from 10–30 V DC and provides a PNP complementary output with light/dark switching logic compatible with standard industrial control systems. Built with robust ABS housing and an IP67 rating, the sensor withstands harsh operating conditions and supports adjustable detection using a single teach-in button.
Key Features:
- Sensor Type: Photoelectric proximity sensor: Energetic diffuse detection using reflected infrared light.
- Long Sensing Range: Up to 1,500 mm: Capable of detecting objects across extended distances.
- Output Configuration: PNP complementary: Light/dark switching output compatible with PLCs and control modules.
- Power Supply: 10–30 V DC: Standard industrial DC power range.
- Response Performance: ≤ 2.5 ms response time: Suitable for medium-speed automation tasks.
- Switching Frequency: 200 Hz: Enables rapid detection cycles.
- Connection Interface: M12, 4-pin male connector: Industry-standard electrical connection.
- Environmental Protection: IP67 rated enclosure: Dust-tight and water resistant for industrial environments.
The WT14-2P411 delivers the reliability and precision required for robust object detection in automated material handling, packaging, and production line monitoring applications.
