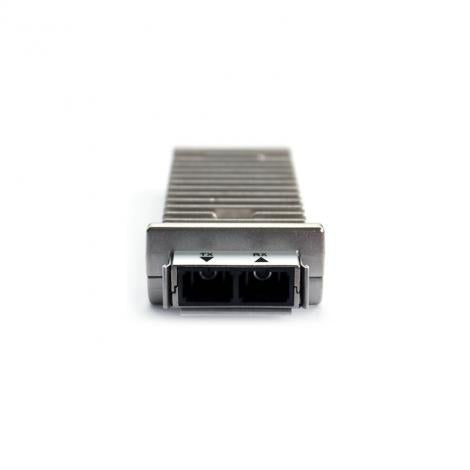

X2-10GB-ZR | Cisco 10GBASE-ZR DOM Duplex SC SMF Optical Transceiver Module
- Regular price
- $1,849.00
- Sale price
- $1,849.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: X2-10GB-ZR
Description
The Cisco X2-10GB-ZR is a high-performance 10GBASE-ZR optical transceiver module designed for long-distance single-mode fiber (SMF) communication.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Optical Transceivers
|
| Part Number | X2-10GB-ZR |
| Subcatecory |
10G Long-Range X2 Modules
|
|
Form Factor
|
X2 |
|
Interface Connector
|
SC Duplex |
|
Max Data Rate
|
10 Gbps |
|
Wavelength
|
1550 nm |
|
Optical Component
|
EML laser |
|
Transmission Distance
|
Up to 80 km |
|
TX Power
|
0 to 4 dBm |
|
Receiver Sensitivity
|
< -24 dBm |
|
Operating Temperature
|
0°C to 70°C (32°F to 158°F) |
|
Dimensions (H x W x D)
|
1.4 x 3.6 x 0.5 in |
|
Weight
|
300 g |
Information About X2-10GB-ZR
The X2-10GB-ZR transceiver operates at a wavelength of 1550nm and uses an EML laser to transmit data over SMF cabling. It is compliant with the X2 form factor and features a duplex SC connector, supporting digital optical monitoring (DOM) to track parameters such as temperature, voltage, and optical power in real time.
Key Features:
- Type: 10GBASE-ZR long-range optical transceiver module
- Form Factor: X2 standard for Cisco-compatible systems
- Connector Interface: Duplex SC for SMF deployments
- Max Data Rate: 10 Gbps high-speed transmission
- Wavelength: 1550nm for long-range transmission
- Optical Components: EML laser for signal clarity over distance
- Distance Support: Up to 80 km over single-mode fiber
- Digital Optical Monitoring: Supported for real-time diagnostics
- TX Power: 0 to 4 dBm ensures strong signal output
- Receiver Sensitivity: Less than -24 dBm for reliable long-distance reception
- Operating Temperature Range: 0°C to 70°C for commercial-grade environments
- Dimensions: 1.4 x 3.6 x 0.5 in for compact installation
- Application: Extends 10G links across metro or campus backbones using SMF
The X2-10GB-ZR enables 80 km long-distance 10G Ethernet connectivity with full DOM support, offering reliable integration for Cisco platforms in demanding optical network environments.
