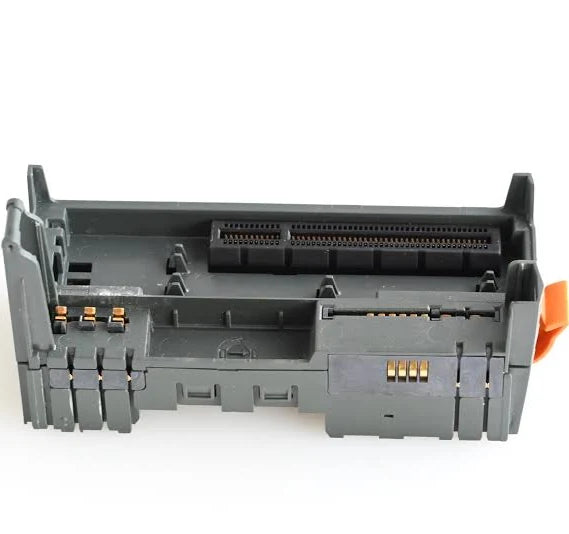

X20BB80 | B&R | Power Supply Module
- Regular price
- $284.00
- Sale price
- $284.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: X20BB80
Description
The X20BB80 is a bus base module designed for use in B&R systems, serving as both a base module and a power supply module. It includes end plates X20AC0SL1 and X20AC0SR1 for the left and right sides, respectively. The bus base accommodates various modules such as base modules (BC, HB, etc.) and supply modules. All necessary components for the left and right end cover plates are provided with the delivery of the X20BB80 module.
Technical Specifications
|
Part # |
X20BB80 |
|
Manufacturer |
B&R |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack Bus |
|
Power Dissipation |
0.25 W |
|
CE |
Yes |
|
UKCA |
Yes |
|
ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc |
|
IP20 |
Ta (see X20 user's manual) |
|
UL |
cULus E115267 Industrial control equipment |
|
HazLoc |
cCSAus 244665 Process control equipment for hazardous locations, Class I, Division 2, Groups ABCD, T5 |
|
DNV |
Temperature: B(0 to 55°C), Humidity: B(up to 100%), Vibration: B(4 g), EMC: B(bridge and open deck) |
|
LR |
ENV1 |
|
KR |
Yes |
|
ABS |
Yes |
|
BV |
EC33B, Temperature: 5 - 55°C, Vibration: 4 g, EMC: Bridge and open deck |
|
EAC |
Yes |
|
KC |
Yes |
|
Nominal Voltage |
24 VDC |
|
Permissible Contact Load |
10 A |
|
Horizontal |
Yes |
|
Vertical |
Yes |
|
0 to 2000 m |
No limitation |
|
>2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
|
Degree of Protection per EN 60529 |
IP20 |
|
Horizontal Mounting Orientation |
-25 to 60°C |
|
Vertical Mounting Orientation |
-25 to 50°C |
|
Storage |
-40 to 85°C |
|
Transport |
-40 to 85°C |
|
Operation, Storage, Transport |
5 to 95%, non-condensing |
|
Note |
Left and right X20 end cover plates included in delivery |
|
Pitch |
37.5+0.2mm |
Information About X20BB80
The X20BB80 is a base module and power supply module manufactured by B&R. It serves as a bus base for various modules, including base modules like BC and HB, as well as supply modules. The module comes with left and right end cover plates, denoted as X20AC0SL1 and X20AC0SR1, respectively, which are included in the delivery package.
Primarily designed as a bus base, the X20BB80 facilitates the connection and operation of different modules within the system. It provides the foundational structure for the integration of base and supply modules, allowing for the expansion and customization of the overall system configuration.
The inclusion of end cover plates ensures the completeness of the module setup, enhancing its functionality and providing a finished appearance. The left and right end cover plates, X20AC0SL1 and X20AC0SR1, respectively, contribute to the overall integrity of the system by enclosing and protecting the internal components.
The X20BB80 serves as a critical component in bus-based systems, offering the necessary infrastructure for the seamless operation of various modules. Its design and construction prioritize reliability and compatibility, ensuring optimal performance and interoperability with other system elements.
Manufacturer information
B&R (Bernecker & Rainer) Automation is a renowned manufacturer of industrial automation and control systems. Founded in 1979, the Austrian company specializes in innovative solutions for machine and factory automation, offering a comprehensive range of products, including programmable logic controllers (PLCs), human-machine interfaces (HMIs), and motion control systems. B&R is recognized for its cutting-edge technology, reliability, and commitment to advancing industrial automation across diverse industries.
