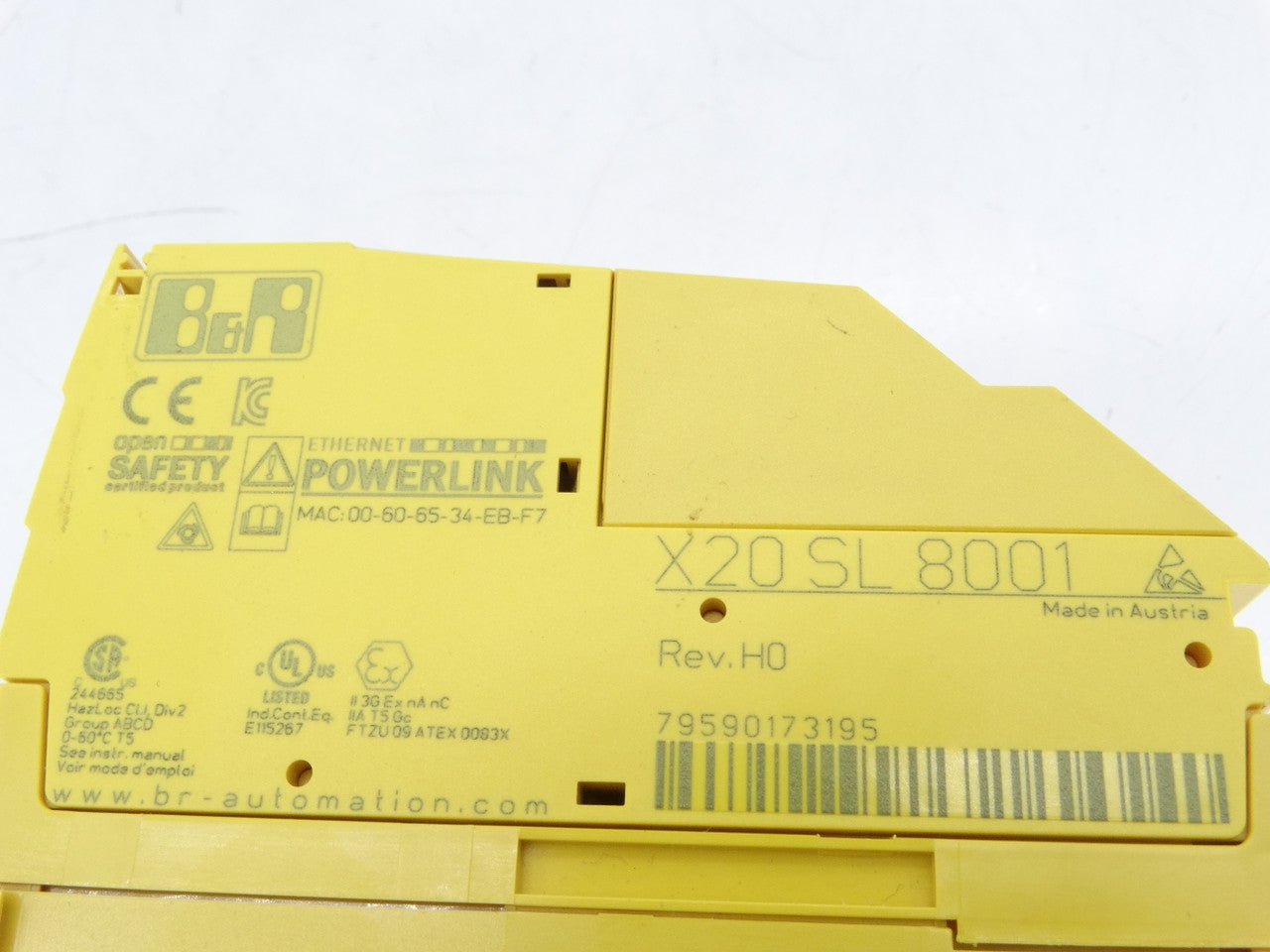

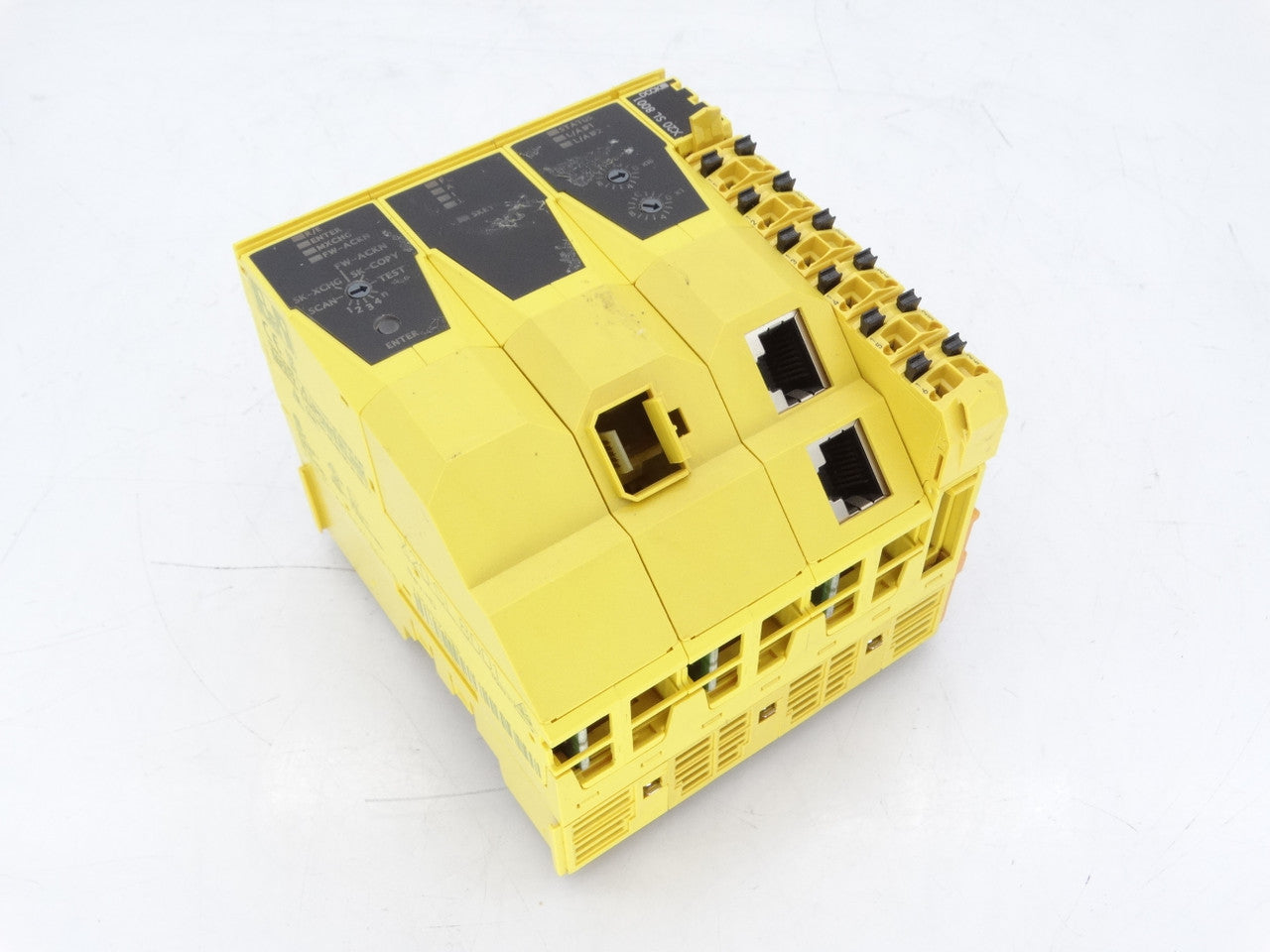

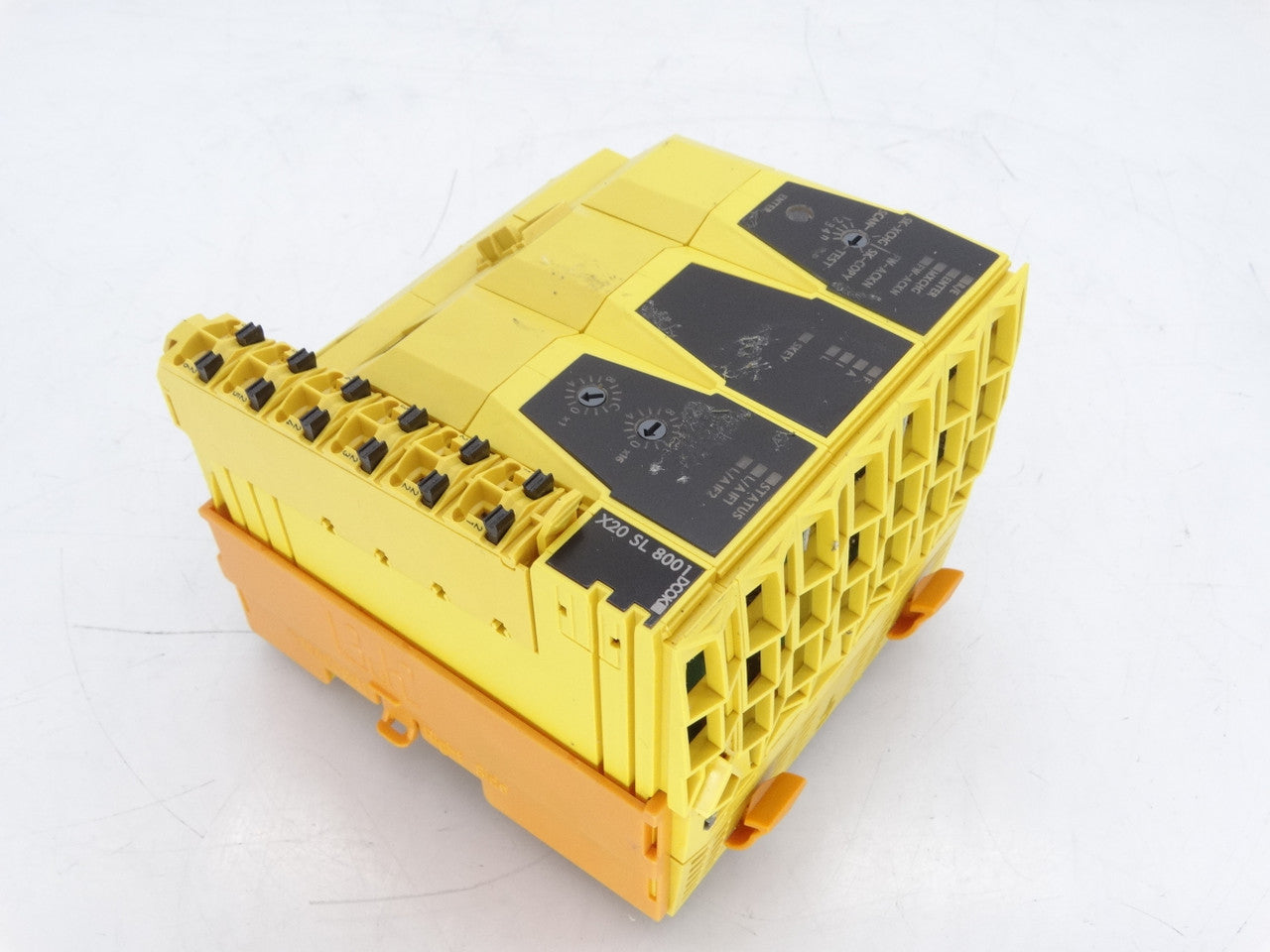

X20SL8001 | B&R Safety Controller
- Regular price
- $5,799.00
- Sale price
- $5,799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: X20SL8001
Description
The X20SL8001 is a compact and high-performance safety controller from B&R’s X20 SafeLOGIC series. It integrates seamlessly into modular automation systems, enabling safety-relevant functions according to SIL 3 and PL e. The controller supports up to 100 safety nodes via POWERLINK and features LED diagnostics for real-time system status. Certified for a wide range of industrial and hazardous environments, it ensures maximum safety and reliability.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | B&R |
| Category |
Safety & Industrial Controllers
|
| Part Number | X20SL8001 |
| Subcategory | Safety PLC / Controller |
| Product Type | Safety Controller |
| System Module | CPU |
| Fieldbus Type | POWERLINK (2x RJ45 ports, internal hub) |
| Supported Safety Nodes | Max. 100 |
| Communication w/ SafeLOGIC Units | Max. 10 units |
| Task Class Cycle Time | 1 ms |
| Nominal Voltage | 24 VDC -15% / +20% |
| Power Consumption | 5.1 W |
| Reverse Polarity Protection | Yes |
| Certifications | CE, UKCA, ATEX, SIL 3, PL e, DNV, UL, ABS, BV, etc. |
| Functional Safety Standards | IEC 61508, EN ISO 13849-1, EN 62061, IEC 61511 |
| Operating Temperature | 0–55°C (horizontal), 0–45°C (vertical) |
| Storage/Transport Temp | -25 to 70°C |
| Relative Humidity | 5–95%, non-condensing |
| Installation Altitude | 0 to 2000 m (no derating) |
| Degree of Protection | IP20 |
| Mounting Orientation | Horizontal and Vertical |
| Dimensions (W x H x D) | 87.5 × 99 × 75 mm |
| Weight | 0.64 lbs (290 g) |
Information About X20SL8001
The X20SL8001 is a B&R X20 SafeLOGIC safety controller that provides decentralized safety control functionality. It communicates via the POWERLINK fieldbus and complies with international safety standards including IEC 61508, EN ISO 13849-1, and EN 62061. Designed for use in complex automation systems, it allows free communication with up to 10 other SafeLOGIC controllers and supports machine options configuration. The controller features an internal 2-port POWERLINK hub and requires a separate SafeKEY memory module for operation.
Key Features:
- POWERLINK Connectivity: Integrated 2-port RJ45 hub for high-speed safety communication.
- Up to 100 Safety Nodes: Supports up to 100 distributed safety nodes in a single network.
- Multiple Certifications: SIL 3, PL e, Cat. 4, and compliant with ATEX, DNV, UL, ABS, and more.
- Decentralized Control: Enables communication with up to 10 SafeLOGIC controllers simultaneously.
- Built-in Diagnostics: LED indicators for CPU function, POWERLINK, and SafeKEY status.
- Fanless Operation: Reliable performance without active cooling components.
- Long Service Life: Mission time up to 20 years and MTTFD of 2500 years per channel.
The X20SL8001 delivers the safety, modularity, and network capability required for advanced industrial automation systems.
