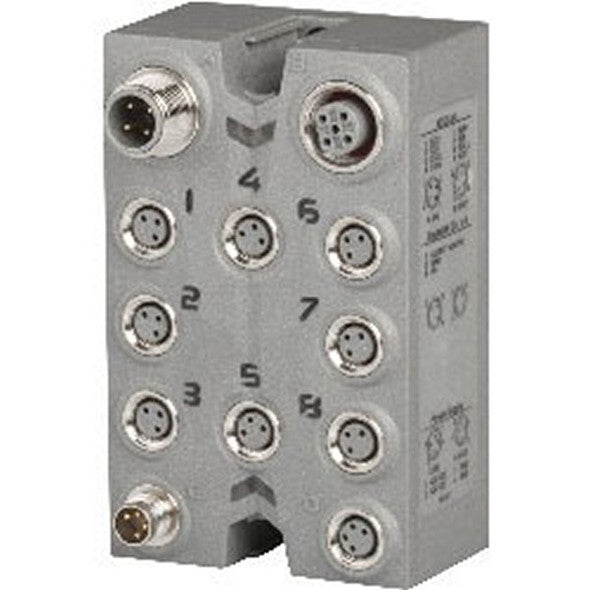

X67DM1321 | B&R 16-Channel Digital Mixed I/O Module
- Regular price
- $519.00
- Sale price
- $519.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: X67DM1321
Description
The B&R X67DM1321 is a versatile 16-channel digital mixed I/O module that provides 8 digital channels configurable as either inputs or outputs. It supports short circuit protection and offers diagnostics for each output, making it a reliable solution for industrial automation systems requiring flexibility and high performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | B&R |
| Category | PLCs and Accessories |
| Part Number |
X67DM1321 |
| Subcategory | PLC Expansion Modules |
| Insulation voltage between channel and bus | 500 V |
| Nominal voltage | 24 VDC |
| Sensor/Actuator power supply | 0.5 A summation current |
| Status indicators | I/O function per channel, supply voltage, bus function |
| Power consumption Internal I/O | 2.5 W |
| Voltage range | 18 to 30 VDC |
| Input frequency | Max. 50 kHz |
| Operation Temperature | -25 to 60°C |
| Weight | 190 g |
Information About X67DM1321
The X67DM1321 module by B&R is designed to offer flexible input/output configurations in industrial automation applications. It features 8 digital channels that can be set as either inputs or outputs through software, making it adaptable to various control tasks. This module includes 2 additional channels with counter functions and offers configurable input delays, which allows for greater precision in time-sensitive applications. With short circuit protection and single-channel diagnostics for outputs, the module ensures safety and reliability in harsh industrial environments. The module operates at 24 V DC with a power consumption of 2.5 W and supports a wide operating temperature range of -25°C to 60°C.
Key Features:
- Configurable Channels: 8 digital channels can be configured as inputs or outputs using software.
- Short Circuit Protection: Outputs are protected against short circuits for enhanced durability.
- Diagnostics: Each output includes single-channel diagnostics to ensure reliable operation.
- Input Delay Configuration: Allows for adjustable input delays for precise control.
- Counter Functions: 2 channels with counter functions for additional flexibility.
- IP67 Rating: Protection against dust and water ingress, making it suitable for harsh environments.
- Connectors: Equipped with M12 and M8 connectors for easy installation and connection.
The X67DM1321 module is designed for robust performance in industrial environments, providing flexibility and safety in automation tasks. Its wide temperature range and various connectivity options make it a reliable choice for demanding applications.
