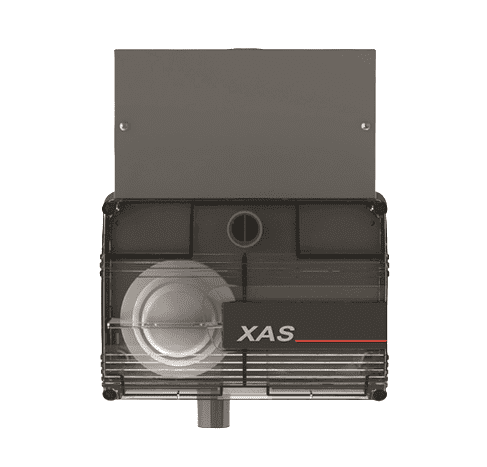

XAS-1-US | Xtralis Single-Zone Air Sampling Smoke and Heat Detector
- Regular price
- $1,177.00
- Sale price
- $1,177.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XAS-1-US
Description
The Xtralis® XAS-1-US is a single-zone air sampling heat and smoke detection unit designed for commercial and industrial environments where early and reliable detection is critical. It continuously samples air from the protected area through a network of pipes and analyzes it for smoke or heat signatures. This model provides flexible installation and dependable protection for restricted or hard-to-access spaces.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Flame Safety Products |
| Part Number | XAS-1-US |
| Subcategory | Flame Safety Detector |
| Series | Xtralis XAS Air Sampling System |
| Detection Zones | Single zone |
| Detection Method | Air sampling for smoke and heat |
| Maximum Pipe Length | 164 ft (50 m) per unit |
| Maximum Flexible Tube Length | 50 ft (15 m) |
| Aspirator Type | High-performance adjustable-speed fan |
| Airflow Monitoring | Microprocessor-controlled continuous monitoring |
| Display Interface | Integral display and programmer |
| Filter Type | Field-serviceable air filter |
| Installation Options | Wall or duct-mounted using LF42241 duct kit |
| Applications | Correctional facilities, cable tunnels, HVAC ducts, transformer vaults |
| Power Supply | 24 VDC (nominal) |
| Operating Temperature Range | 32°F to 122°F (0°C to 50°C) |
| Dimensions | 6.50 × 10.20 × 12.50 in |
| Weight | 7.27 lbs |
Information About XAS-1-US
The XAS-1-US is part of the Xtralis XAS air sampling detection series, engineered to deliver precise and flexible air sampling solutions for a variety of fire protection applications. It supports single or dual inlet configurations and can be installed outside of the protected zone for tamper-proof and maintenance-friendly operation. Equipped with a high-performance aspirator and microprocessor control, the XAS-1-US ensures consistent airflow monitoring and accurate detection. Its modular design supports multiple detection strategies, making it suitable for HVAC ducts, transformer vaults, cable tunnels, and secure facilities.
Key Features:
- Single-Zone Detection: Supports one air sampling zone for focused monitoring of specific environments.
- Flexible Piping Options: Compatible with rigid or flexible tubes for easy installation in diverse layouts.
- Microprocessor Control: Maintains precise airflow regulation and real-time diagnostics.
- High-Performance Aspirator: Ensures strong and consistent air sampling for accurate detection results.
- Integral Display and Programmer: Provides local configuration, system status, and fault indication.
- Adjustable Airflow Monitoring: Enables tuning of aspirator speed and flow thresholds.
- Field-Replaceable Air Filter: Simplifies maintenance and enhances long-term reliability.
- Duct Sampling Kit Compatibility: Integrates with LF42241 duct kits for HVAC and airflow system monitoring.
The XAS-1-US delivers the reliability and precision required for secure, continuous fire detection in complex and restricted-access installations.
