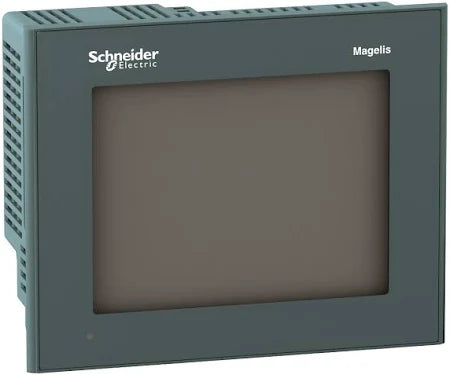

XBTGC2330T | Schneider Electric 5”7 LCD TFT Color Controller Panel
- Regular price
- $1,957.00
- Sale price
- $1,957.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XBTGC2330T
Description
The Schneider Electric XBTGC2330T is a 5.7-inch TFT color controller panel from the Magelis XBT GC range, designed for industrial automation applications. It features a 320 x 240 QVGA resolution, 16 inputs and 16 outputs, and supports multiple communication protocols, including Modbus, Modbus TCP/IP, and Uni-TE.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | HMI (Human Machine Interfaces) |
| Part Number |
XBTGC2330T |
| Subcategory | HMI Operator Interfaces |
| Backlighting | TSX Quantum Automation Systems |
| Display Colors | Color |
| Display Size | 5.7 in |
| Display Type | LCD ; TFT ; Color |
| Family Name | Harmony HMI & iPC Family |
| Mounting Type | Panel Mount |
| Pixel Count | 320 x 240 |
| Series | Harmony XBTGC Series |
| Touch panel | Analogue |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2…28.8 V |
Information About XBTGC2330T
The Schneider Electric XBTGC2330T is a small touch HMI controller designed for industrial automation, combining visualization and control functions into a compact device. It features a 5.7-inch backlit color TFT LCD display with 65,000 colors, supporting multiple character fonts, including ASCII, Kanji, Korean, Chinese, and Taiwanese. This HMI controller includes 16 inputs and 16 outputs, an application memory of 16MB, and 512KB backup data memory for reliable performance. It offers various connectivity options, including a USB port (V1.1) Type A, an Ethernet TCP/IP RJ45 port, and a COM1 serial link (RS232C/RS422/RS485) for seamless integration into industrial networks.
Key Features:
- 5.7-inch TFT color LCD display: Supports 65,000 colors with a 320 x 240 QVGA resolution.
- 16 inputs / 16 outputs: Provides enhanced control capabilities.
- Multi-protocol support: Compatible with Modbus, Modbus TCP/IP, Uni-TE, and third-party protocols.
- Memory: 16MB application memory and 512KB backup data memory.
- Multiple connectivity options: USB Type A, Ethernet RJ45, and RS232C/RS422/RS485 serial communication.
- Industrial-grade durability: IP20/IP65 and NEMA 4X rated, ensuring protection in harsh environments.
- Power supply: 24V DC with 27W power consumption.
- Compact design: 167.4mm (W) x 135mm (H) x 77.6mm (D), weighing 1kg.
- Certified for industrial use: Meets CULus, UL, CSA, IEC 61000-6-2, and EN 61131-2 standards.
With its compact yet powerful design, the XBTGC2330T offers seamless control, efficient communication, and intuitive operation. Its rugged construction and versatile connectivity make it ideal for industrial automation and monitoring applications.
Description
The Schneider Electric XBTGC2330T is a 5.7-inch TFT color controller panel from the Magelis XBT GC range, designed for industrial automation applications. It features a 320 x 240 QVGA resolution, 16 inputs and 16 outputs, and supports multiple communication protocols, including Modbus, Modbus TCP/IP, and Uni-TE.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | HMI (Human Machine Interfaces) |
| Part Number |
XBTGC2330T |
| Subcategory | HMI Operator Interfaces |
| Backlighting | TSX Quantum Automation Systems |
| Display Colors | Color |
| Display Size | 5.7 in |
| Display Type | LCD ; TFT ; Color |
| Family Name | Harmony HMI & iPC Family |
| Mounting Type | Panel Mount |
| Pixel Count | 320 x 240 |
| Series | Harmony XBTGC Series |
| Touch panel | Analogue |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2…28.8 V |
Information About XBTGC2330T
The Schneider Electric XBTGC2330T is a small touch HMI controller designed for industrial automation, combining visualization and control functions into a compact device. It features a 5.7-inch backlit color TFT LCD display with 65,000 colors, supporting multiple character fonts, including ASCII, Kanji, Korean, Chinese, and Taiwanese. This HMI controller includes 16 inputs and 16 outputs, an application memory of 16MB, and 512KB backup data memory for reliable performance. It offers various connectivity options, including a USB port (V1.1) Type A, an Ethernet TCP/IP RJ45 port, and a COM1 serial link (RS232C/RS422/RS485) for seamless integration into industrial networks.
Key Features:
- 5.7-inch TFT color LCD display: Supports 65,000 colors with a 320 x 240 QVGA resolution.
- 16 inputs / 16 outputs: Provides enhanced control capabilities.
- Multi-protocol support: Compatible with Modbus, Modbus TCP/IP, Uni-TE, and third-party protocols.
- Memory: 16MB application memory and 512KB backup data memory.
- Multiple connectivity options: USB Type A, Ethernet RJ45, and RS232C/RS422/RS485 serial communication.
- Industrial-grade durability: IP20/IP65 and NEMA 4X rated, ensuring protection in harsh environments.
- Power supply: 24V DC with 27W power consumption.
- Compact design: 167.4mm (W) x 135mm (H) x 77.6mm (D), weighing 1kg.
- Certified for industrial use: Meets CULus, UL, CSA, IEC 61000-6-2, and EN 61131-2 standards.
With its compact yet powerful design, the XBTGC2330T offers seamless control, efficient communication, and intuitive operation. Its rugged construction and versatile connectivity make it ideal for industrial automation and monitoring applications.
