Product Description P/N: XBTGT2330

Description / Specifications

Description

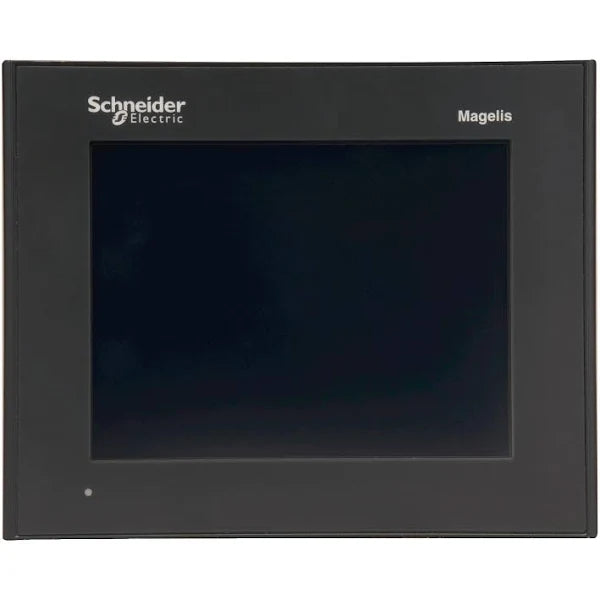

Color operator dialogue touchscreen HMI / Programmable Terminal (PT) - Schneider Electric (Magelis XBT GT) - 320x240pixels display (5.7" QVGA TFT 65K color with CFL Backlight) - IP65 / NEMA 4X - 16MB (Application) memory capacity - with Modbus + Modbus TCP/IP + Uni-TE + RS-232C + RS-485 + RS-422 communication capability - 24Vdc supply voltage - with USB 1.1 port + RJ45 ports x 2 - Flush mounting



Technical Specifications



Brand Schneider Electric
Part Number XBTGT2330
Category HMI / MMI / OIT
Subcategory Operator Interface
Type HMIs
Range of product Magelis XBTGT
Product or component type Advanced touchscreen panel
Display type Backlit colour TFT LCD
Display colour 65536 colours
Display resolution 320 x 240 pixels QVGA
Display size 5.7 inch
Software type Configuration software
Software designation Vijeo Designer
Operating system Magelis
Processor name CPU RISC
Processor frequency 133 MHz
Memory description Back up of data SRAM 512 kB lithium battery
Integrated connection type COM1 serial link male SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s
Resistance to electrostatic discharge 6 kV IEC 61000-4-2 level 3
Cut-out dimensions 156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm
Touch sensitive zone 1024 x 1024
Touch panel Analogue
Brightness 8 levels via touch panel
Character font ASCII (European characters)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)
[Us] rated supply voltage 24 V DC
Supply External source
Supply voltage limits 19.2...28.8 V
Inrush current <= 30 A
Power consumption 26 W
Local signalling 1 LED (green or orange) for normal operation or backlighting faulty
Number of pages Limited by internal memory capacity
Realtime clock Built-in
Memory type 1 slot for Compact Flash card (128 MB to 1 GB)
Use of slot For 1 fieldbus communication card (Device Net, Profibus DP)
Port Ethernet 10BASE-T/100BASE-TX
Product mounting Flush mounting
Fixing mode By 2 spring clips
By 4 screw clamps
Enclosure material PPT
Marking CE





Information About XBTGT2330

The Modicon XBT GT2330 is a Magelis XBT GT advanced touch screen panel manufactured by Schneider Electric. With an operating voltage of 24 Vdc, this HMI (human-machine interface) is in the handheld series. To learn more about the XBT GT2330 module's screen size, screen resolution, screen technology, and color as well as communication ports, see the FEATURES information listed below. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.

Features
The Magelis XBT GT2330 advanced touch screen panel has a screen size of 5.7 in. (14.4 cm) with an active display area of 4.54 x 3.40 in. The pixel resolution for this HMI is QVGA. It is a color panel with 65,536 colors. It has TFT screen technology with a CFL backlight. There are eight levels of brightness adjustment available on the touch panel. This panel does not have a video port but does come equipped with one Ethernet port. When viewed from an angle not suggested, you may notice that the LCD screen images show unevenness in their brightness. The sides of the images may appear different. You may see extended shadows or crosstalk. on the side of screen images; this is normal behavior for the XBT GT panel.

The input voltage limits for the XBT GT2330 are 19.2...28.8 Vdc with an acceptable voltage drop of ≤ 5 ms1. Power consumption for this panel is ≤ 26 W2 with an in-rush current of ≤ 30 A4. The voltage endurance between the power terminal and frame ground (FG) is 500 VAC 20 mA for 1 min. The insulation resistance between power terminal and FG is 10 MΩ or higher at 500 Vdc.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

Color operator dialogue touchscreen HMI / Programmable Terminal (PT) - Schneider Electric (Magelis XBT GT) - 320x240pixels display (5.7" QVGA TFT 65K color with CFL Backlight) - IP65 / NEMA 4X - 16MB (Application) memory capacity - with Modbus + Modbus TCP/IP + Uni-TE + RS-232C + RS-485 + RS-422 communication capability - 24Vdc supply voltage - with USB 1.1 port + RJ45 ports x 2 - Flush mounting



Technical Specifications



Brand Schneider Electric
Part Number XBTGT2330
Category HMI / MMI / OIT
Subcategory Operator Interface
Type HMIs
Range of product Magelis XBTGT
Product or component type Advanced touchscreen panel
Display type Backlit colour TFT LCD
Display colour 65536 colours
Display resolution 320 x 240 pixels QVGA
Display size 5.7 inch
Software type Configuration software
Software designation Vijeo Designer
Operating system Magelis
Processor name CPU RISC
Processor frequency 133 MHz
Memory description Back up of data SRAM 512 kB lithium battery
Integrated connection type COM1 serial link male SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s
Resistance to electrostatic discharge 6 kV IEC 61000-4-2 level 3
Cut-out dimensions 156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm
Touch sensitive zone 1024 x 1024
Touch panel Analogue
Brightness 8 levels via touch panel
Character font ASCII (European characters)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)
[Us] rated supply voltage 24 V DC
Supply External source
Supply voltage limits 19.2...28.8 V
Inrush current <= 30 A
Power consumption 26 W
Local signalling 1 LED (green or orange) for normal operation or backlighting faulty
Number of pages Limited by internal memory capacity
Realtime clock Built-in
Memory type 1 slot for Compact Flash card (128 MB to 1 GB)
Use of slot For 1 fieldbus communication card (Device Net, Profibus DP)
Port Ethernet 10BASE-T/100BASE-TX
Product mounting Flush mounting
Fixing mode By 2 spring clips
By 4 screw clamps
Enclosure material PPT
Marking CE





Information About XBTGT2330

The Modicon XBT GT2330 is a Magelis XBT GT advanced touch screen panel manufactured by Schneider Electric. With an operating voltage of 24 Vdc, this HMI (human-machine interface) is in the handheld series. To learn more about the XBT GT2330 module's screen size, screen resolution, screen technology, and color as well as communication ports, see the FEATURES information listed below. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.

Features
The Magelis XBT GT2330 advanced touch screen panel has a screen size of 5.7 in. (14.4 cm) with an active display area of 4.54 x 3.40 in. The pixel resolution for this HMI is QVGA. It is a color panel with 65,536 colors. It has TFT screen technology with a CFL backlight. There are eight levels of brightness adjustment available on the touch panel. This panel does not have a video port but does come equipped with one Ethernet port. When viewed from an angle not suggested, you may notice that the LCD screen images show unevenness in their brightness. The sides of the images may appear different. You may see extended shadows or crosstalk. on the side of screen images; this is normal behavior for the XBT GT panel.

The input voltage limits for the XBT GT2330 are 19.2...28.8 Vdc with an acceptable voltage drop of ≤ 5 ms1. Power consumption for this panel is ≤ 26 W2 with an in-rush current of ≤ 30 A4. The voltage endurance between the power terminal and frame ground (FG) is 500 VAC 20 mA for 1 min. The insulation resistance between power terminal and FG is 10 MΩ or higher at 500 Vdc.
