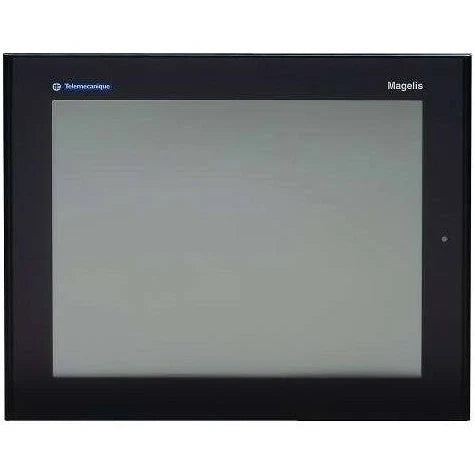

XBTGT5330 | Schneider Electric | Advanced touchscreen panel
- Regular price
- $984.00
- Sale price
- $984.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XBTGT5330
Description
Technical Specifications
Specifications
|
Part # |
XBTGT5330 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
HMI / MMI / OIT |
|
Subcategory |
Operator Interface |
|
Display Size |
10.4 inch |
|
Touchscreen Type |
TFT LCD |
|
Touchscreen Color |
Color |
|
Power Supply |
24 VDC |
|
Processor Frequency |
266 MHz |
|
Processor Type |
CPU RISC |
|
Memory |
512 KB SRAM back up of data lithium battery |
|
Application Memory |
32 MB flash EPROM application memory |
|
Touch Panel Resolution |
1024 x 1024 |
|
Touch Panel Type |
Analogue |
|
Backlight Lifespan |
54000 hours |
|
Brightness |
8 levels via touch panel |
|
Contrast |
8 levels via touch panel |
|
Rated Supply Voltage |
24 V DC |
|
Supply Source |
External source |
|
Supply Voltage Limits |
19.2…28.8 V |
|
Inrush Current |
30 A |
|
Power Consumption |
30 W |
|
Local Signaling |
For normal operation or backlighting faulty LED |
|
Software Type |
Configuration software |
|
Software Designation |
Vijeo Designer |
|
Operating System |
Harmony |
|
Number of Pages |
Limited by internal memory capacity |
Information About XBTGT5330
The advanced touchscreen panel is characterized by its backlit color TFT LCD with a resolution of 640 x 480 pixels VGA. Classified under the category of HMI / MMI / OIT, it serves as an Operator Interface with a 10.4-inch display size. The panel utilizes TFT LCD touchscreen technology, rendering images in color. It operates on a 24 VDC power supply, consuming 30 W of power.
Featuring a processor frequency of 266 MHz, the panel employs a CPU RISC processor for data processing tasks. The software associated with the panel falls under the category of configuration software, with Vijeo Designer serving as its designated software. The operating system of the panel is Harmony.
With a display size of 10.4 inches, the panel offers ample screen real estate for displaying information and interacting with users. Its TFT LCD technology ensures high-quality image rendering and vibrant color reproduction, enhancing the user experience.
Operating on a 24 VDC power supply, the panel is suitable for integration into industrial environments where DC power sources are prevalent. This power requirement makes it compatible with standard industrial power systems and facilitates seamless integration into existing setups.
The processor's frequency of 266 MHz enables efficient data processing, contributing to responsive performance and smooth operation of the panel. The RISC architecture of the processor enhances its computational efficiency and reliability.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
